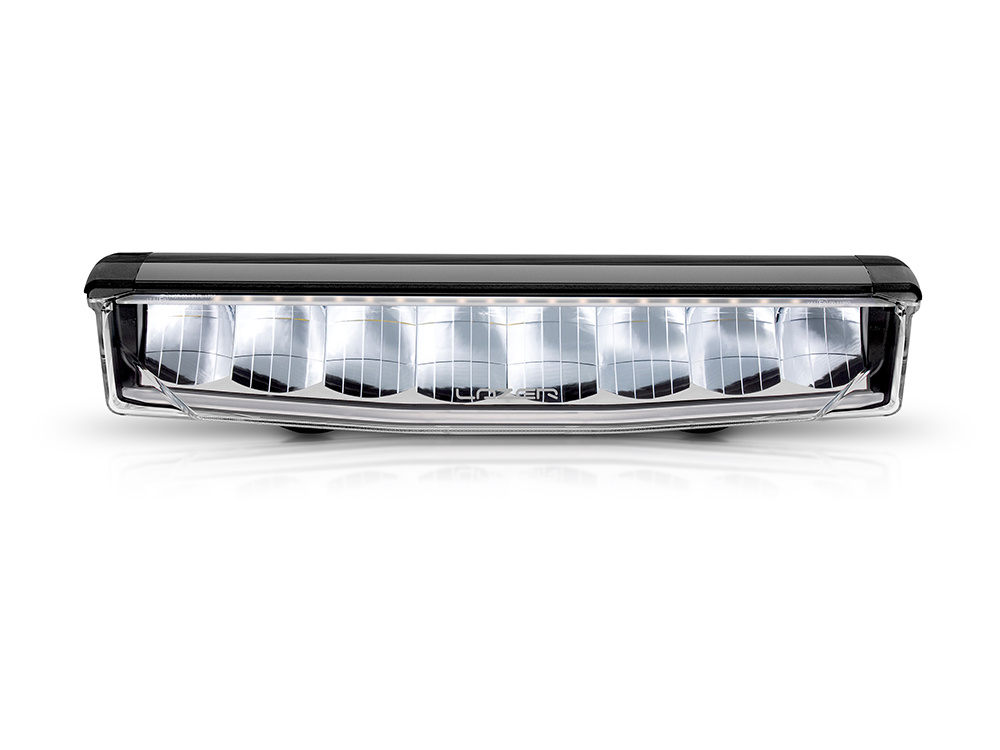

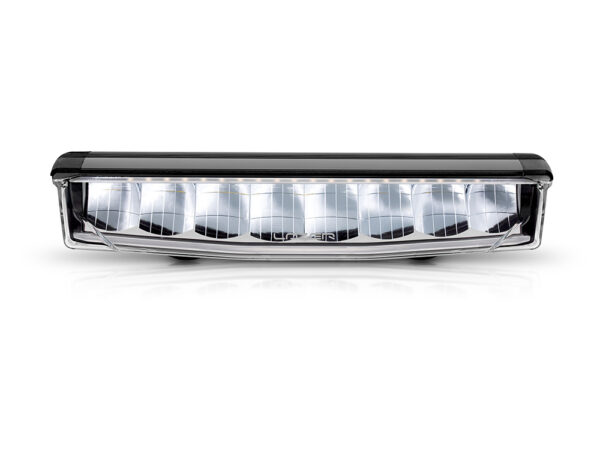

Lazer AIR-90  (With Beacon)

What's New?

• Optional dynamic start-up animation (start-up/welcome mode)

• Flash-To-Dim dual-intensity technology

• UNECE Regulation 65 (XA1) approved integrated warning light / flash function

The Lazer AIR-90 is a next-generation LED auxiliary light that combines extreme light output, modern design, and now also features a new integrated beacon warning light. This makes it the perfect lighting solution for professional transport, commercial vehicles, and heavy-duty applications – every day of the year.

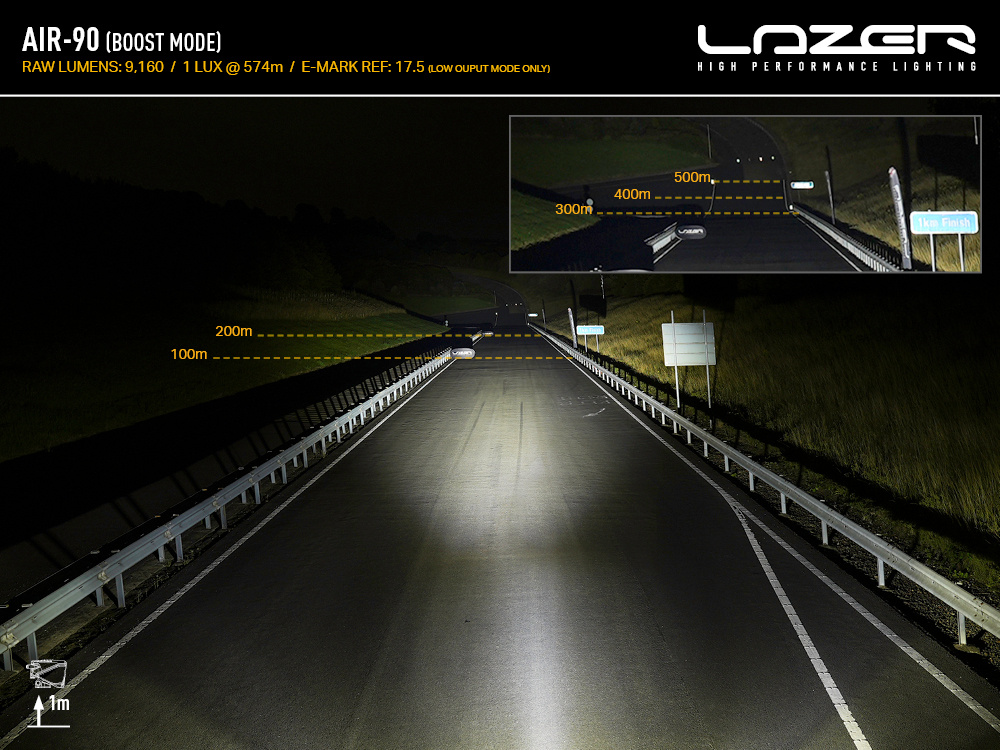

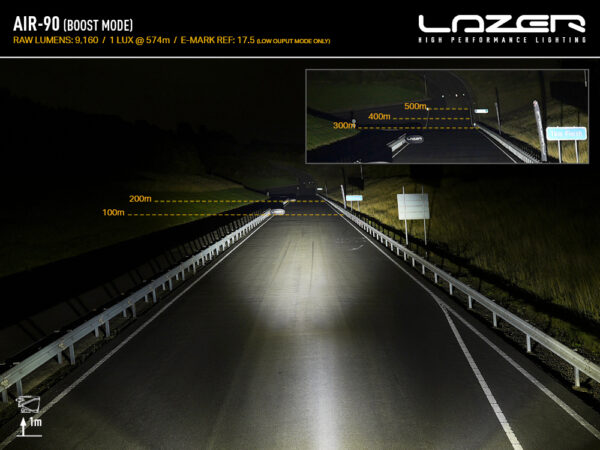

The AIR-90 delivers 9,160 raw lumens of light output and achieves 1 lux of illumination at a distance of up to 574 meters. Its optimized vertical beam pattern enhances visibility in all driving conditions. The unit is approved as a high beam according to UNECE Regulation 149 and features Lazer’s E-Boost technology, allowing operation at either full or reduced output – manually or via the Flash-to-Dim function.

•

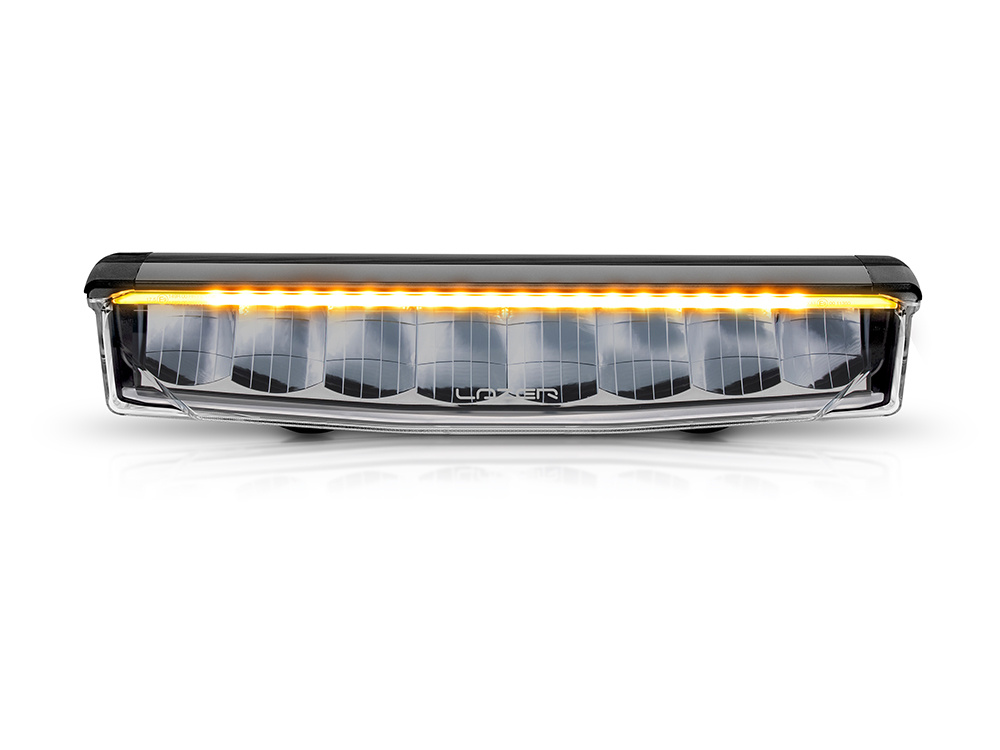

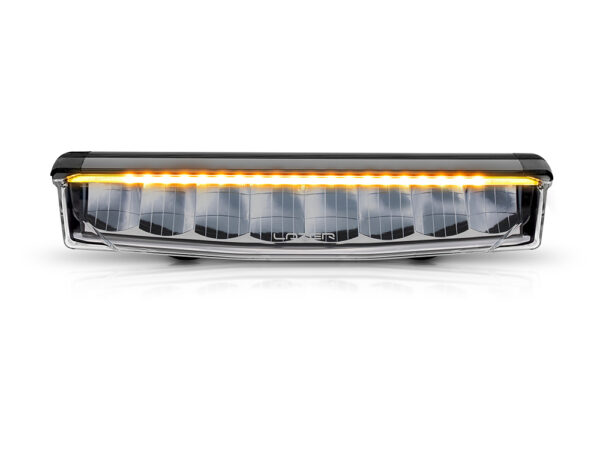

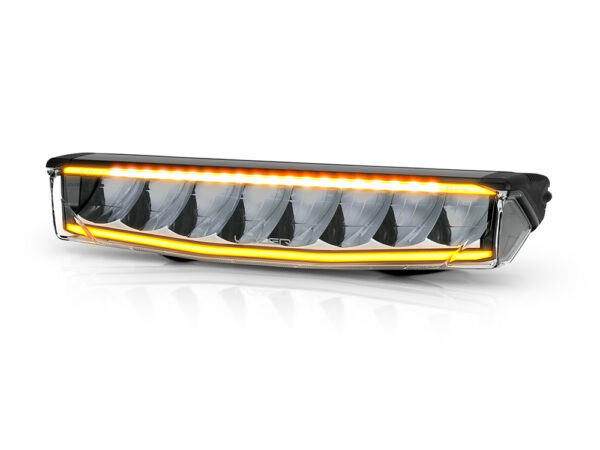

LED auxiliary light with integrated beacon warning light

The AIR-90 Beacon is approved under UNECE Regulation 65 as a narrow-beam, night-use (XA1) warning light. It offers two distinct amber flash patterns that can be synchronized across multiple units. Selection and switching between patterns is simple, either during installation or later if needed.

•

This new feature provides significant added value, especially for users who require both powerful driving light and warning light functionality in a single unit.

•

Bold styling and dual-colour position/parking light

The design of the AIR-90 stands out: the monocoque-style lens is made from durable injection-moulded polycarbonate with a hard-coated finish for enhanced longevity – backed by a lifetime warranty. The light also features a dual-colour position light (white or amber), offering added functionality especially valued in heavy-duty applications. The white light complies with UNECE Regulation 148 for road use (note: duplicating position lights is not permitted in Finland).

•

Welcome Mode – a stylish start-up function

The AIR-90 Beacon can be configured to gradually brighten at start-up or to transition in steps between white and amber light (or vice versa).

•

Clean installation – perfect for roof mounting

The AIR-90 is delivered with a Centre Mount mounting system that enables a neat and low-profile installation relative to the mounting point. This feature is especially beneficial for vehicle roof installations where maintaining a low and aerodynamic vehicle profile is important.

•

Features:

• Patent-pending injection-moulded monocoque lens with textured underside

• Use of the latest high-efficiency premium-grade LEDs

• Highly reflective vacuum-metallized optics deliver an optimized beam pattern for daily road use, even from elevated mounting positions.

• Flash-to-dim helps prevent glare from reflective surfaces like traffic signs.

• Dual output mode – high and low power settings

• UNECE Reg 149 Class B driving light, approved as a road-legal high beam (low power mode only)

• Integrated white (UNECE Reg 148 approved) or amber position light function

• Integrated amber warning beacon – UNECE Reg 65 (XA1)

• Versatile ‘Centre Mount’ bracket system enables low-profile mounting relative to the mounting point

• Dynamic start-up / welcome mode – two options, activatable as needed

• CAE-optimized cooling fin design improves thermal management

• Anodized pretreatment and vehicle-grade powder coating ensure best corrosion and chemical resistance

• Electronic thermal management

• "Shatterproof" hard-coated polycarbonate lens with lifetime warranty

• IP68 waterproof rating

• 5-year warranty

• 20 cm lamp cable with male/female 6-pin Superseal connectors

• Designed and manufactured in the UK



Technical Specifications (Boost Mode / E-Mark)

• Operating Voltage: 10–32V

• Reference Number: 17.5 (Low Power Mode)

• Rated Power: 90W / 14W

• Rated Current: 8.5A / 1.3A

• Rated Luminous Flux: 9,160 lm / 2,290 lm

• Rated Color Temperature: 5000K

• Connector: 6-pin Superseal

• Cable Length: 25 cm

• Weight: 1.65 kg

• IP Rating: IP68

• Approvals: ECE R149, ECE R148, ECE R10, ECE R65 (XA1)

• Road-use approval does not apply in E-Boost mode

• Warranty: 60 months

Dimensions:

• Width: 411 mm

• Depth: 106 mm

• Height: 82 mm

• Height with mounting bracket: 82 mm – 98 mm

Performance (Boost / E-Mark):

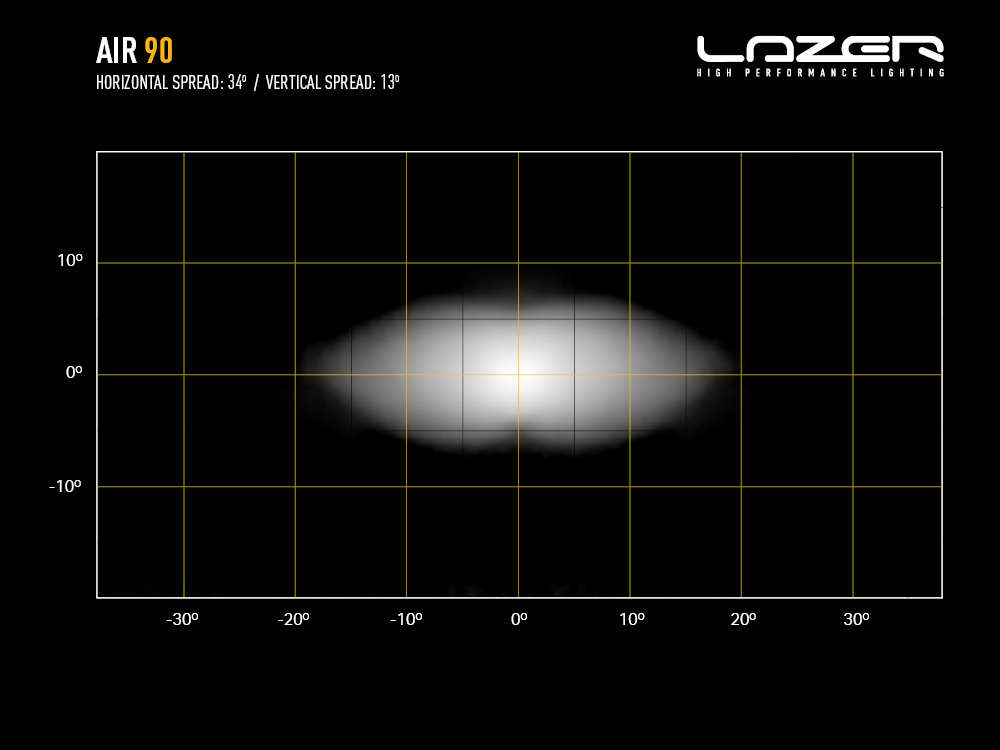

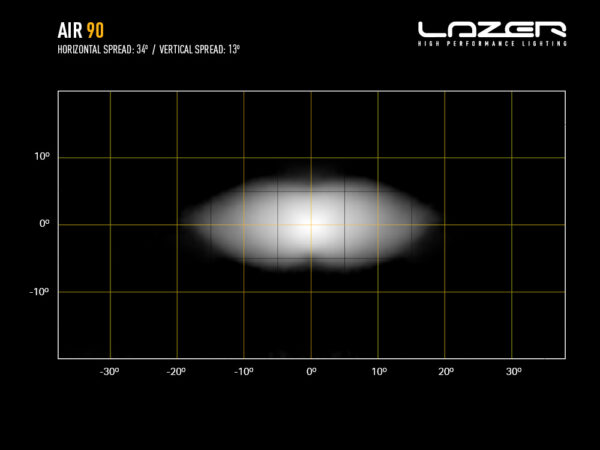

• Horizontal / Vertical beam angle: 34° / 13°

• 0.25 Lux @ 1149 m / 574 m

• 0.5 Lux @ 812 m / 406 m

• 1 Lux @ 574 m / 287 m

• 3 Lux @ 332 m / 166 m

Delivery Contents:

• Lazer AIR-90 Beacon auxiliary light

• 2x Centre mount kits

• Installation instructions
