Lazer Utility-80, Work Lamp with Wide mount
5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.
Categories:Lampslazer Lamps Work LightsWork Lights
Guaranteed Safe Checkout
The Utility-80 (Gen2) is a heavy-duty work light upgraded in 2018 that represents the very best lighting performance through greater intensity and improved spread of light, compared to all other work light solutions of a comparable size and power consumption. Only through advanced material and electronic design has it been possible to harness the light output of 4x20W LEDs in a compact unit to deliver a consistently high level of light output more akin to much larger more expensive products.
Continued advances in, and adoption of the latest, and best, LED technology means the Utility Series stands apart from other work light solutions. 80W of LED power delivers 8,820 raw lumens which is harnessed through ultra-reflective, vacuum-metallised optics designed and engineered using the most sophisticated CAD design and light simulation software available. The result – more light distributed over a bigger area; the 50 Lux line, defined in HSE guidelines as the minimum effective illumination for working outdoors at night, is achieved at 19m, and with a spread of 13m (mounted at 3m with 20 degree down angle). Furthermore the LEDs have been carefully selected for their colour temperature, proven to maximise definition while reducing fatigue and strain that can come from using higher colour ranges.

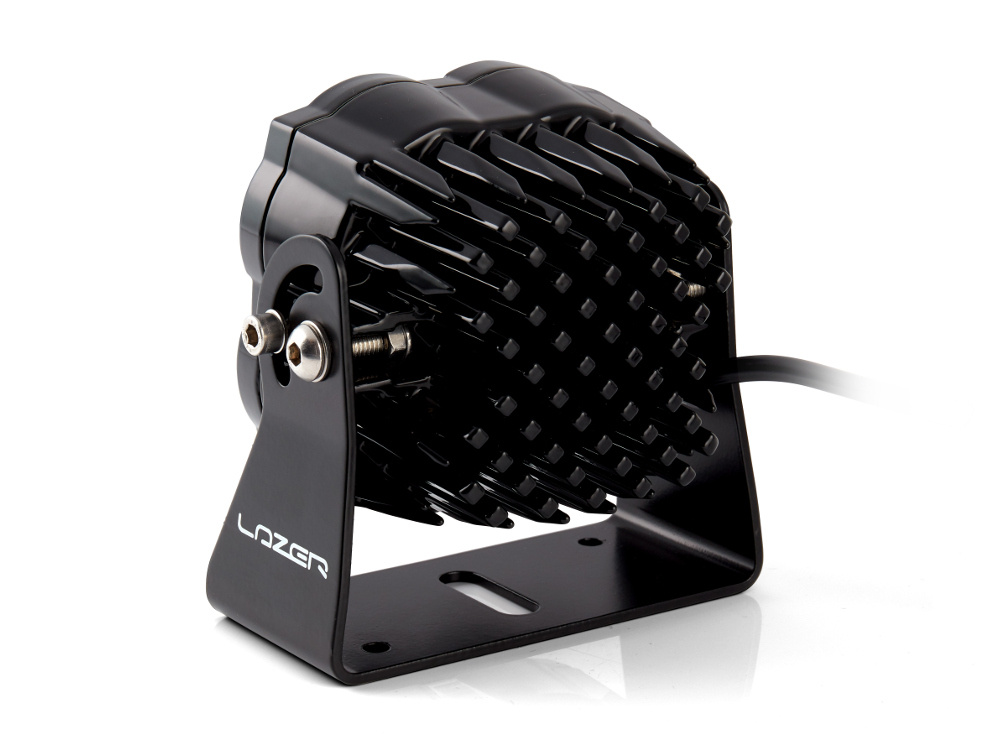

The consistently high level of light output is maintained through an innovative CAE optimised ‘Matrix’ cooling system; the increased surface area ensures heat generated during operation of the lamp is more efficiently dissipated away from the unit. This process allows the light output to be maximised for longer, simultaneously the Electronic Thermal Management system optimises light output considering the environmental and thermal conditions of the lamp.
UNECE approved Work Light (Reg 10)
High density, premium ‘bin’ LEDs
Advanced optical design delivers superior lighting performance
CAE optimised ‘Matrix’ cooling system offers improved thermal dynamics
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
EMC protected – CISPR 25: 2008 (Class 3)
Over voltage protected
Reverse polarity protected
ADR compliant versions available (does not cover vehicle side connections)
Optional Quad Core Dampening System protects against vibration (Wide Mount compatible only)
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
Supplied with pre-wired male/female 2-pin Deutsch connectors
Designed and manufactured in UK
* – 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.
Voltage Range (DC) 10-32V
LED Life 50,000 hours
Colour Temperature 5,000 Kelvin
Weight 1260 gr
HIGH BEAM FUNCTION
Total Luminous Flux 8820 Lm
Colour Temperature 5000K
Number of High Output LEDs 4
Power Consumption 80 Watts
Current Draw (at 14.4V) 5.5 Amps
Work Lamp ECE R10
IP Rating IP69K
Salt Spray Test ISO 9227 (1000H)
EMC Protection CISPR-25 (Class 3)
Vibration (BS EN 60068-2-64) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
Operating Temperature -40deg C … +90degC

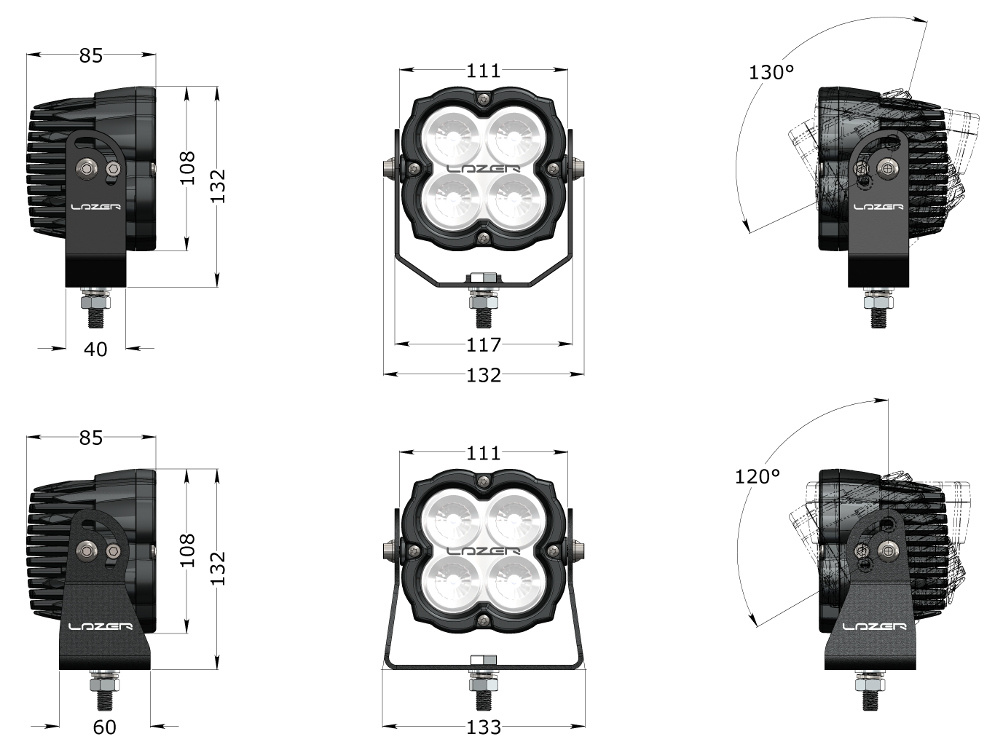

Width 110 mm
Depth 85 mm
Height 108 mm

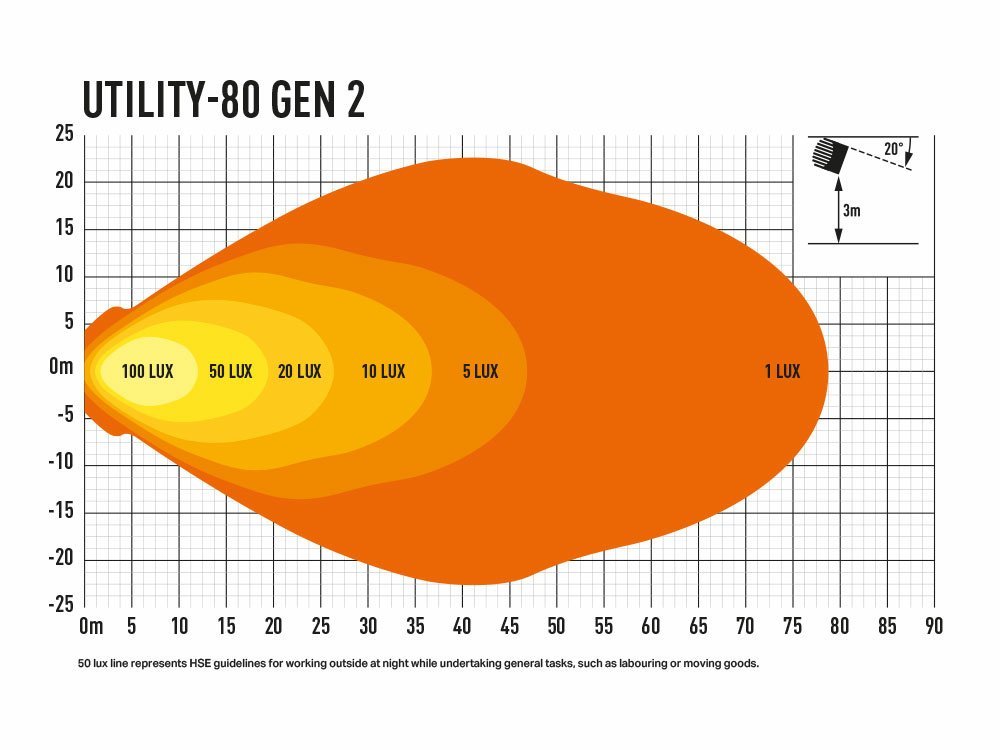

1Lx Line @ 79m
5Lx Line @ 47m
20Lx Line @ 27m
50Lx Line @ 19m*
* – 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.
Utility-80 Work Lamp
1x Wide Mount (supplied attached to lamp)
