OZZ XB1 P40″ Light Bar

Description

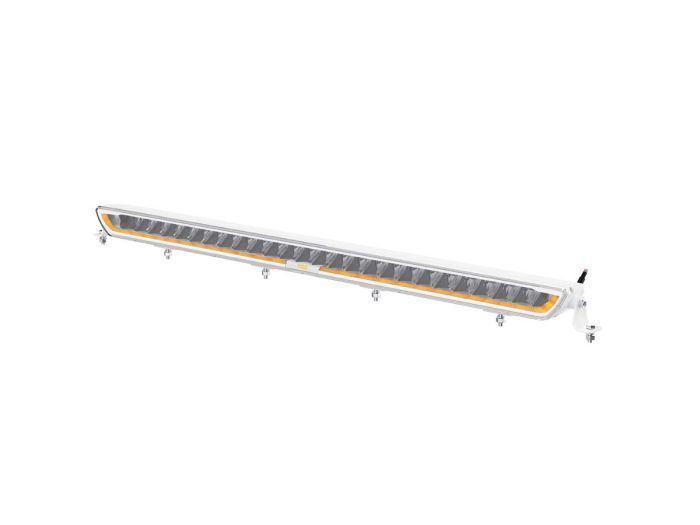

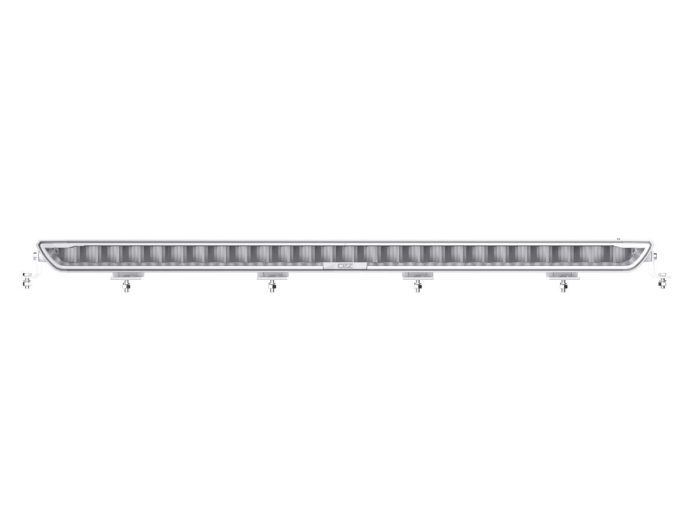

OZZ XB1 P40″ Light Bar

The OZZ XB1 P40″ LED light bar is designed to enhance your vehicle’s safety and appearance. It integrates seamlessly with OZZ’s lighting range, offering both style and functionality. The light bar features the signature OZZ dual position light with dynamic start-up in white and amber, and it is built to withstand demanding conditions with an aluminum chassis, polycarbonate lens, and stainless steel brackets.

Technical Specifications:

• Actual power:
• 12 V R112: 80 W / Boost: 198 W
• 24 V R112: 80 W / Boost: 198 W
• Theoretical luminous flux: 27,000 lm
• Measured luminous flux: R112: 10,800 lm / Boost: 16,000 lm

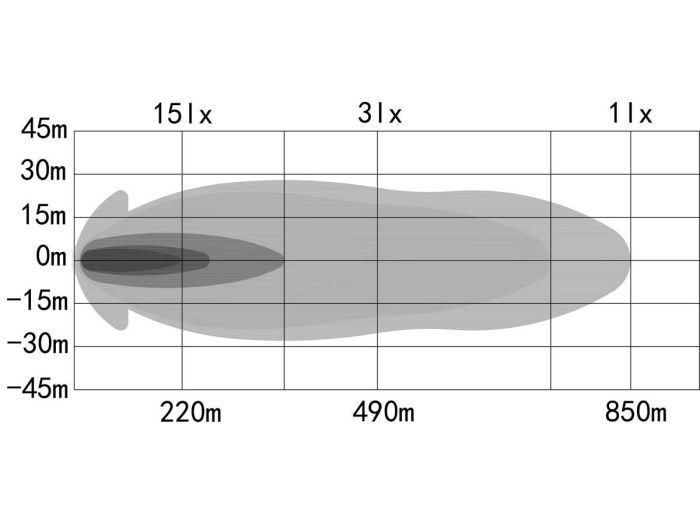

• Light output: 1 lux @ 480 m (R112) / 1 lux @ 850 m (Boost)
• Color temperature: 5000 K
• IP rating: IP68 / IP69K
• Connector and cable: 2-pin DTP connector, 2700 mm cable
• Reference number: 50
• Approvals: ECE R112 / R7 / R10

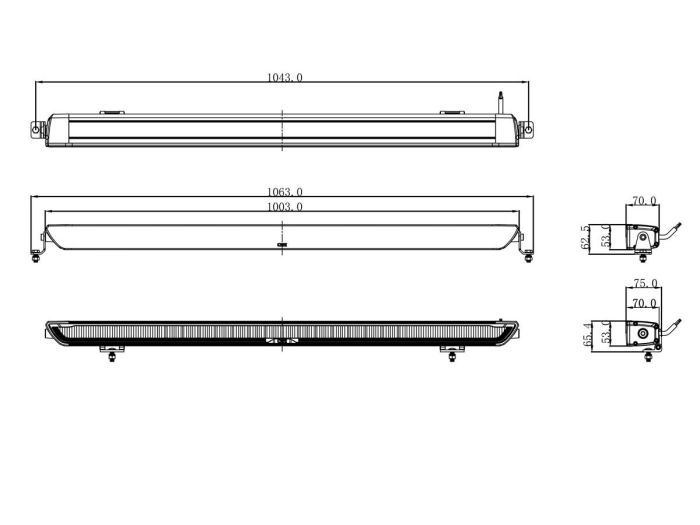

Dimensions:

• Height: 65.4 mm
• Width: 1003 mm
• Length: 1003 mm
• Depth: 70 mm
