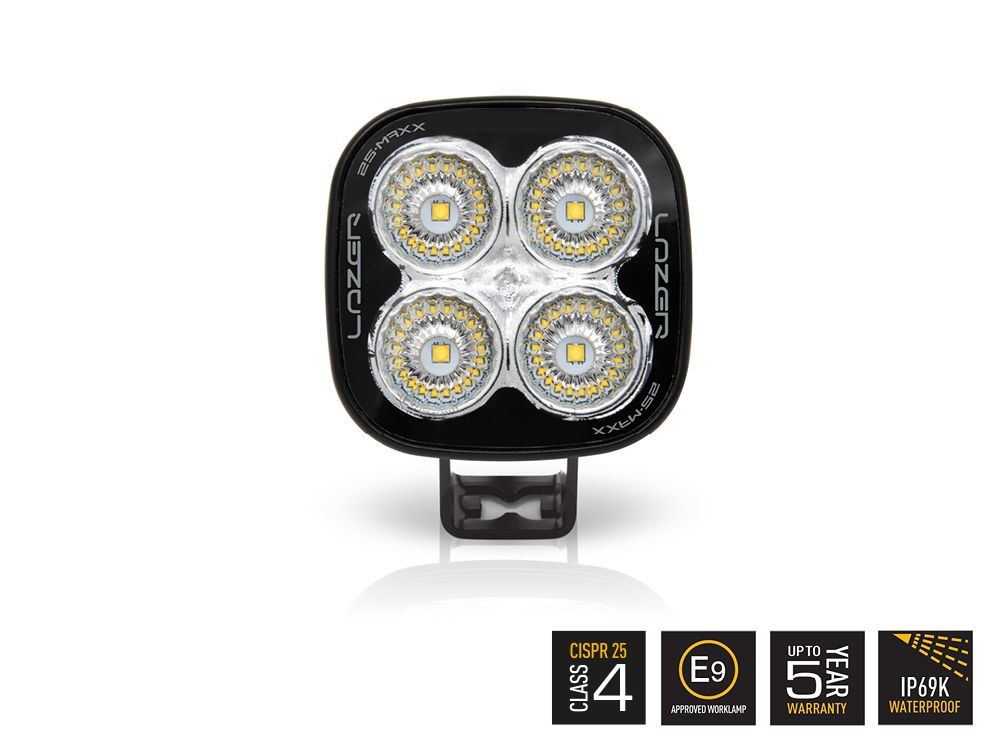

Lazer Utility-25 MAXX

Description

The latest in the Lazer Lamps’ range of LED work lights, the Utility-25 MAXX is a hugely versatile, medium-duty work light. The lamp incorporates higher output 11W LEDs to deliver seriously impressive lighting performance, especially considering the lamps’ comparatively small proportions, something made possible through continued improvements in LED electronics design, coupled with the lamps’ robust physical design. Sharing product DNA with the larger Utility-45 and Utility-80 heavy duty work lights, the lamp is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types.

Measuring 80mm x 80mm, and capable of operating between 9-32V, the Utility-25 MAXX utilises highly efficient 11W LEDs from a world-leader in LED design and manufacture. Like all Lazer products, the colour temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range. The vacuum-metallised optics harness the 4,560 raw lumens delivering 78 degree spread (to 10% of peak intensity). The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the lamp to be run at a higher drive current without compromising the longevity of the LEDs themselves.

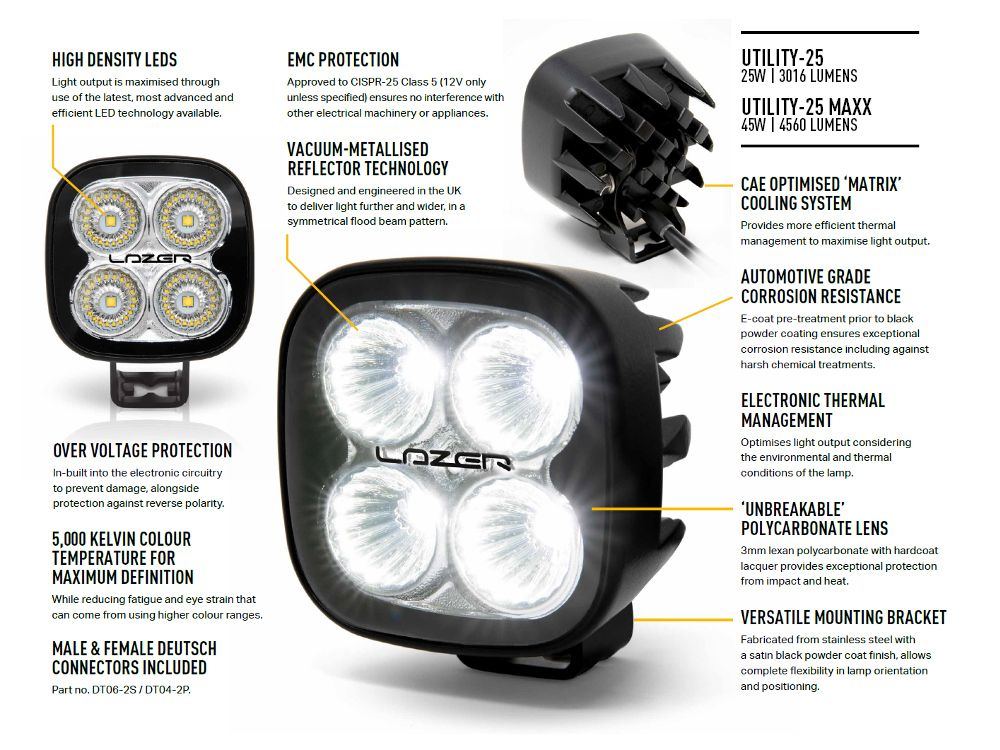

Product Features

• ECE (Reg 10) approved Work Light

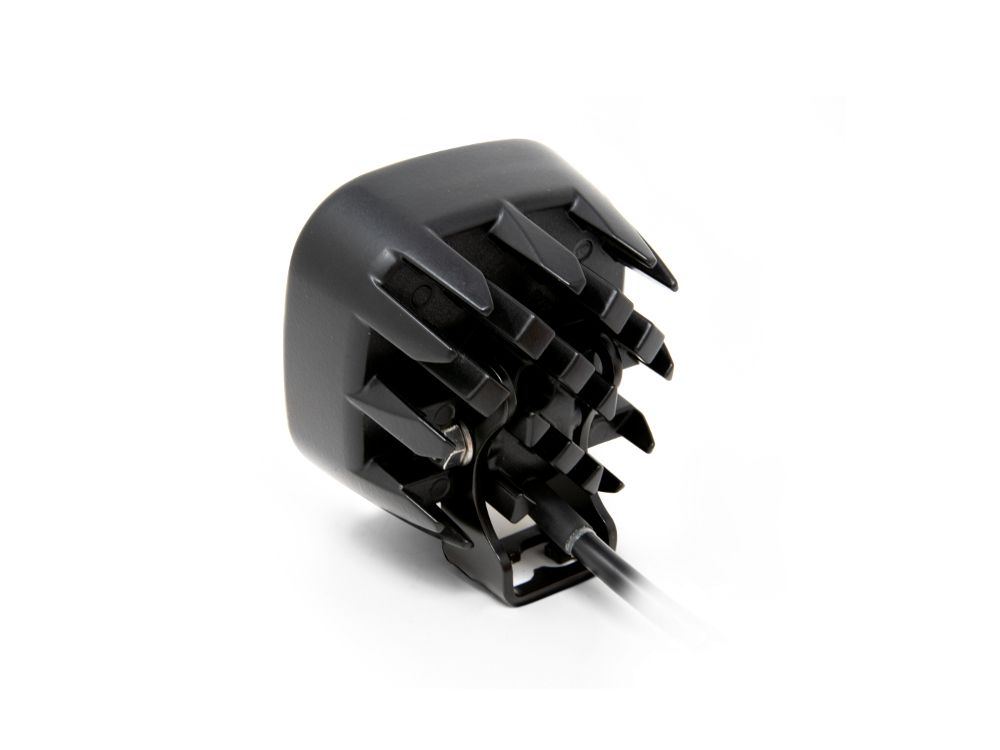

• CAE optimised ‘Matrix’ cooling system
• Advanced optical design delivers superior lighting performance
• Electronic thermal management
• Certified IP67/IP69K watertight
• ADR Approved
• Automotive grade corrosion resistance (ISO 9927 / BS EN 60068)
• 5,000 kelvin light temperature for maximum definition
• EMC protected – CISPR 25: 2008 (Class 4) certified
• Vibration Certified (BS EN 60068) : 10Hz – 2000Hz, 1 oct/min, 10gn
• Over voltage protected
• Reverse polarity protected
• Male and female 2-pin Deutsch connectors included
• 5 Year warranty*
• Made in Britain

• Technical Specifications
• Voltage Range (DC) 10-32V
• LED Life 50,000 hours
• Colour Temperature 5,000 Kelvin
• Weight 360 gr
• HIGH BEAM FUNCTION
• Total Luminous Flux 4560 Lm
• Colour Temperature 5000K
• Number of High Output LEDs 4
• Power Consumption 45 Watts
• Current Draw (at 14.4V) 3.1 Amps
• CERTIFICATION
• Work Lamp ECE R10
• IP Rating IP69K
• Salt Spray Test ISO 9227 (1000H)
• EMC Protection CISPR-25 (Class 4)
• OPERATING CONDITIONS
• Shock TBC
• Vibration (BS EN 60068-2-64) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
• Operating Temperature -40deg C … +90degC

DIMENSIONS

• Width 80 mm
• Depth 56 mm
• Height 80 mm

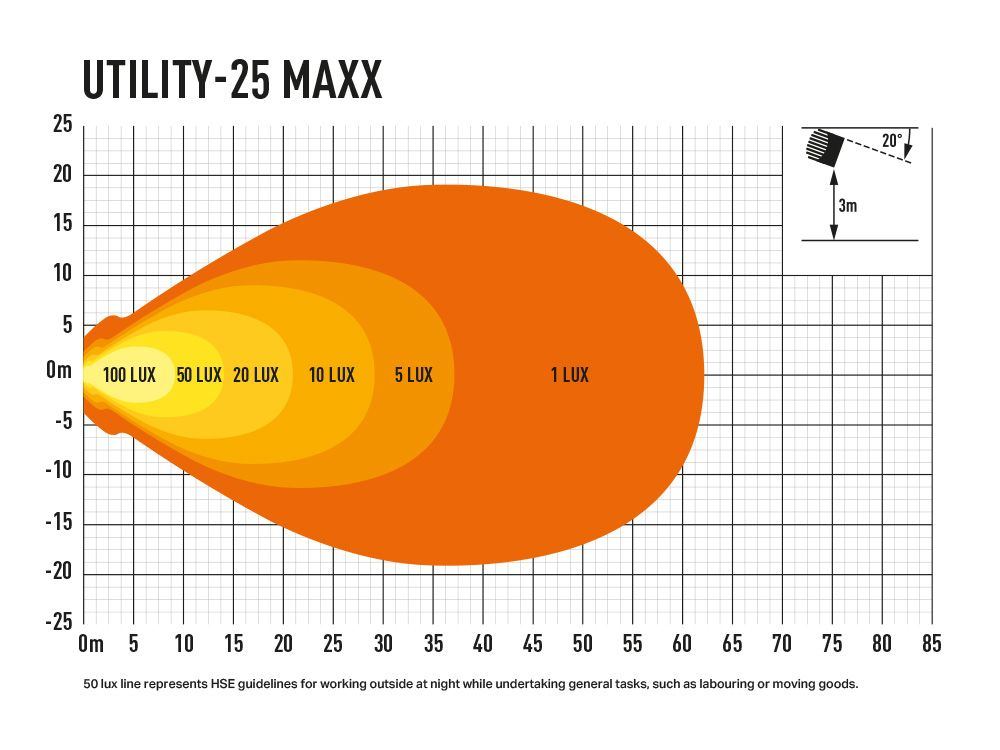

PHOTOMETRIC DATA

• 1Lx Line @ 62m
• 5Lx Line @ 37m
• 20Lx Line @ 21m
• 50Lx Line @ 14m*
• * – 50Lx represents HSE guidelines for effective illumination when working outdoors at night.

Whats Included:

• Utility-25 MAXX Work Lamp
• 1x Uility-25 Centre Mount (supplied attached to lamp)
