Lazer AIR-55 LED Auxiliary Light (Beacon)

•

What’s New?

• Optional dynamic start-up animation (start-up/welcome mode)

• Flash-To-Dim dual-intensity technology

• Reference number: 12.5

• Integrated warning light / flash function approved to UNECE Regulation 65 (XA1)

The Lazer AIR-55 is a next-generation LED auxiliary light that combines exceptional light output, modern design, and now also features a brand-new integrated Beacon warning light. This makes it the ideal lighting solution for professional transport, commercial vehicles, and heavy-duty applications – all year round.

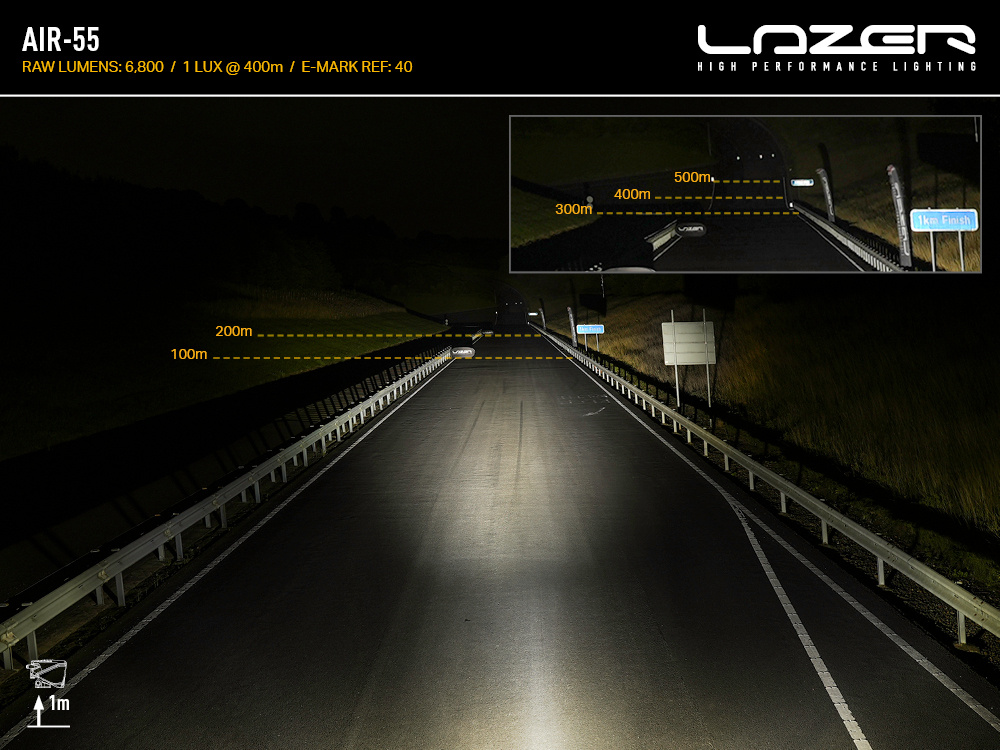

The AIR-55 delivers 6,800 raw lumens of light output and achieves 1 lux illumination at distances of up to 524 meters. Its optimized vertical beam pattern enhances visibility in all driving conditions. The unit is approved as a high beam according to UNECE Regulation 149 and features Lazer’s E-Boost technology, allowing operation at either full or reduced output – manually or via the Flash-to-Dim function.

Beacon – LED light with built-in warning function

The AIR-55 Beacon is approved under UNECE Regulation 65 as a narrow-beam, night-use (XA1) warning light. It features two distinct amber flash patterns that can be synchronized across multiple units. Selection and switching between patterns is simple, either during installation or later if required.

This new feature adds significant value, especially for users who need both powerful driving light and warning light functionality in a single unit.

•

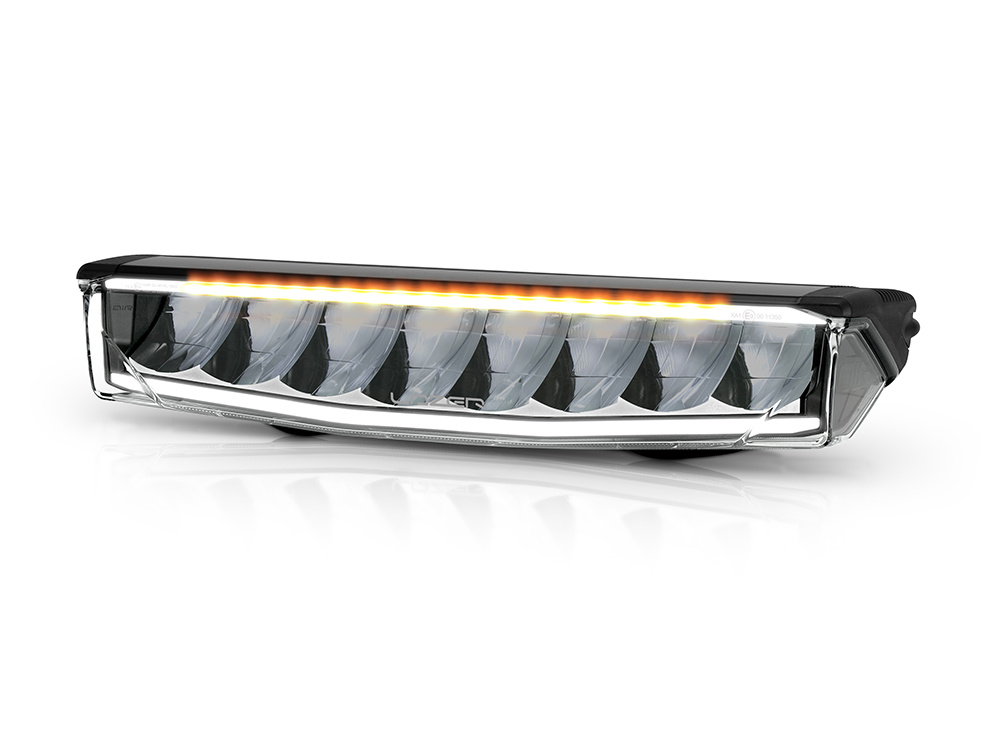

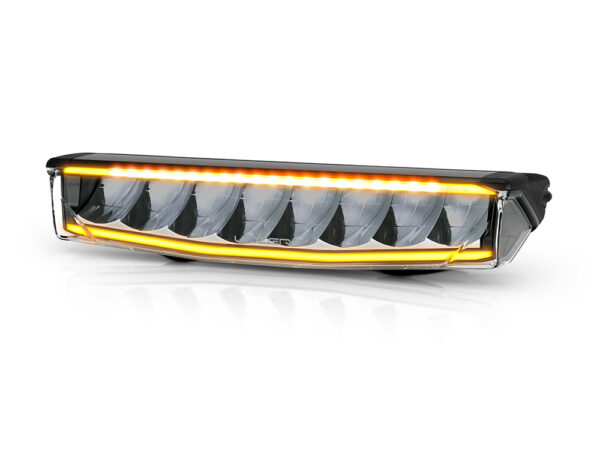

Bold design featuring white and amber position lighting

The AIR-55 stands out with its bold design: the monocoque lens is made from durable injection-moulded polycarbonate with a hard-coated finish for long-lasting performance – backed by a lifetime lens warranty. The light also features a dual-colour position light (white or amber), which is especially beneficial for heavy-duty vehicle users. The white position light complies with UNECE Regulation 148 for road use (note: duplicating position lights is not permitted in Finland).

•

Welcome Mode – Stylish Start-Up Animation
The AIR-55 Beacon can be configured to gradually brighten at start-up or to fade between white and amber colours (or vice versa), adding a refined visual effect.



Clean Installation – Even on the Roof
The AIR-55 comes with a Centre Mount bracket system that allows for a neat, low-profile installation relative to the mounting point. This is especially beneficial for roof installations where maintaining a low and aerodynamic vehicle profile is important.

Features:

• Patent-pending injection-moulded monocoque lens with textured inner surface

• Utilizes the latest high-performance, premium-grade LEDs

• Highly reflective vacuum-metallized optics deliver an optimized beam pattern for daily road use, including higher mounting positions

• Flash-to-Dim functionality to reduce glare, for example when approaching road signs

• Dual output modes – high and low power settings

• UNECE Regulation 149 Class B approved high beam (road-legal only in low-power mode)

• Integrated dual-colour position light – white (UNECE Reg 148 approved) or amber

• Integrated amber warning light – UNECE Reg 65 (XA1) approved

• Versatile Centre Mount bracket system for low-profile mounting relative to the fixing point

• Dynamic start-up/welcome lighting function – two selectable modes

• CAE-optimized heat sink for improved thermal management

• Anodized pre-treatment and automotive-grade powder coating for maximum corrosion and chemical resistance

• Electronic thermal management

• “Unbreakable” hard-coated polycarbonate lens with lifetime warranty

• IP68 waterproof rating

• 5-year warranty

• 20 cm cable with male/female 6-pin Superseal connectors

• Designed and manufactured in the UK



Technical Specifications (Boost-mode / E-Mark)

• Operating Voltage: 10-32V

• Reference Number: 12.5 (Low power mode)

• Rated Power: 55W / 9W

• Rated Current: 6.1A / 1.05A

• Rated Luminous Flux: 6800 lm / 1224 lm

• Colour Temperature: 5000K

• Connector: 6-pin Superseal

• Cable Length: 25 cm

• Weight: 1.65 kg

• IP Rating: IP68

• Approvals: ECE R149, ECE R148, ECE R10, ECE R65 (XA1)

• Road-legal approval does not apply in E-Boost mode

• Warranty: 60 months (5 years)

Dimensions:

• Width: 411 mm

• Depth: 106 mm

• Height: 82 mm

• Height with bracket: 82 mm - 98 mm

Beam Coverage (Boost / E-Mark):

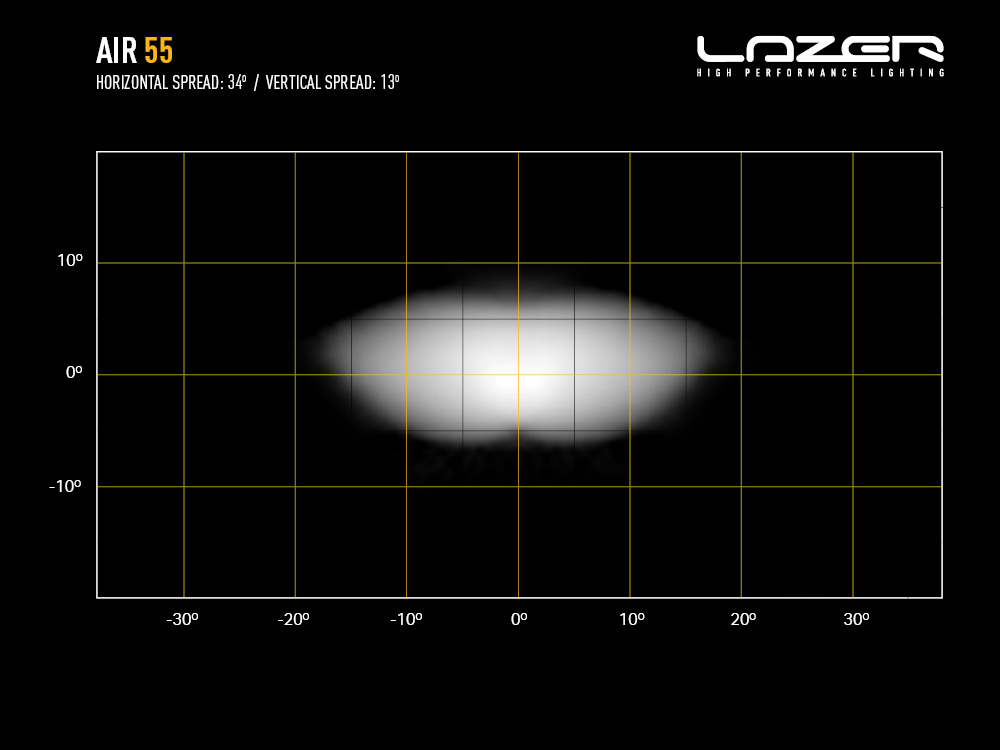

• Horizontal / Vertical Beam Angle: 34° / 13°

• 0.25 Lux @ 1049m / 445m

• 0.5 Lux @ 742m / 315m

• 1 Lux @ 524m / 222m

• 3 Lux @ 303m / 128m

Package Contents:

• Lazer AIR-55 Beacon auxiliary light

• 2x Centre Mount kits

• Installation instructions
