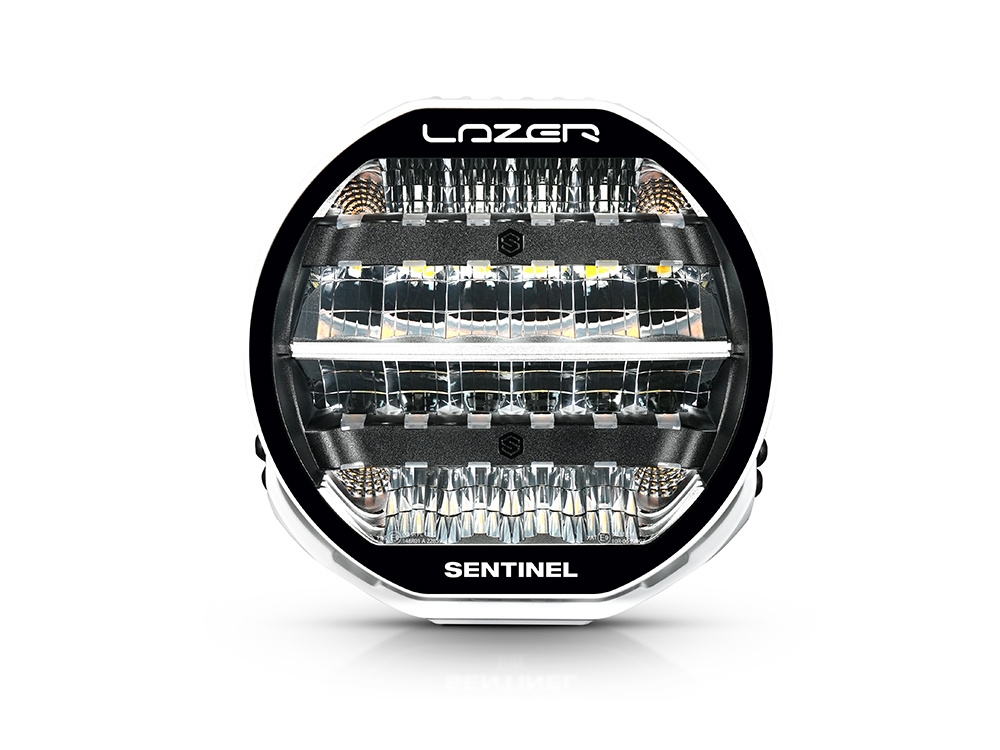

Lazer Sentinel 9" Highline Auxiliary Light (White) for Heavy-Duty Vehicles

The Sentinel Highline PL2 is a new-generation 9" LED auxiliary light specifically designed for trucks and heavy-duty professional use. Its modern design, featuring a black interior and satin black finish, combined with cutting-edge LED technology, ensures outstanding performance and a sleek appearance.

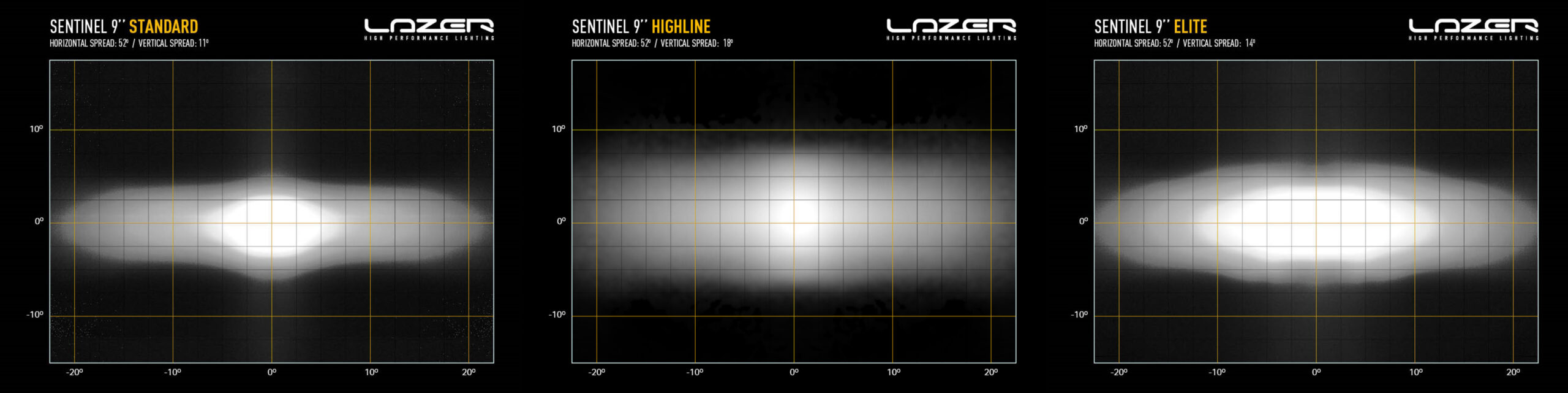

With an impressive light output of 17,020 lumens and a wide beam spread of 52° horizontally and 18° vertically, it’s the perfect choice for high mounting positions such as truck rooftops. Although its range is shorter than that of the previous Elite and Standard models, the Highline’s beam pattern is significantly taller.

As with all Lazer products, the comfortable 5000K color temperature improves visibility and object recognition.

The most notable upgrades include a new Integrated Beacon function, the Position Light feature (PL2), an optional “Welcome Mode” startup sequence, and enhancements to the High (Boost) and Low (E-Mark) Output modes.

All-New Position Light and Beacon Functions

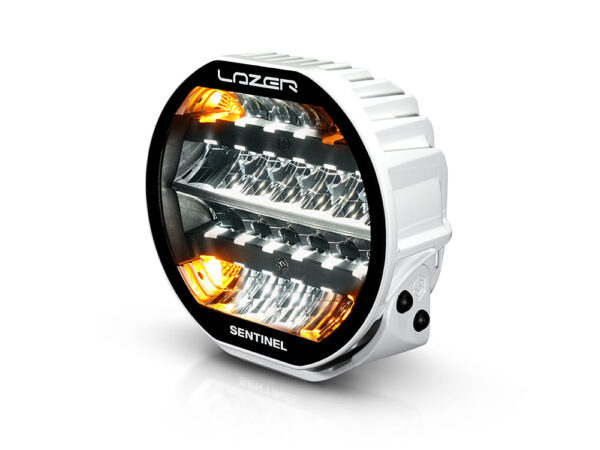

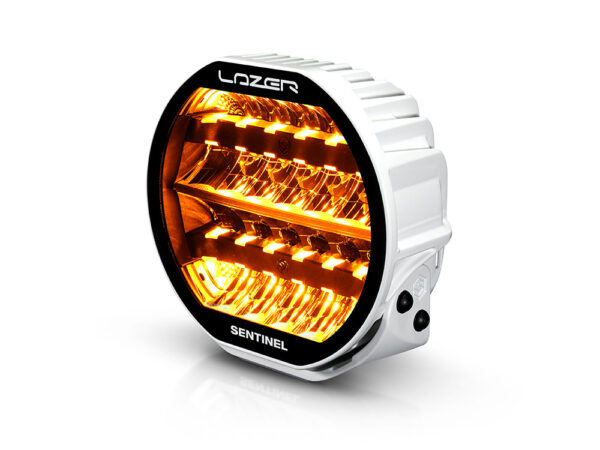

The Position Light and Backlight features in the Highline range have been updated while remaining compliant with UNECE regulations for on-road use (white position light only). In the new position light design, the entire auxiliary light lens is evenly illuminated, whereas previous models only lit the four corners. As with earlier versions, the position light color can be selected as either amber or white. Additionally, this model includes an integrated beacon function, a feature already familiar from models like the Triple-R 1000 auxiliary lights.

Welcome Mode – Stylish Startup Animation
During installation, customers can activate one of two different startup animations; both are off by default.

Options:

• Position light gradually brightens on startup

• Position light gradually brightens while simultaneously changing color

Flash-to-Dim & Updated E-Boost

The Sentinel Highline models now feature the flash-to-dim function, first introduced in the Glide series. This allows the driver to quickly reduce the auxiliary light’s brightness using the high beam stalk.

This is especially useful when driving in areas with many large traffic signs or heavy traffic, allowing you to keep the auxiliary lights on for longer distances without causing glare or discomfort.

Features

• 20 premium-quality LEDs

• 5000K color temperature with 80 CRI for excellent color rendering

• Ultra-reflective vacuum-metallized spot and wide optics

• Integrated beacon function (UNECE Reg65 approved)

• Flash-to-Dim function to reduce glare

• Dual power modes – High and Low

• UNECE Reg 112 Class B approved for high beam use (Low mode)

• Dynamic Welcome Mode

• Cast aluminum bracket with Sentinel logo

• Electronic thermal management extends LED lifespan

• Anodized base finish with automotive-grade powder coating

• CAE-optimized cooling structure for improved heat management

• Over-voltage and reverse polarity protection

• Impact-resistant polycarbonate lens with hard coating

• A2 stainless steel mounts with black coating

• Includes Lazer-branded lens cover

• UNECE Reg10 EMC approved

• IP68 waterproof rating – submersible to 1.5m for 30 minutes

• 5-year warranty

Technical Specifications (Boost / E-Mark mode)

• Operating Voltage: 10–32V

• Power Consumption: 130W / 26W

• Light Output: 17,020 lm / 3,404 lm

• Color Temperature: 5000K

• Number of LEDs: 20

• Weight: 2.5 kg

• Warranty: 5 years

• IP Rating: IP68

• Connector: 6-Pin Superseal

• Cable Length: 25 cm

• Certifications:

  • High Beam: ECE R149 – Ref: 12.5 (E-Mark)

  • Position Light (white): ECE R148

  • Beacon Function: ECE R65

  • EMC: ECE R10

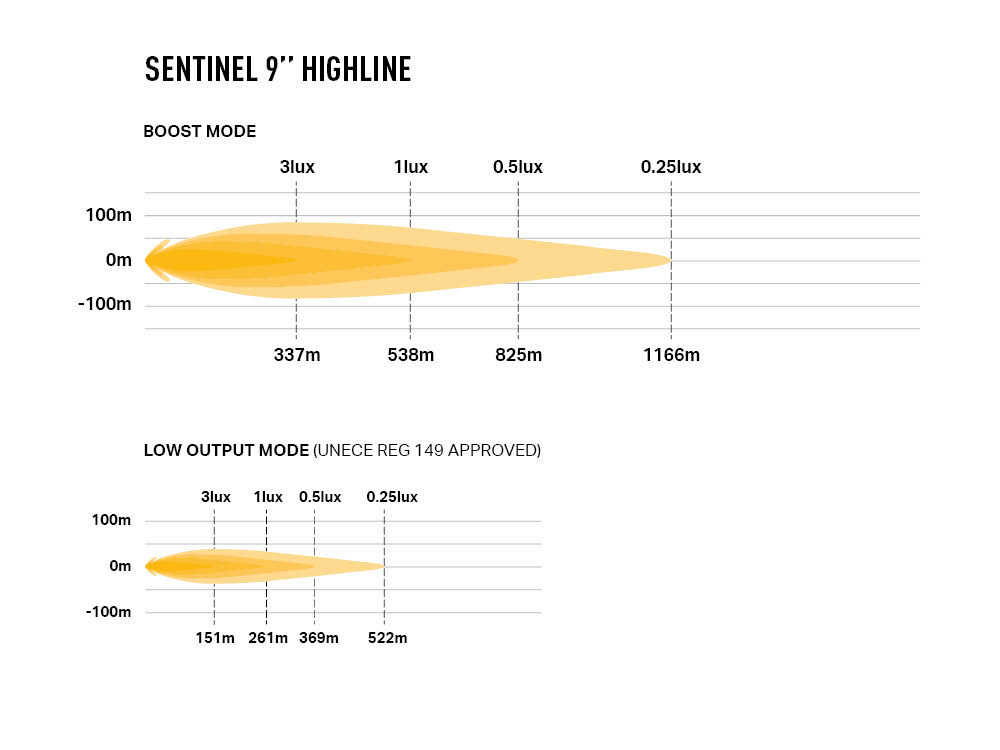

Performance – Light Range (Boost / E-Mark)

• 0.25 lux: 1166 m / 522 m

• 0.5 lux: 825 m / 369 m

• 1 lux: 538 m / 261 m

• 3 lux: 337 m / 151 m

Dimensions

• Width: 225 mm

• Depth: 90 mm

• Height: 211 mm

• Height with bracket: 228 mm

Package Includes

• Sentinel 9" Highline Auxiliary Light

• Mounting bracket

• Installation instructions
