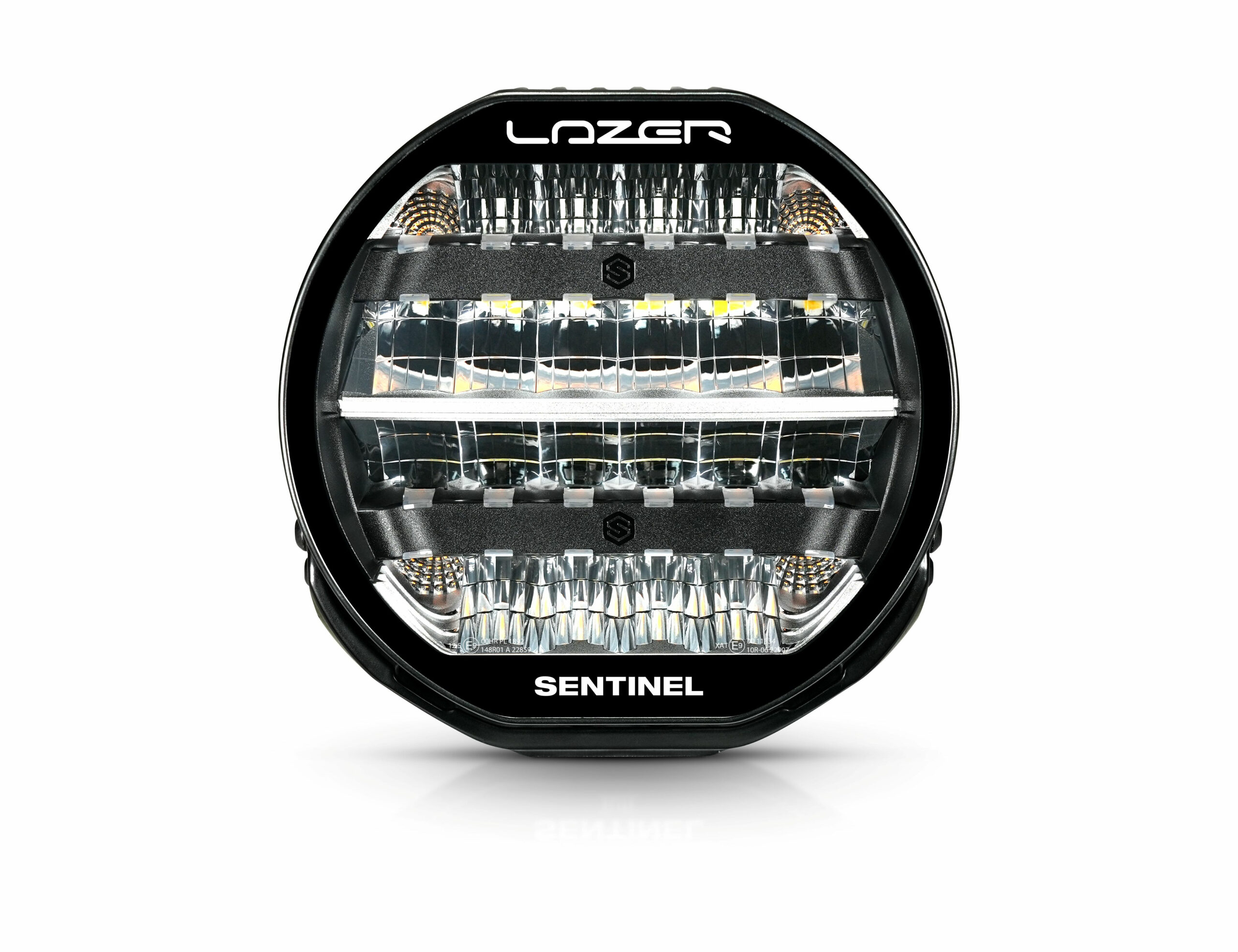

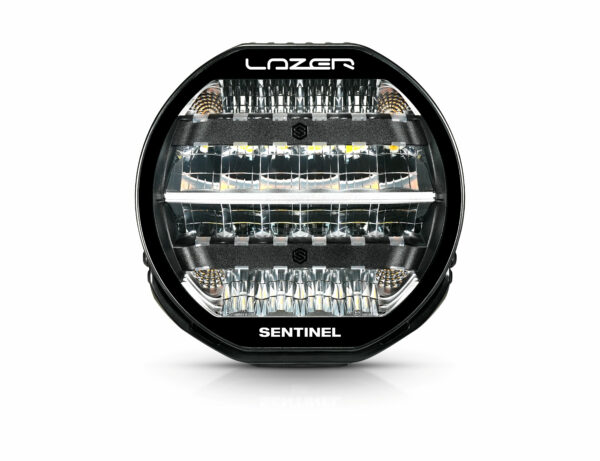

Lazer Sentinel 9" Highline – Auxiliary Light for Heavy-Duty Vehicles

•

Sentinel Highline PL2 is a new-generation 9" LED auxiliary light specifically designed for trucks and heavy-duty professional use. The light features a modern design with a black interior and satin black finish, combined with cutting-edge LED technology to ensure outstanding performance and a stylish appearance.

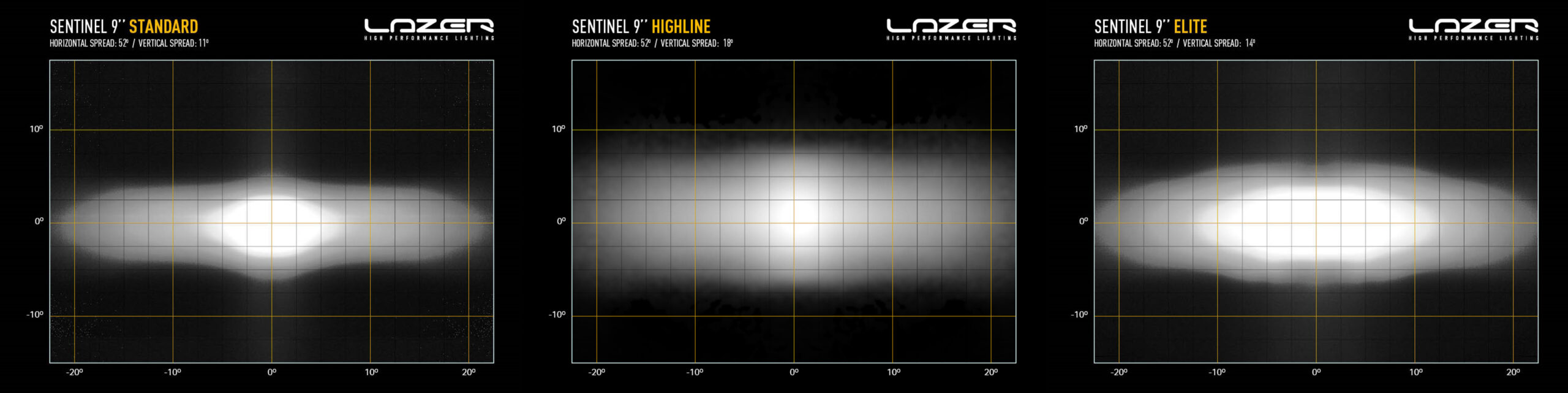

With a powerful light output of 17,020 lumens and a wide beam pattern of 52° horizontally and 18° vertically, it is the perfect choice for high mounting positions such as the roof of a truck. While its range is not as long as that of the previous Elite and Standard models, the Highline series offers a significantly taller beam pattern.

As with all Lazer products, the comfortable 5000K color temperature enhances visibility and object recognition.

The most notable upgrades include the new Position Light feature (PL2), the optional "Welcome Mode" function on startup, and improvements to the High (Boost) and Low (E-Mark) Output modes.

The Sentinel 9" Highline models offer excellent value for money, as they are priced at the same level as the Sentinel 9" (Standard) products.

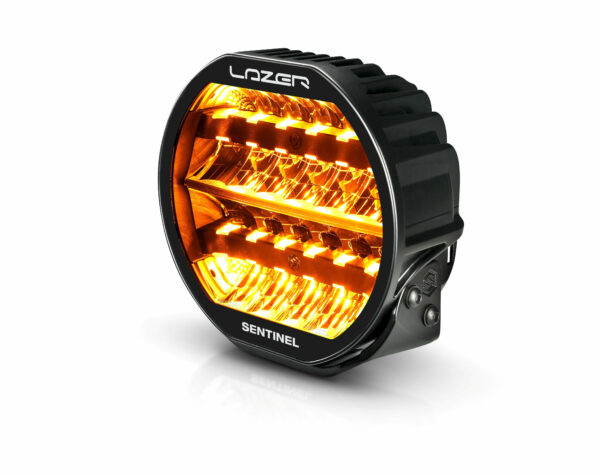

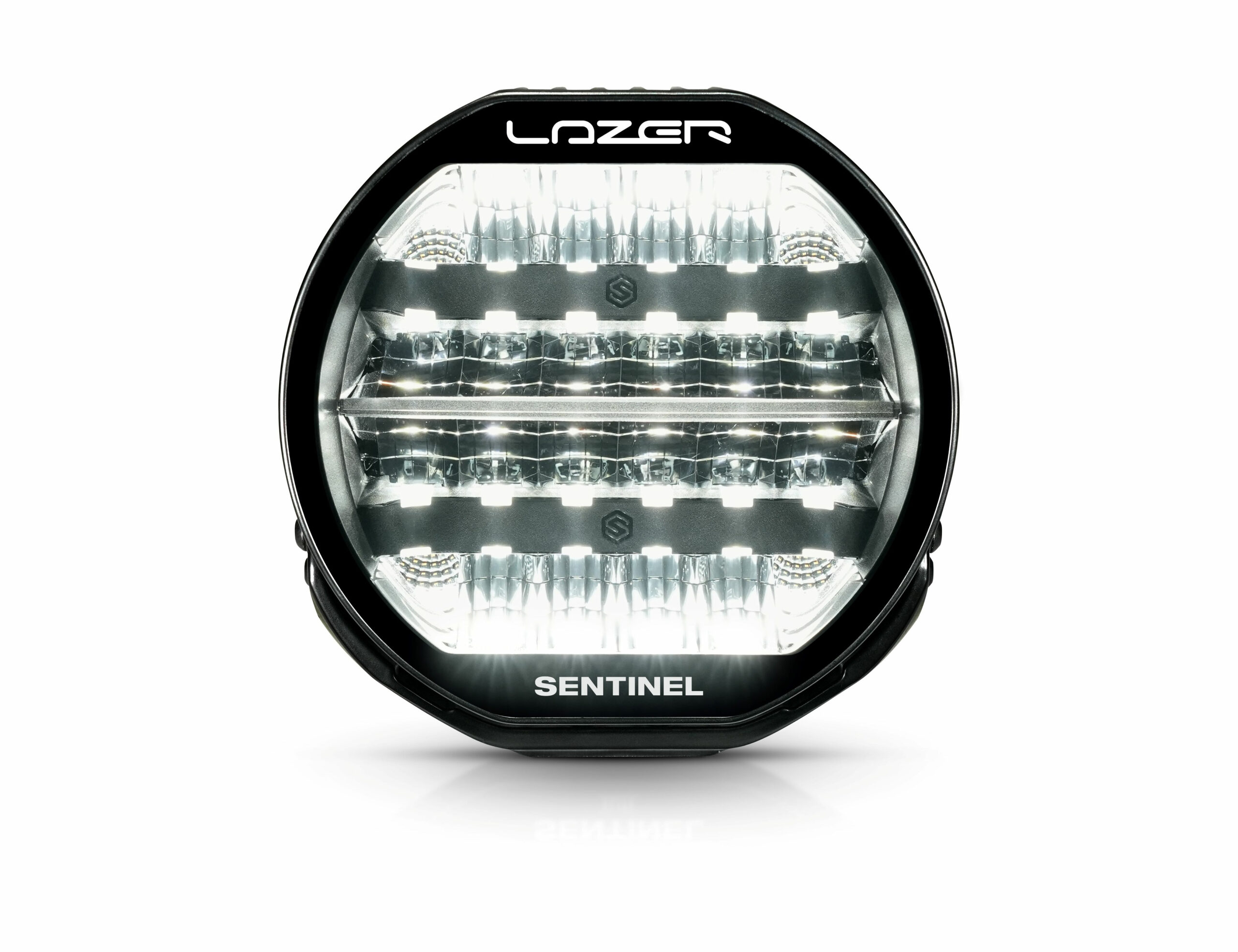

All-New Position Light Function The Highline range features updated Position Light and Backlight functions, while still being approved for on-road use under UNECE regulations (white position light only). In the new design, the entire lens of the auxiliary light is evenly illuminated—unlike previous models where only the four corners were lit. As with its predecessors, the position light color can be selected as either amber or white.

Welcome Mode – A Stylish Startup Feature During installation, customers can activate two different startup animations—both are off by default.

Options:

• The position light gradually brightens on startup
• The position light gradually brightens while simultaneously changing color

Flash-to-Dim & Updated E-Boost The Sentinel Highline models feature the newly added Flash-to-Dim function, first introduced in the Glide series. This allows the driver to quickly switch the light’s output intensity via the high beam stalk, reducing the auxiliary light’s brightness.

This is particularly useful when driving in areas with large reflective traffic signs or in heavy traffic, allowing you to use the auxiliary lights over longer distances without causing glare or distraction.

•

Features:

• 20 premium-quality LEDs

• 5000K color temperature with 80 CRI for excellent color rendering

• Ultra-reflective vacuum-metallized spot and wide optics

• Flash-to-Dim for glare reduction

• Dual-power modes: High (Boost) & Low (E-Mark)

• Approved for on-road use (UNECE Reg 149 Class B – in Low mode)

• Dynamic Welcome Mode

• Cast aluminum bracket with embossed Sentinel logo

• Electronic thermal management for longer LED life

• Anodized base and automotive-grade powder coating

• CAE-optimized heatsink design for superior cooling

• Over-voltage and reverse polarity protection

• Impact-resistant polycarbonate lens with hard coating

• A2 stainless steel fittings with black coating

• Supplied with Lazer-branded lens cover

• Certified under UNECE Reg10 (EMC)

• IP68 rated – waterproof to 1.5m for 30 minutes

• 5-year warranty

• Pre-installed 3-pin Superseal connector

Technical Specifications (Boost / E-Mark Modes):

• Operating Voltage: 10–32V

• Power: 130W / 26W

• Light Output: 17,020 lm / 3,404 lm

• Color Temperature: 5000K

• LED Count: 20

• Weight: 2.5 kg

• Warranty: 5 years

• IP Rating: IP68

• Connector: 3-pin Superseal

• Certifications:

  • High Beam: UNECE R149 – Ref: 12.5 (E-Mark mode)

  • Position Light (white): UNECE R148

  • EMC: UNECE R10

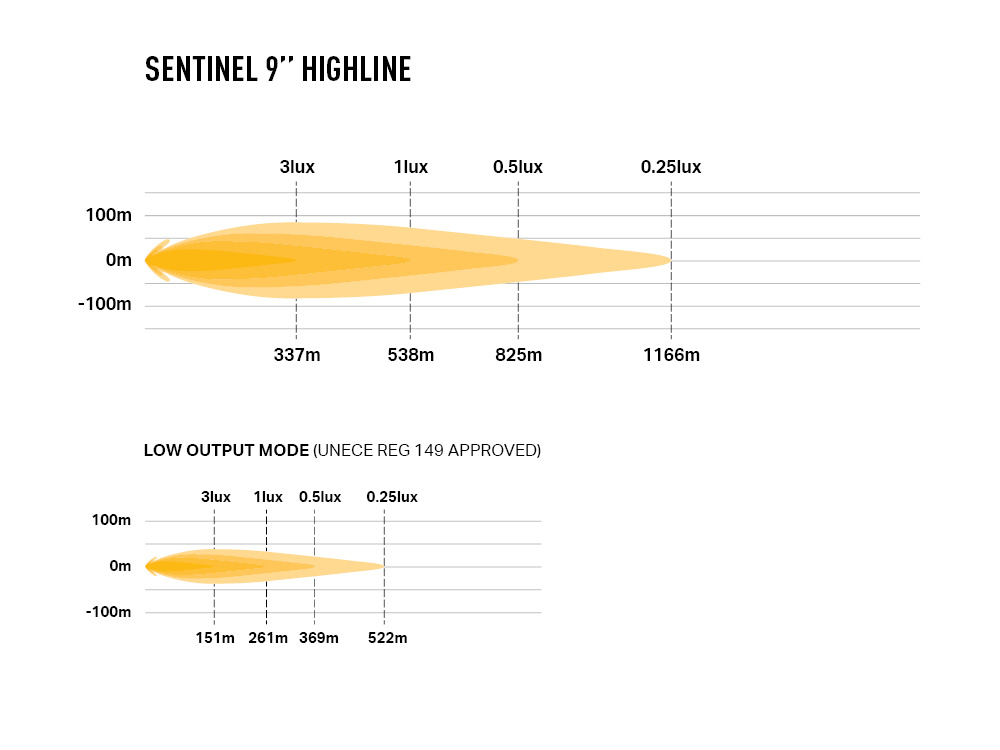

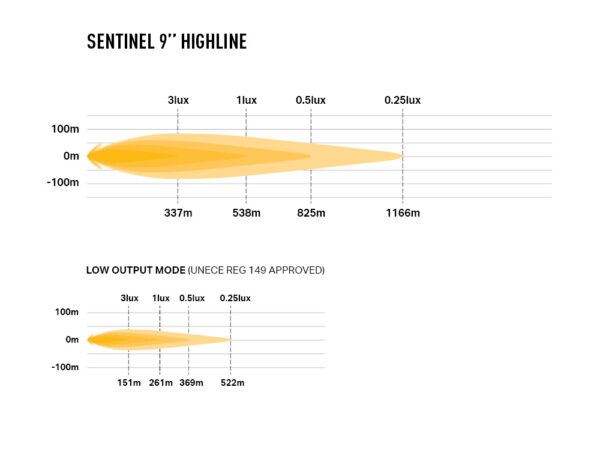

Light Performance – Range (Boost / E-Mark):

• 0.25 lux: 1166 m / 522 m

• 0.5 lux: 825 m / 369 m

• 1 lux: 538 m / 261 m

• 3 lux: 337 m / 151 m

Dimensions:

• Width: 225 mm

• Depth: 90 mm

• Height: 211 mm

• Height with bracket: 228 mm

Package Includes:

• Sentinel 9" Highline Auxiliary Light

• Lens cover

• Mounting bracket

• Installation instructions
