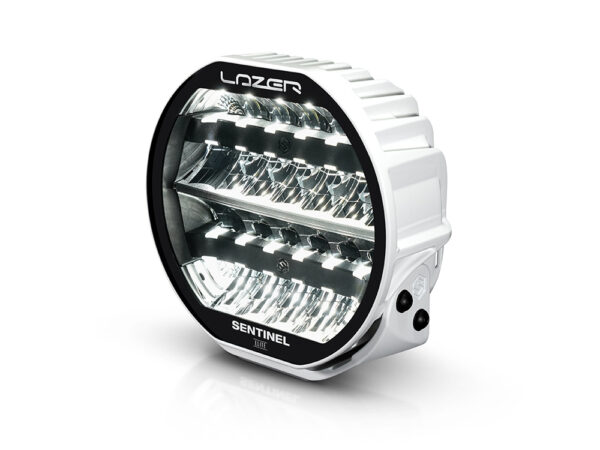

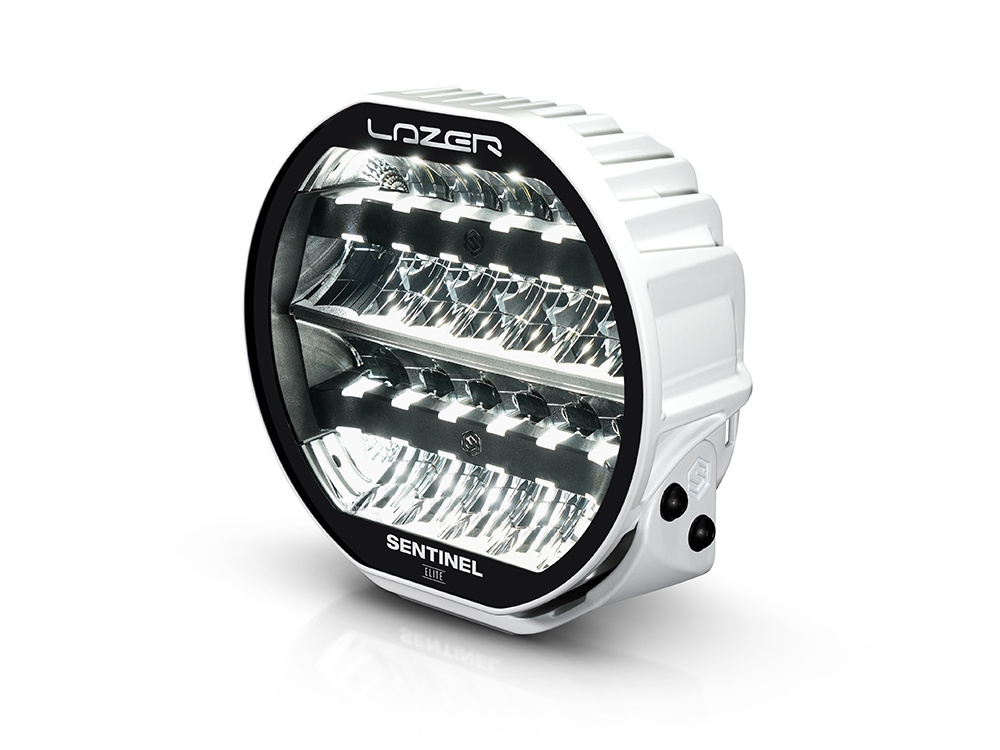

Sentinel Elite Gen2 – Premium 9” LED Auxiliary Light for Demanding Use

•

The Sentinel Elite Gen2 is a new-generation 9" LED auxiliary light that combines modern design, powerful illumination, and Lazer Lamps’ uncompromising quality. Featuring a sleek black interior and 32 high-performance LEDs, it delivers exceptional performance both on the road and in challenging conditions.

Key upgrades include the new Position Light feature (PL2), an optional “Welcome Mode” startup sequence, and enhancements to the High (Boost) and Low (E-Mark) output modes.

Excellent Light Output and Wide Beam Pattern

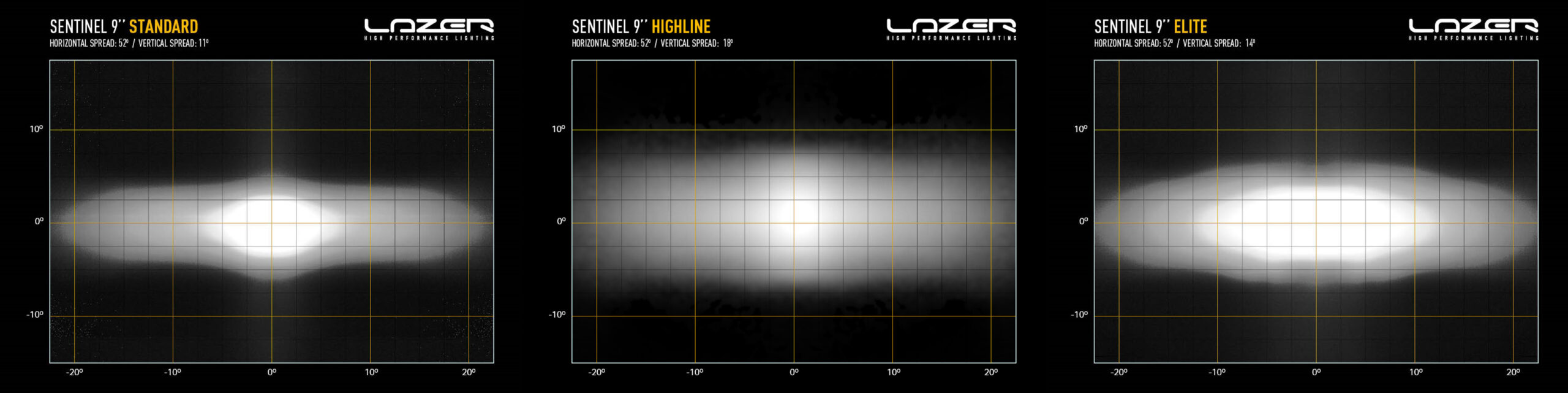

The Sentinel Elite produces an impressive 15,232 lumens, with a 1 lux illumination reaching up to 742 meters. The light is designed to distribute illumination widely, with a 52° horizontal beam spread, enhancing visibility especially along the edges of roads and tracks at both mid and long distances.

All-New Position Light Function

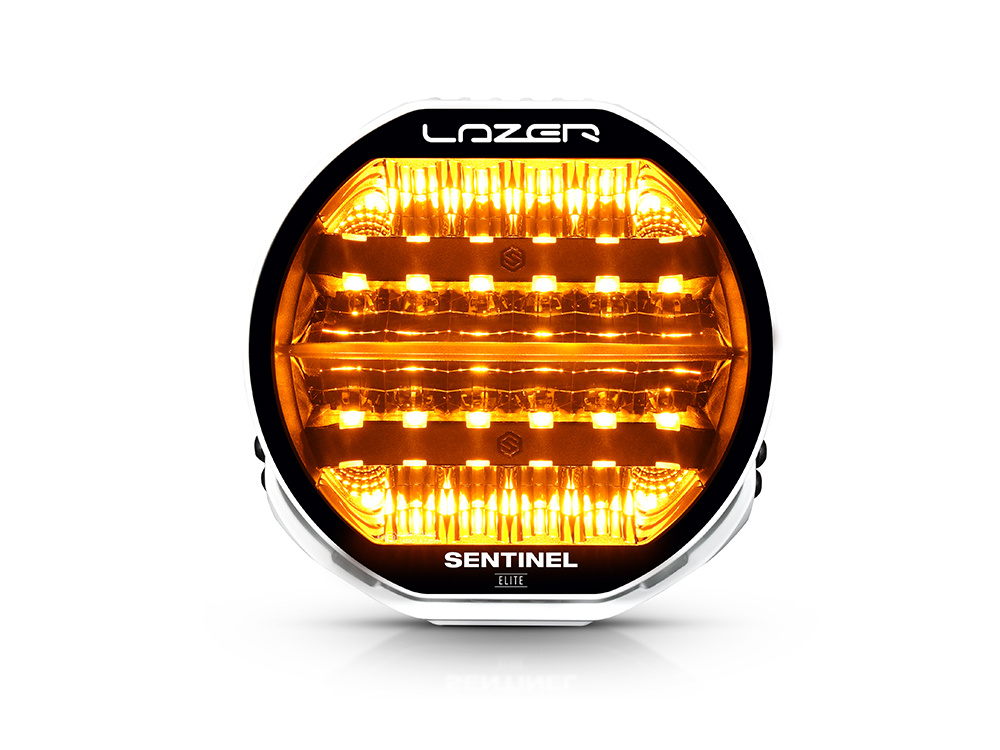

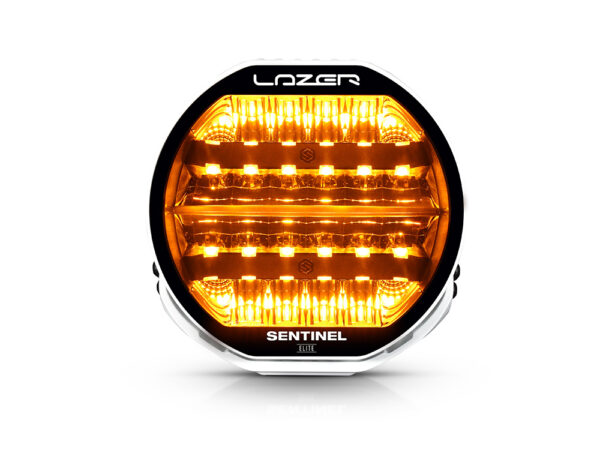

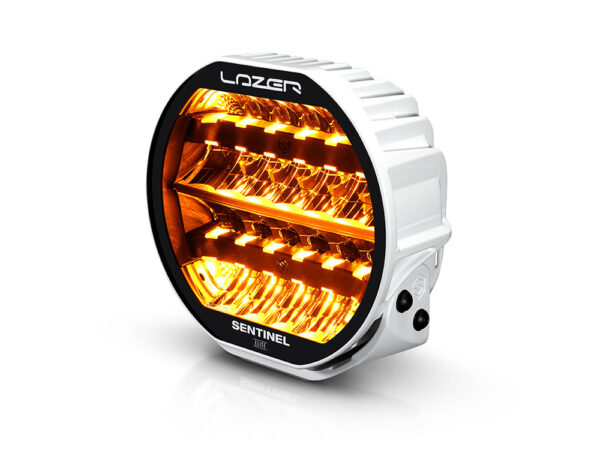

The Position Light and Backlight features in the Elite Gen2 range have been updated but remain approved under UNECE standards for on-road use (white position light only). In the new position light design, the entire auxiliary light housing is evenly illuminated, whereas previous models only lit the four corners. As with its predecessors, the position light color can be selected as either amber or white.

Welcome Mode – Stylish Startup Animation

During installation, customers can activate one of two different startup sequences; both are off by default.

Options:

• Position light gradually brightens on startup

• Position light gradually brightens while simultaneously changing color

Flash-to-Dim & Dual-Level E-Boost Technology

The Sentinel Elite Gen2 features the flash-to-dim function, first introduced in the Glide models. This allows the driver to quickly reduce the auxiliary light’s brightness using the high beam stalk, lowering the light output.

This is especially useful when driving in areas with many large traffic signs or heavy traffic, enabling you to keep the auxiliary lights on for longer distances without causing glare.

Stylish and Durable Finish

The light’s discreet black design, combined with a die-cast aluminum Sentinel bracket, ensures both durability and a sleek appearance. The satin black powder coating protects against wear and corrosion. Optional accessories are also available, including lens covers, support bars, and anti-theft screws.

Egenskaper:

• 32 premium high-quality LEDs

• 5000K color temperature with 80 CRI color rendering

• Ultra-reflective vacuum-metalized spot and wide-angle optics

• Flash-to-Dim function to reduce glare

• Dual output modes – High and Low

• UNECE Reg112 Class B approval for high beam (Low mode)

• Dynamic Welcome Mode

• Die-cast aluminum bracket with Sentinel logo

• Electronic thermal management to extend LED lifespan

• Anodized base treatment and automotive-grade powder coating

• CAE-optimized cooling design improves heat dissipation

• Overvoltage and reverse polarity protection

• Impact-resistant polycarbonate lens with hard coating

• A2 stainless steel brackets with black finish

• Includes Lazer-branded lens protector

• UNECE Reg10 approval

• IP68 waterproof rating – immersion up to 1.5 m for 30 minutes

• 5 års garanti

• Pre-installed 3-pin Superseal connector

•

Technical Specifications: Boost / E-Mark Mode

• Operating voltage: 10–32 V

• Power consumption: 145 W / 29 W

• Luminous flux: 15,232 lm / 3,046 lm

• Color temperature: 5000 K

• Number of LEDs: 32

• Vikt: 2,5 kg

• Garanti: 5 år

• IP-klassning: IP68

• Connector: 3-pin Superseal

• Kabellängd: 25 cm

• Approvals: High beam (ECE R112 – Ref: 20, E-Mark mode), Position light (white) ECE R148, EMC ECE R10

•

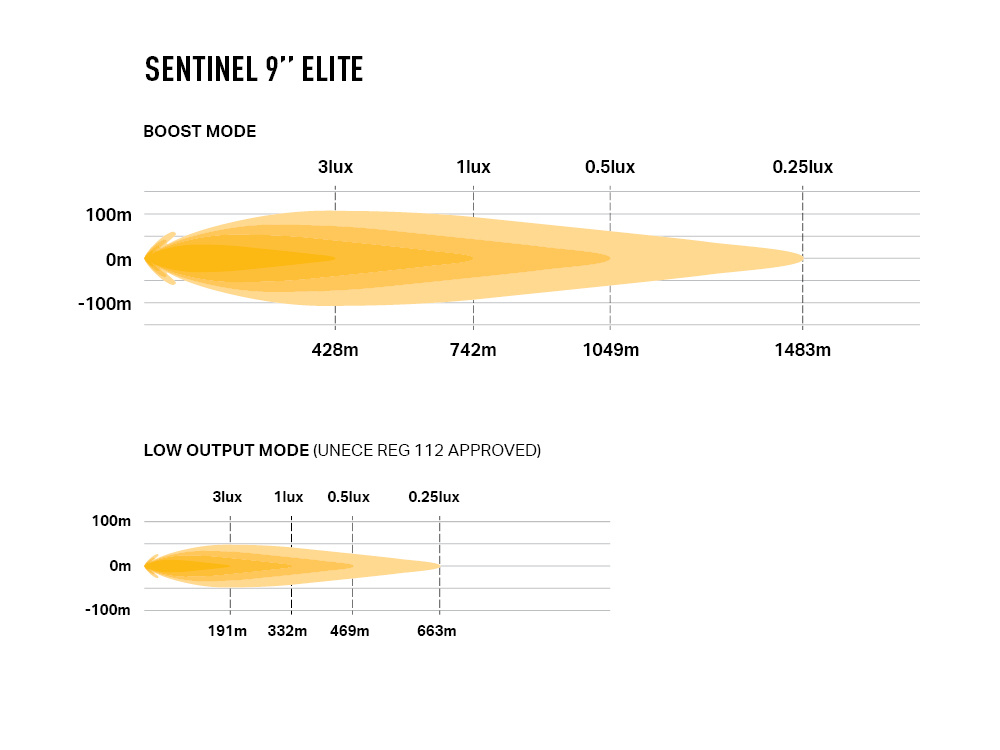

Light Range:

• 0.25 lux: 1,483 m / 663 m (Boost / E-Mark)

• 0.5 lux: 1,049 m / 469 m (Boost / E-Mark)

• 1 lux: 742 m / 332 m (Boost / E-Mark)

• 3 lux: 428 m / 191 m (Boost / E-Mark)

•

Dimensioner:

• Bredd: 225 mm

• Djup: 90 mm

• Height: 230 mm

•

Paketet innehåller:

• Sentinel 9" Elite (Gen2) Auxiliary Light (White)

• Lens Protector

• Mounting Bracket

• Instruktioner för installation
