Lazer Linear 6 Elite

Description

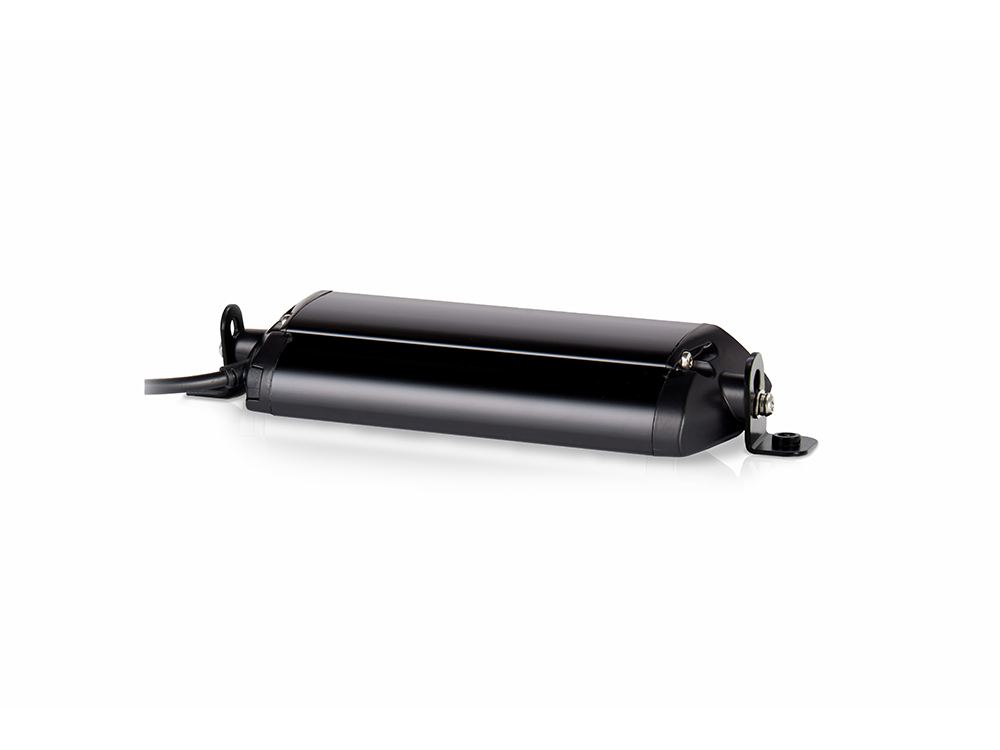

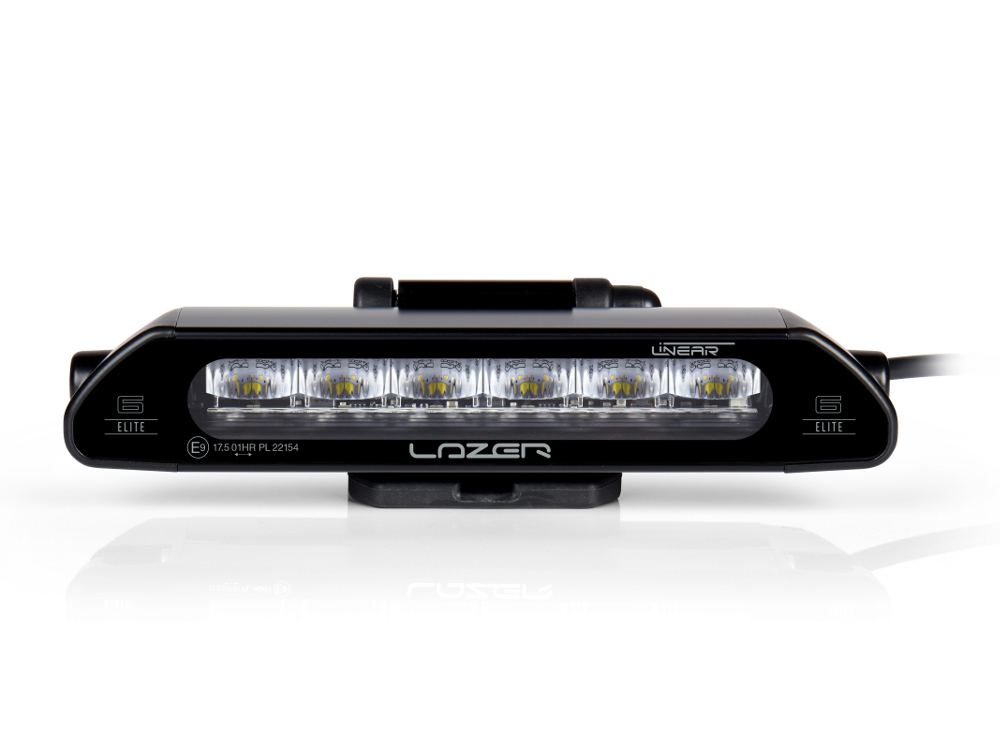

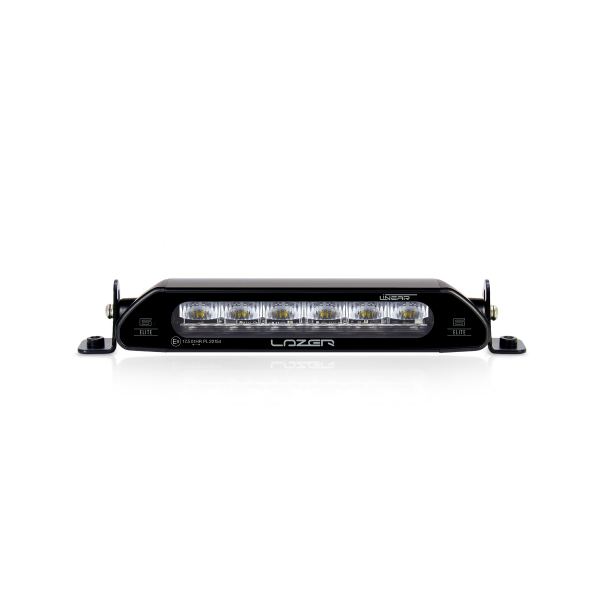

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

All Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products boasting twice the light output compared to the equivalent Standard version.

Product features:

• Flexible mounting options – anti-theft side mounting brackets included
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
• UNECE approved Reg 10
• IP67 watertight
• 5 year warranty
• Designed and manufactured in UK

Technical Specifications:

• Voltage Range: 10-32V
• Weight: 495 gr
• Total luminous Flux: 4050 lm
• Power Consumption: 42 Watts
• Number of High Output LEDs:  12

DIMENSIONS:

• Width: 232 mm
• Depth: 62 mm
• Height: 40 mm

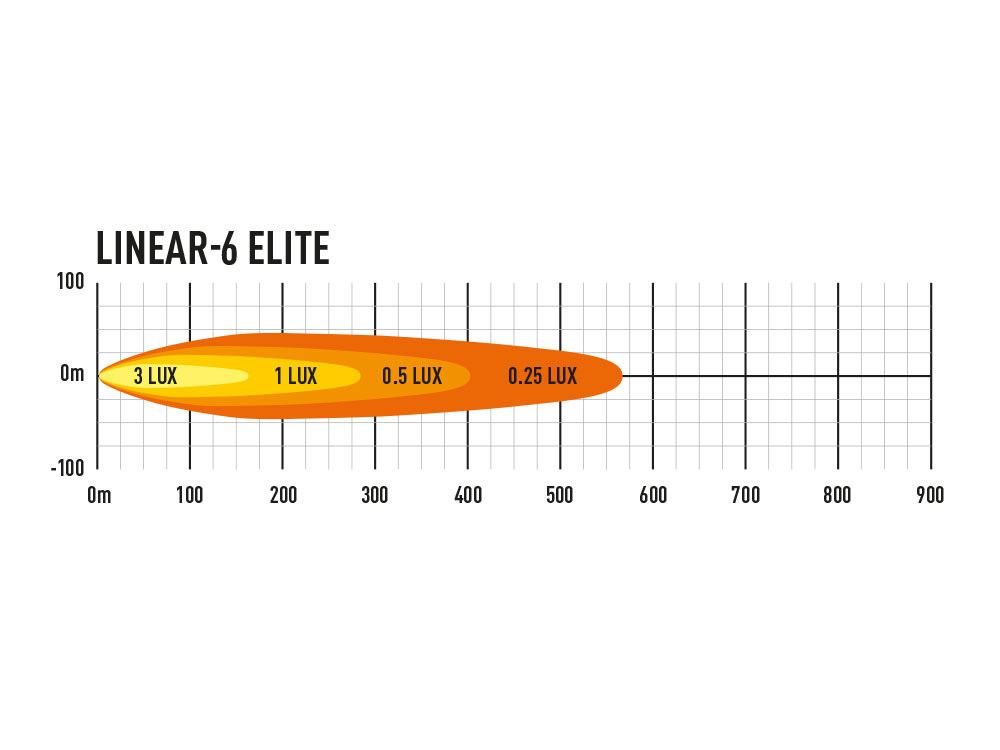

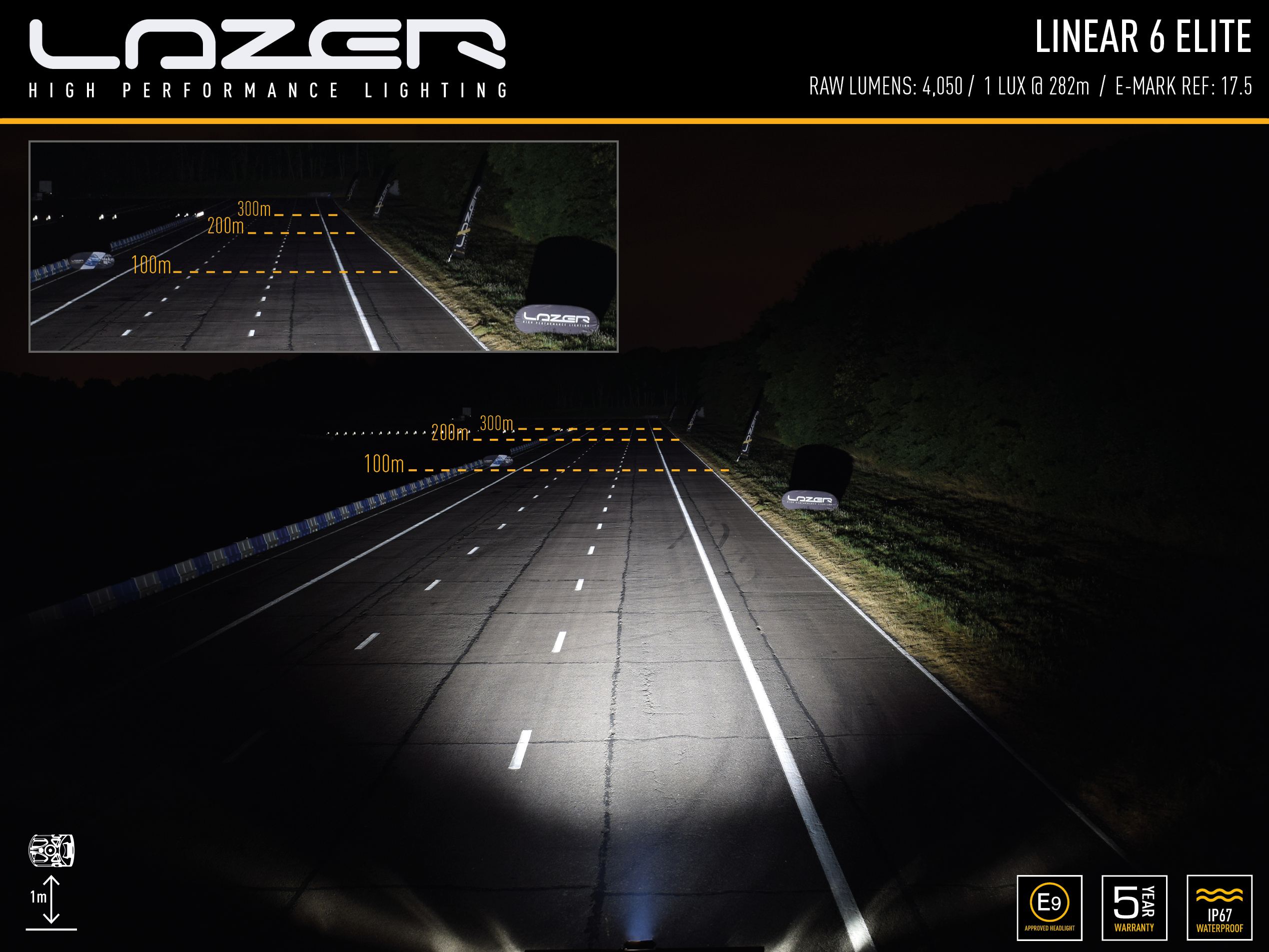

PHOTOMETRIC DATA:

•     Horizontal Beam Angle: 64 Degrees
•     0.25 lx Line: 563 metres
•     0.5 lx Line: 398 metres
•     1 lx Line: 282 metres
•     3 lx Line: 163 metres

CERTIFICATION:

•     High Beam ECE R112
•     ECE Reference: 17.5

What’s included:

• Linear-6 Elite LED Lamp
• Anti-theft side mount
• Supplied with pre-wired male/female 2-pin Superseal connectors

Installation instructions
