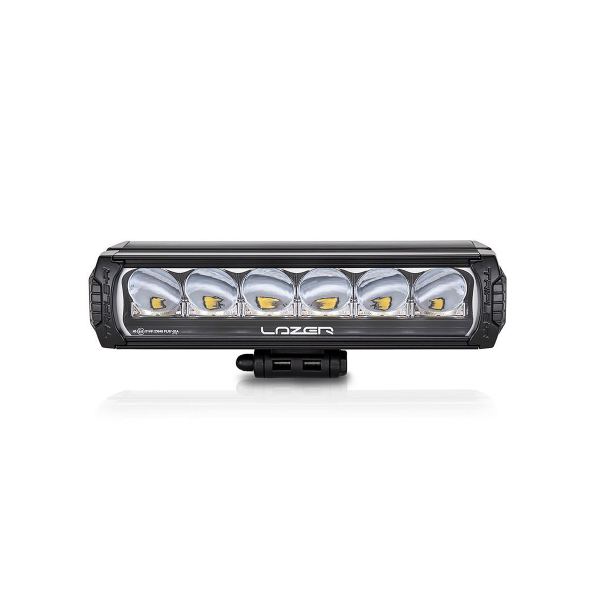

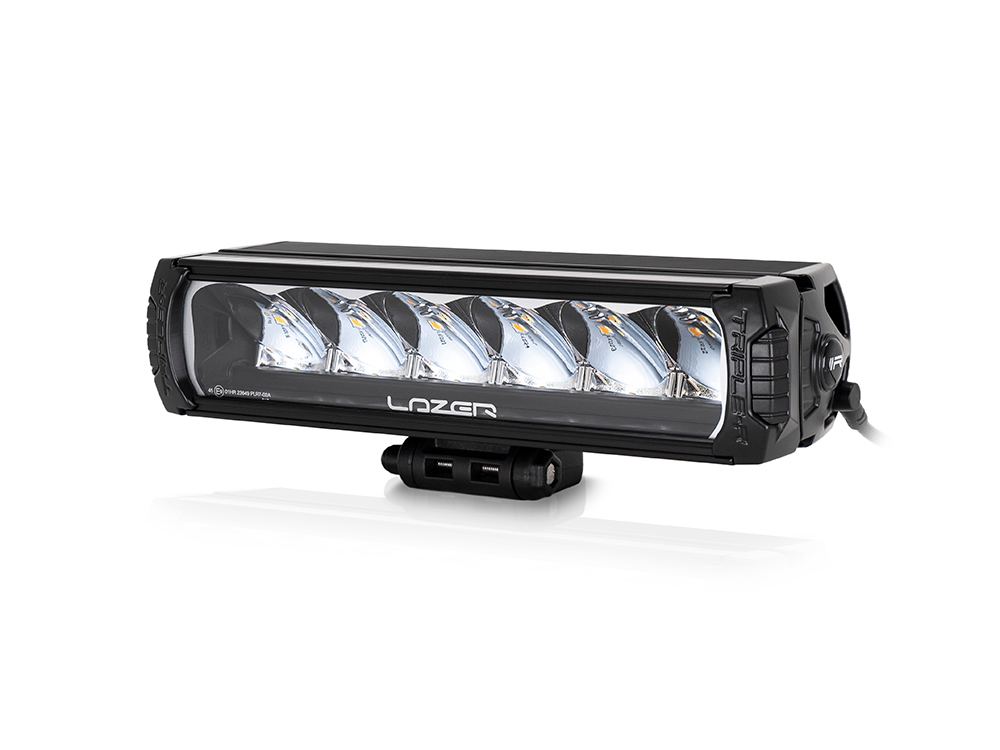

Lazer Triple-R 850

Description

The iconic Triple-R range, upgraded in 2020/21, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4×4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.

ncorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.

Standard level products feature integrated (optional) white and/or amber position light function for added styling and safety benefits. Alongside the premium design of the lights themselves, you can be sure your Triple-R product will impress even before the sun goes down! High efficiency 11W LEDs deliver impressive distance illumination albeit with not quite the same left/right visibility that you otherwise find with the equivalent Elite level products. A slightly taller up/down spread does however ensure suitability when mounting high on a vehicle such as a truck cab or roof of a van or other light commercial vehicle.

Product Features:

• Highly efficient 11W LED technology (upgraded for 2020/21)
• 5000K LED colour temperature and 80CRI maximises sharpness and definition

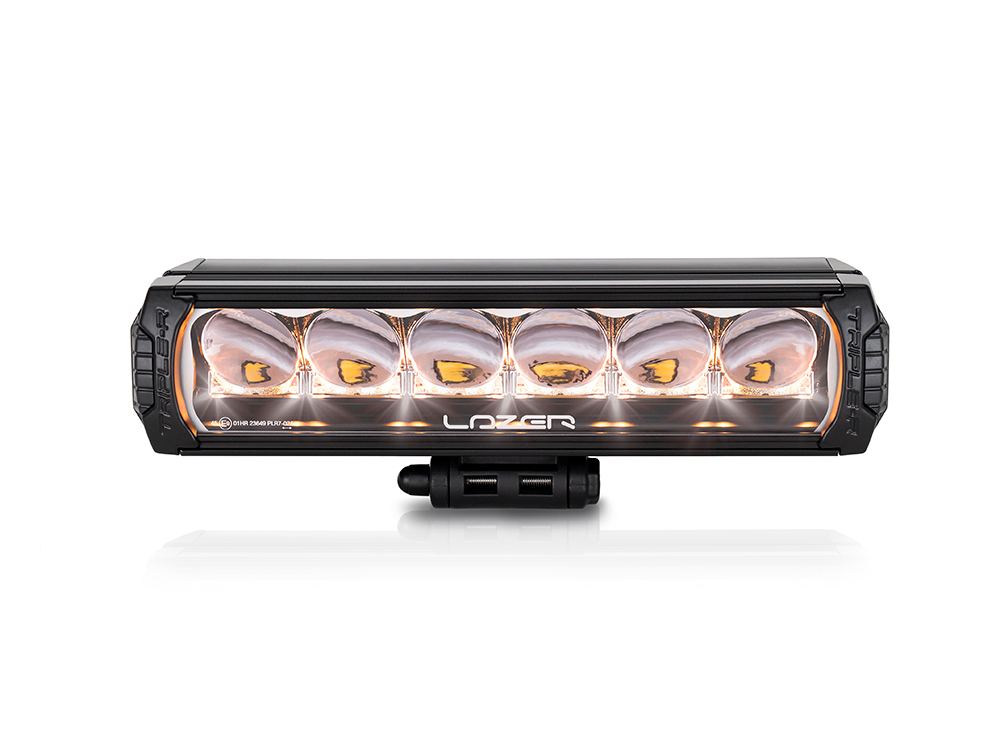

• Integrated white and amber position light function
• Ultra-reflective vacuum-metallised optics deliver spot beam pattern
• UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 7 position/side light function (white only)
• Contemporary lamp design
• Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

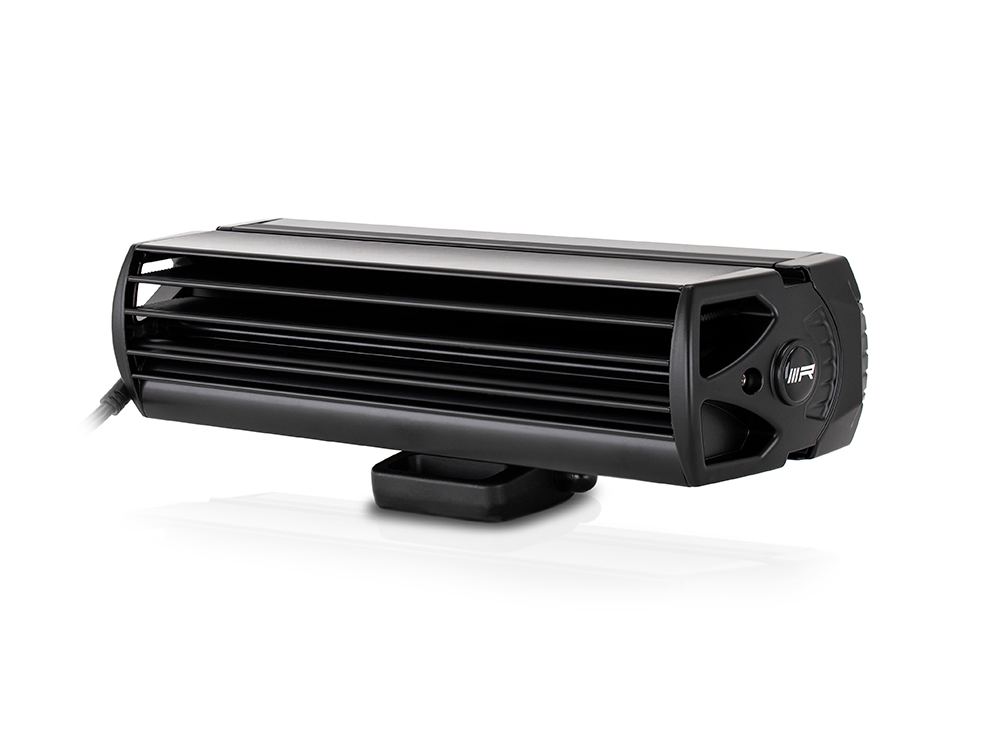

• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 10
• IP67 watertight
• 5-year warranty
• Supplied with pre-wired male/female 3-pin Superseal connectors
• Designed & manufactured in UK

Technical Specifications:

• Voltage Range (DC): 10-32V
• Weight: 1.34 Kg
• Total Luminous Flux: 6930 Lm
• Colour Temperature: 5000k
• Number of High Output LEDs: 6
• Power Consumption: 66 W
• Current Draw (at 14.4V): 4.6 Amps

DIMENSIONS:

• Width: 322 mm
• Depth: 105 mm
• Height: 73 mm

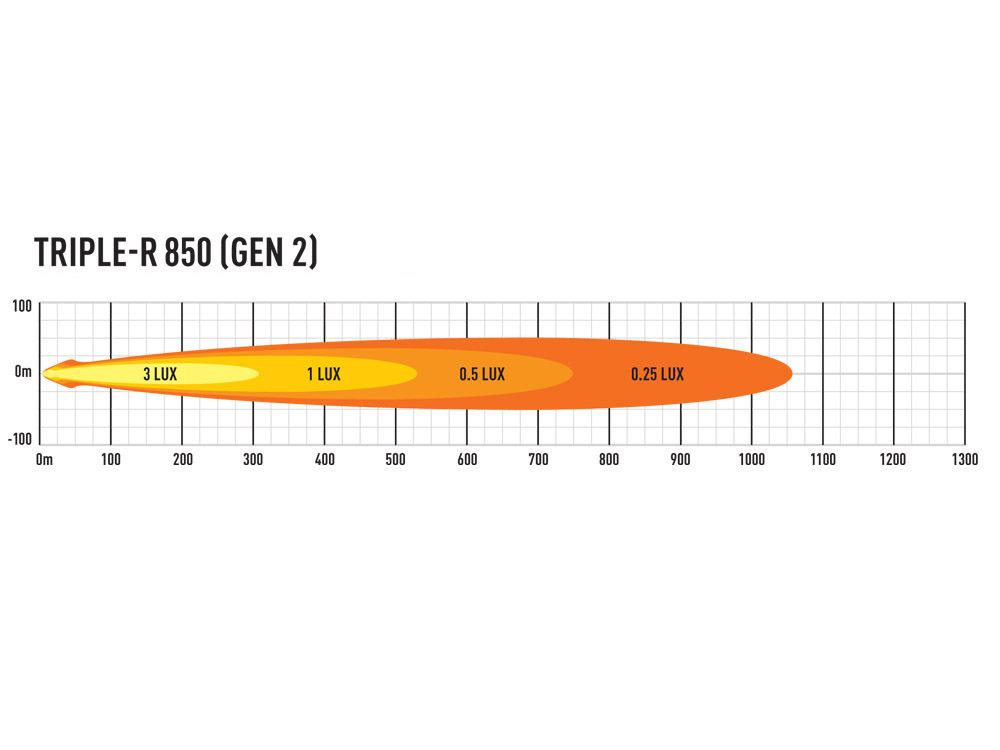

PHOTOMETRIC DATA:

• Horizontal Beam Angle: 19 Deg
• 0.25 lx: 1061 m
• 0.5 lx: 750 m
• 1 lx: 530 m
• 3 lx Line: 306 m

CERTIFICATION:

• High Beam: ECE R112
• ECE Reference: 45
• Position Light (White):ECE R7

Whats included:

• Triple-R 850 LED lamp
• 1x Centre Mount
• Installation Instructions
