Lazer Triple-R 750 Beacon – Auxiliary Light

•

What’s New?

• Flash-To-Dim dual output technology

• Lower reference number: 12.5

• UNECE Reg 65 (XA1) approved integrated warning light / beacon function

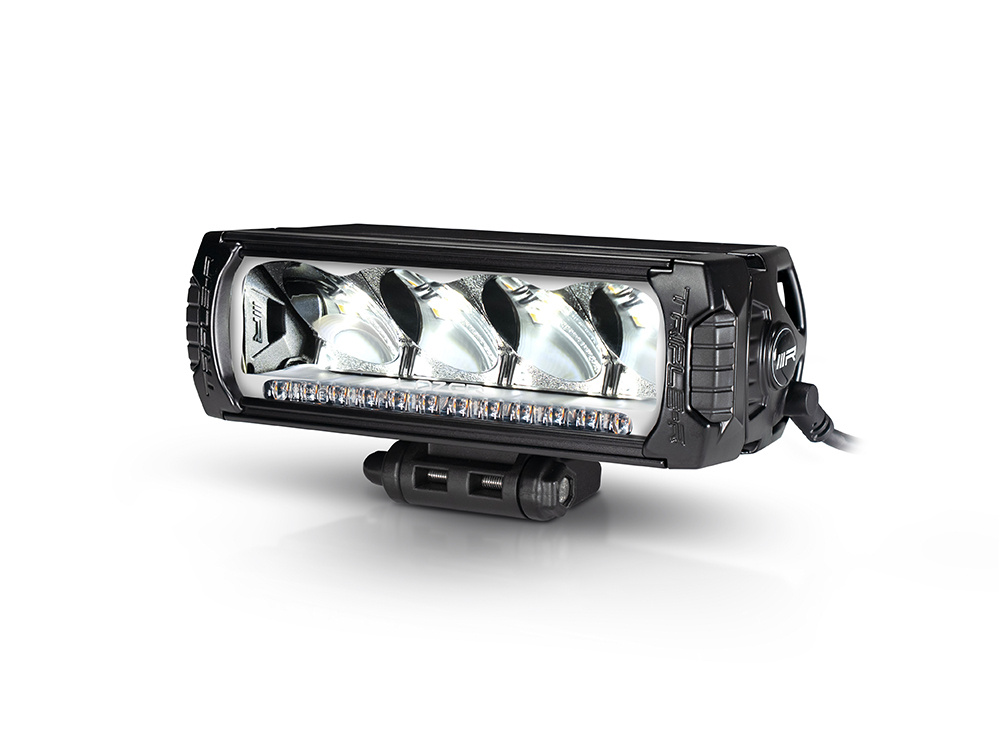

The Triple-R 750 is a high-performance LED auxiliary light that combines a powerful driving beam, an integrated flashing warning light, and a position light—all in one sleek and stylish package. This versatile lamp is specifically designed for passenger vehicles, off-road 4x4s, light commercial vehicles, and heavy-duty trucks. Now available with integrated beacon functionality, it enhances visibility and safety in all driving conditions.

Powerful and Precise Beam Pattern

The optics of the Triple-R 750 produce a focused spot beam, making it ideal for road use. With a light output of 5,400 lumens and a 1 lux reach of 442 meters, it ensures outstanding long-range visibility. Thanks to its dual-output technology, the lamp is ECE R149 approved for road use (in low output mode), and the flash-to-dim function allows for quick adjustment of brightness—perfect for reducing glare near reflective road signs.

Flashing Warning Light and Position Light – Enhanced Safety

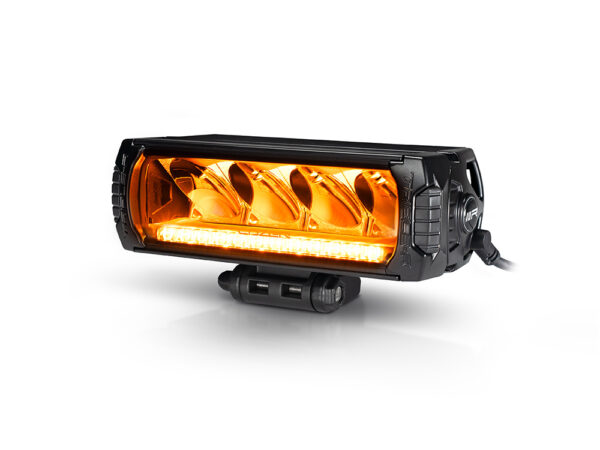

The lamp’s flashing amber warning light is UNECE R65 (XA1) approved and offers two distinct flash patterns, which can be synchronized across multiple units. In addition, you can select either a white or amber position light (with UNECE R148 approval for the white option), allowing seamless integration with your vehicle’s existing lighting setup.

Modern Design – Premium Quality

The Triple-R 750 features a modern, aggressive design that perfectly complements contemporary vehicles. Engineered and manufactured in the UK, the lamp boasts premium build quality, including a robust anodized and powder-coated aluminum housing, a virtually unbreakable polycarbonate lens, and IP68-rated waterproofing. A 5-year manufacturer’s warranty ensures long-term reliability.

Features:

• High-density premium-grade 11W LED technology

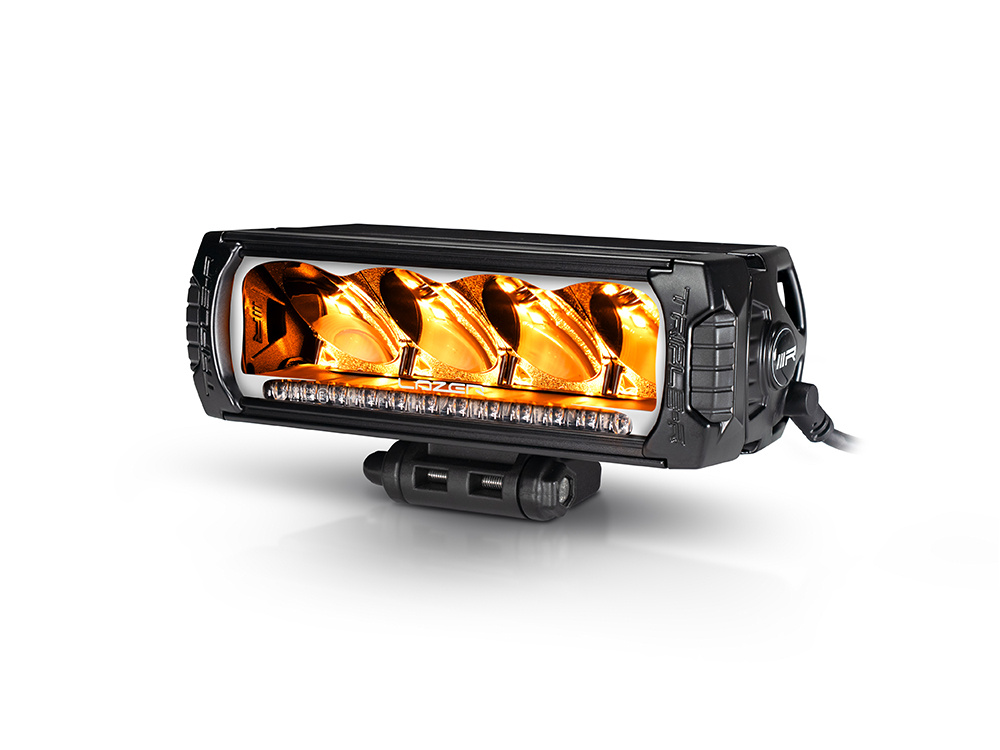

• Integrated white or amber position light – UNECE Reg148 approved (white only)

• Integrated amber flashing warning light – UNECE Reg65 (XA1) approved

• ECE-approved for road use as a driving light (dual-output technology) – UNECE Reg149

• Ultra-reflective vacuum-metallized optics deliver a focused beam pattern

• Modern lamp design

• Includes versatile “Centre Mount” system and fixed side-mounting points (brackets sold separately)

• CAE-optimized cooling fins for improved thermal management

• Anodized pre-treatment and automotive-grade powder coat finish for maximum corrosion and chemical resistance

• Advanced electronic thermal management

• "Unbreakable" hard-coated polycarbonate lens

• IP68-rated waterproofing – submersible to 1.5m for 30 minutes

• 5-year warranty

• Supplied pre-wired with 6-pin Superseal connectors (male/female)

• Designed and manufactured in the UK



Technical Specifications: Boost / E-Mark Mode

• Input Voltage: 10–32V

• Power Consumption: 52W / 10W

• Luminous Flux: 5400lm / 3078lm

• Color Temperature: 5000K

• Weight: 1kg

• Warranty: 5 years

• IP Rating: IP68

• Connector: 6-pin Superseal

• Certifications:

  • Driving Light: ECE R149 – Ref: 12.5 (E-Mark mode)

  • Position Light (White): ECE R148

  • EMC: ECE R10

  • Warning Light: ECE R65 (XA1)

•

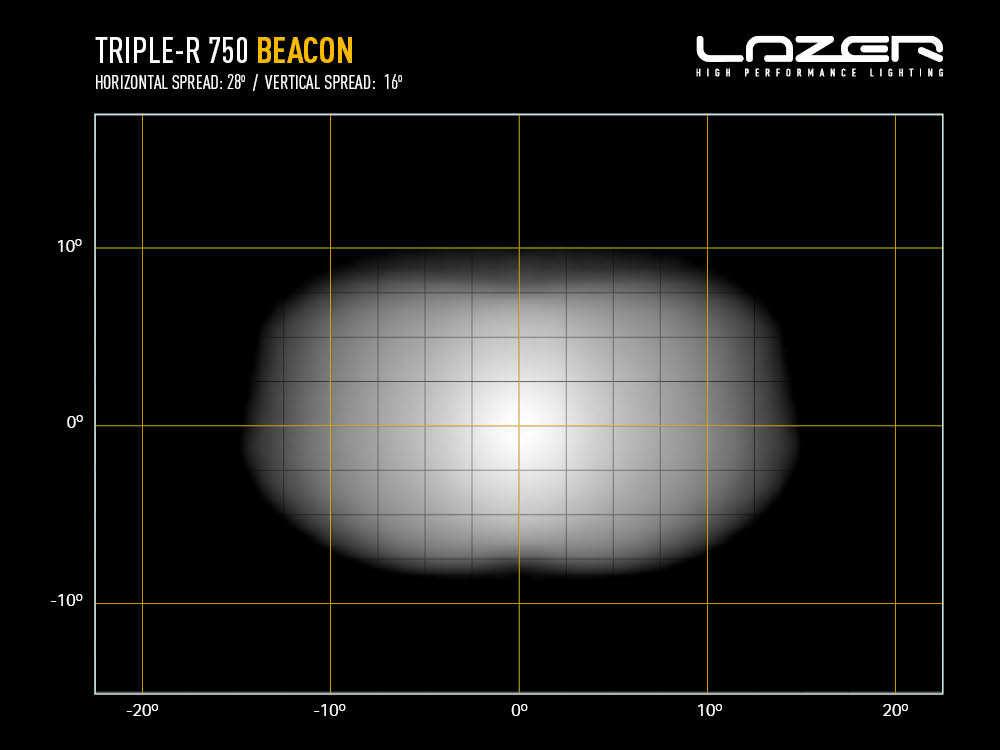

Beam Pattern:

• Horizontal / Vertical Beam Angle: 28° / 16°

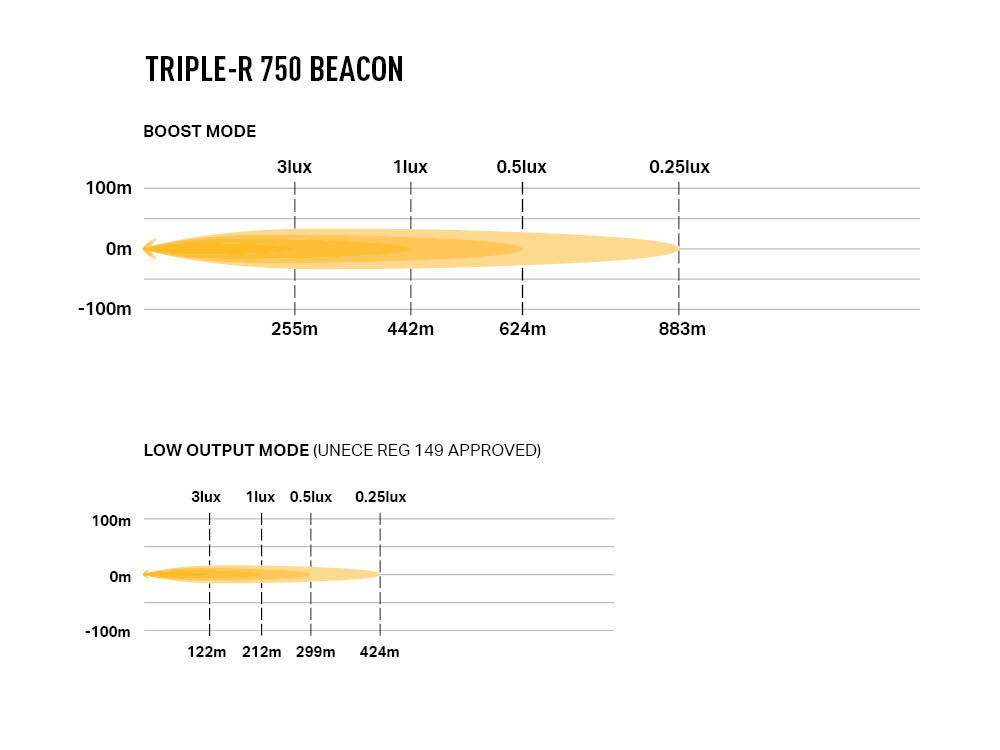

• Range:

  • 0.25 lux: 883 m / 424 m (Boost / E-Mark)

  • 0.5 lux: 624 m / 299 m (Boost / E-Mark)

  • 1 lux: 442 m / 212 m (Boost / E-Mark)

  • 3 lux: 255 m / 122 m (Boost / E-Mark)

•

Dimensions:

• Width: 230 mm

• Depth: 105 mm

• Height (without bracket): 73 mm

• Height (with bracket): 103 mm

Package Includes:

• Triple-R 750 Beacon LED Light

• Centre Mount Bracket

• Installation Instructions
