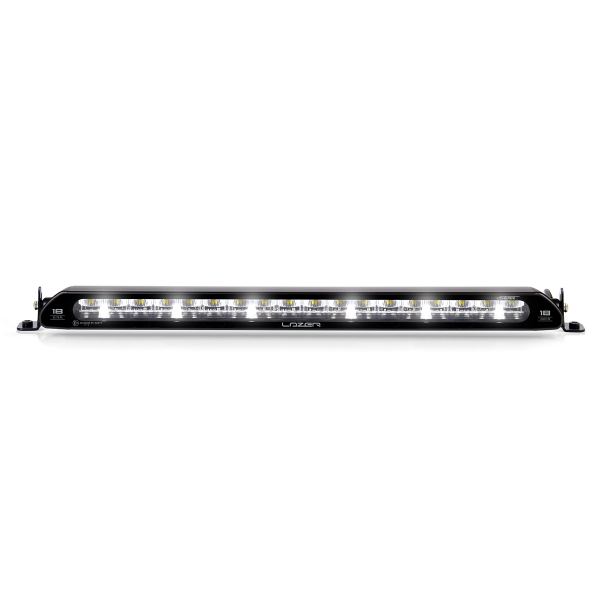

Lazer Linear 18 Elite with position light

Description

A perfect choice for road trafic and motorsport!

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

Product features:

• Integrated position light function
• Flexible mounting options – anti-theft side mounting brackets included
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 7 for on-road position light function
• UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
• UNECE approved Reg 10
• IP67 watertight
• 5 year warranty
• Designed and manufactured in UK

Technical Specifications:

• Voltage Range: 10-32V
• Weight: 1090 gr
• Total luminous Flux: 12150 lm
• Power Consumption: 126 Watts
• Number of High Output LEDs:  36

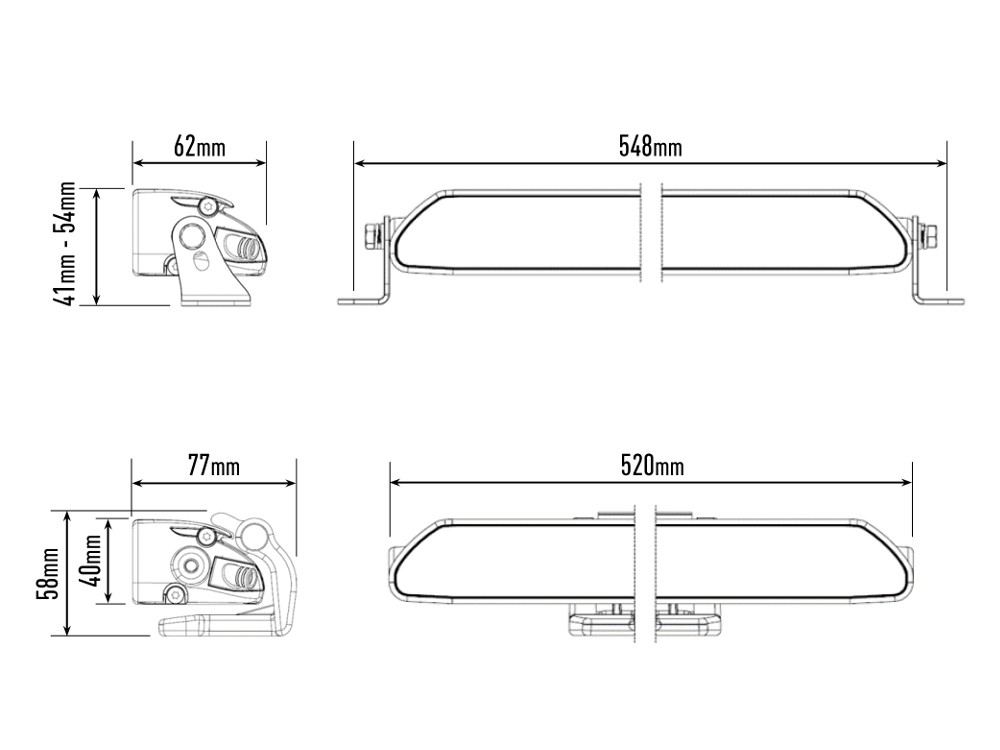

DIMENSIONS:

• Width: 532 mm
• Depth: 62 mm
• Height: 40 mm

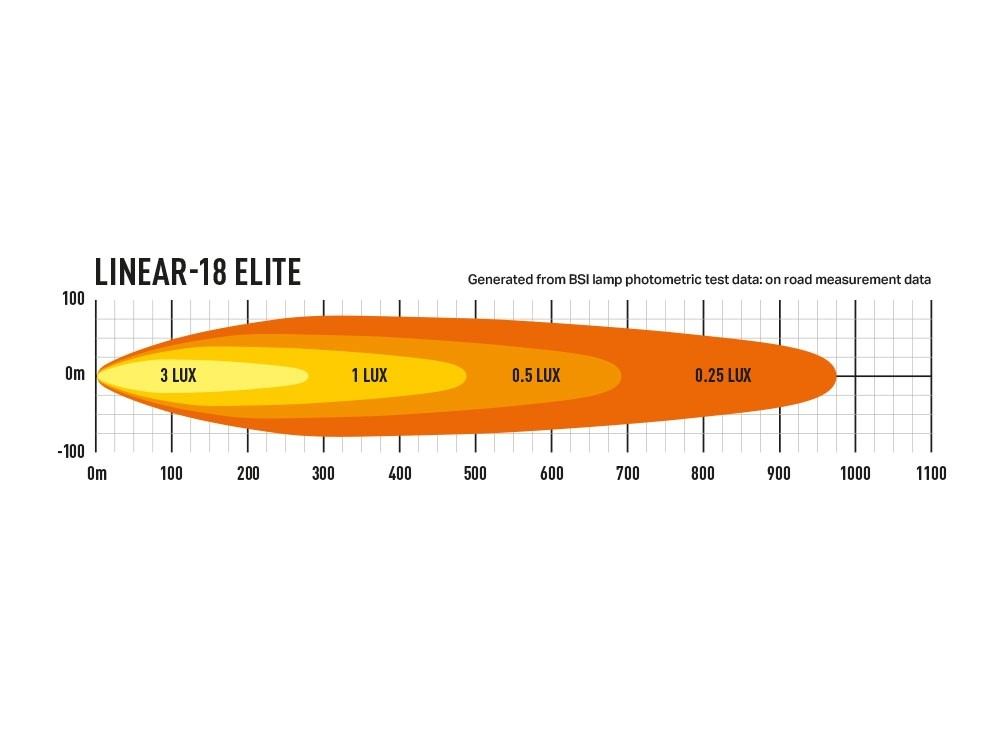

PHOTOMETRIC DATA:

• Horizontal Beam Angle: 64 Degrees
• 0.25 lx Line: 975 metres
• 0.5 lx Line: 690 metres
• 1 lx Line: 488 metres
• 3 lx Line: 282 metres

CERTIFICATION:

• High Beam ECE R112
• ECE Reference: 45
• Position Light: ECE R7

What’s included:

• Linear-18 Elite (with position light) LED Lamp
• Anti-theft side mount
• Installation instructions
