Lazer Linear 12 Grill-Kit V23 Scania 2017-

Description

Discreet and high-performance grill-kit solution for Scania NextGen 2017– models.

The Lazer Linear 12 grille-kit is designed for professional use where maximum visibility, OEM-style integration, and long service life are required.

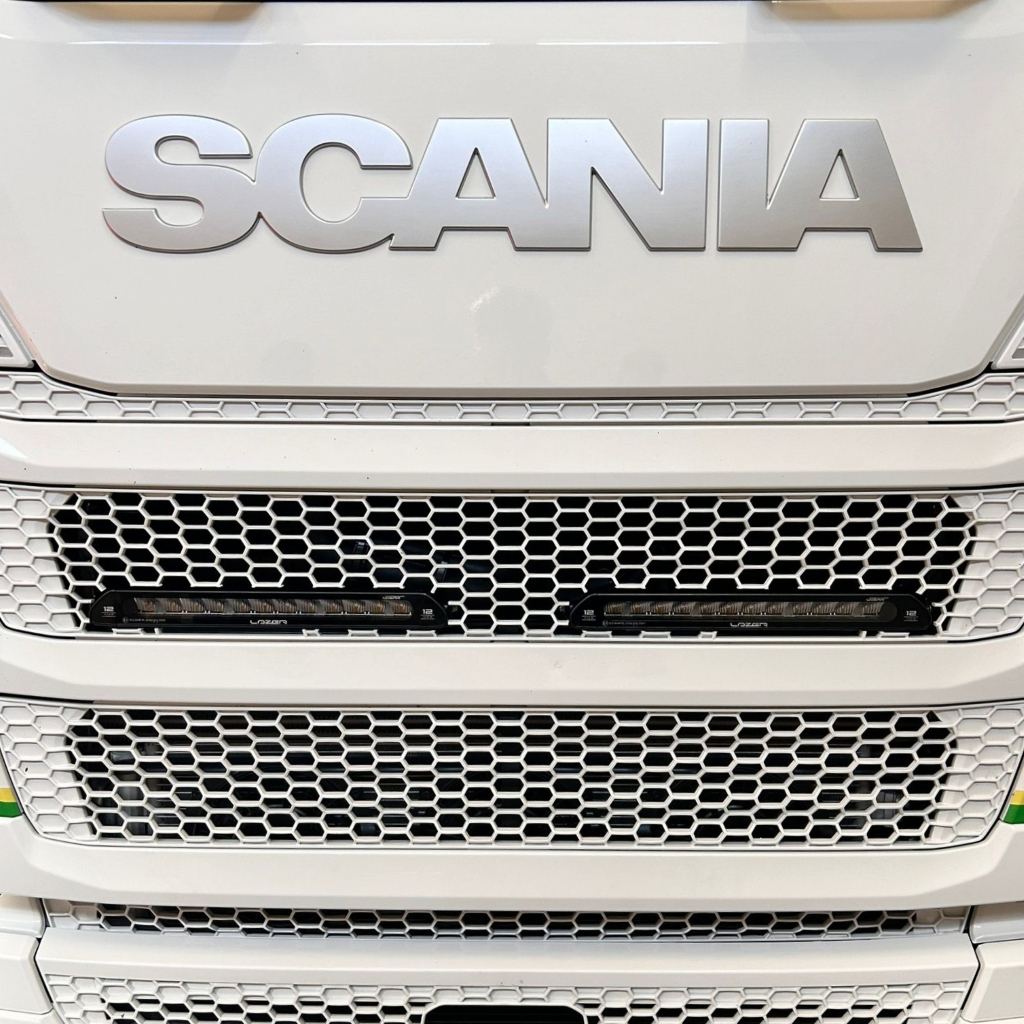

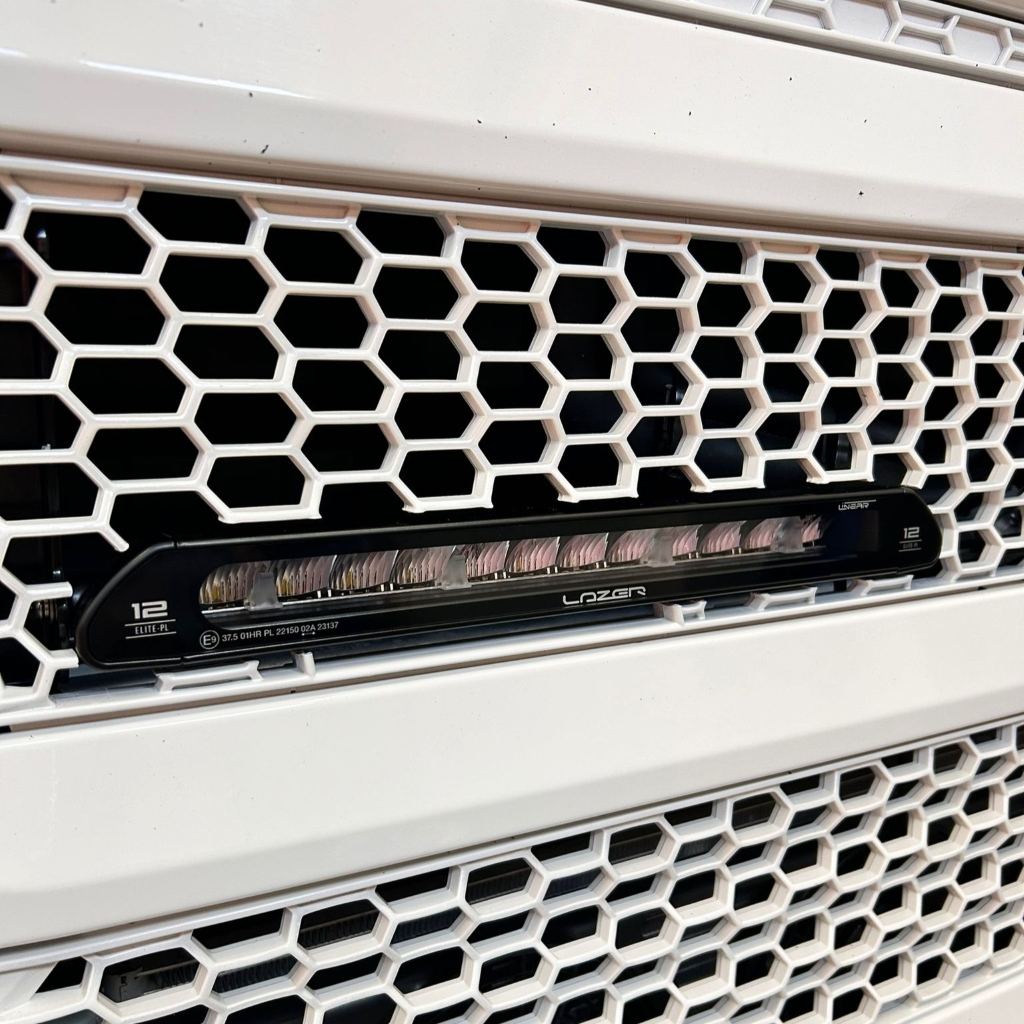

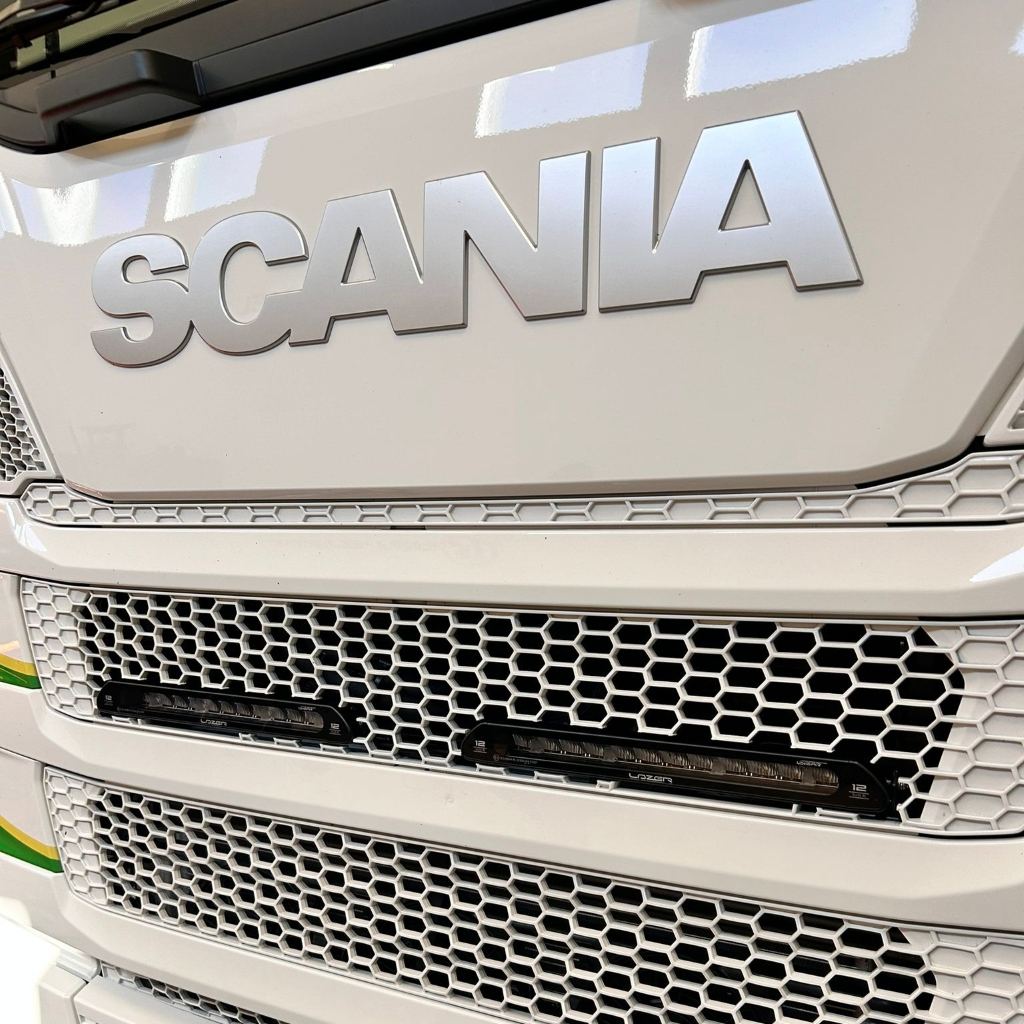

At only 40 mm in height, the Linear 12 auxiliary lights integrate seamlessly into the Scania NextGen grille without adding bulk or unnecessary structures. The result is a factory-fitted appearance that delivers exceptional performance in dark and demanding driving conditions.

The Linear lights utilise high-performance 3W LED technology with a precisely optimised combined beam pattern, providing effective illumination both at long range and to the roadside.

• Total luminous flux: 16,200 lm (Elite / Elite PL), 9,000 lm (STD)
• Comfortable 5000K colour temperature reduces eye strain during long drives

OEM-style and aerodynamic installation

The lighting package is designed specifically for the Scania NextGen grille, ensuring a clean fit and professional finish.

The aerodynamic design reduces wind noise and preserves the vehicle’s original appearance.

Features:

• IP68-rated water and dust protection
• Hard-coated polycarbonate lenses
• Vibration-resistant construction
• 5-year warranty

The light is suitable for year-round use in demanding weather conditions.

Certification:

• High Beam: ECE R112
• Reference number: 2 × 37.5 (Elite / Elite PL), 2 × 27.5 (STD)
• Elite PL model also includes an ECE R7-approved white position light

Technical specifications (Elite PL / Elite / STD):

• Voltage Range (DC): 10–32V
• Power Consumption: 168 Watts / 168 Watts / 84 Watts
• Current Draw (at 14.4V) 11.6 Amps / 11.6 Amps / 5.84 Amps
• Total luminous flux: 16,200 lm / 16,200 lm / 9,000 lm
• Measured output: 11,534 lm / 11,534 lm / 6,408 lm
• Colour temperature: 5000K
• Dimensions: 382 × 40 × 62 mm

Package includes:

• 2 × Lazer Linear 12 auxiliary lights

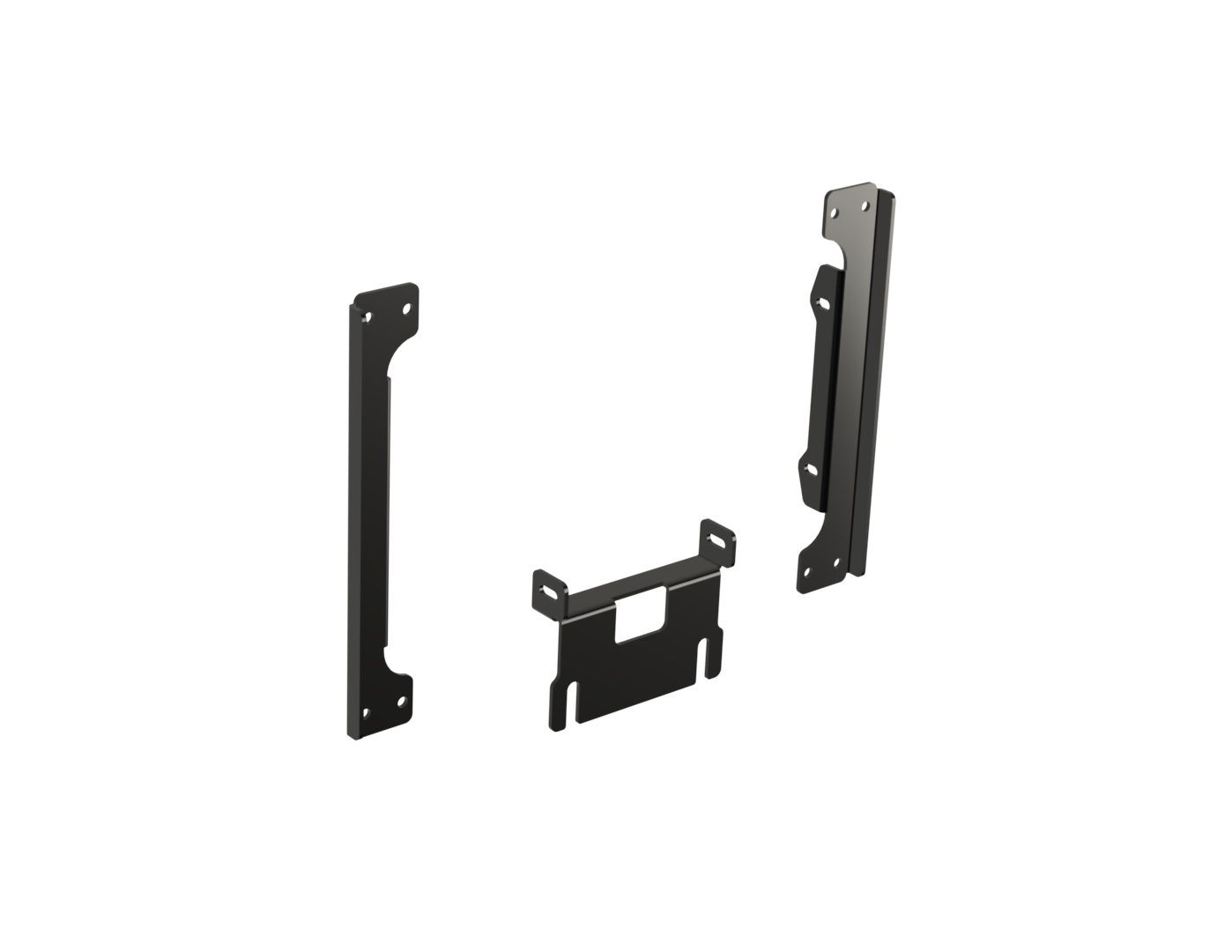

• Mounting brackets
