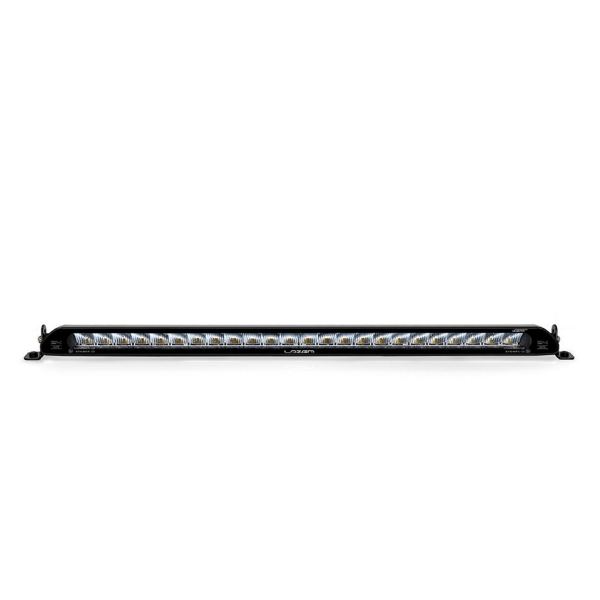

Lazer Linear 24 Elite

Description

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

Linear-18 Elite and Linear-24 Elite lights support dual-output functionality, where in certain countries the requirement is for a lower UNECE E-mark reference. The lower output mode is enabled through application of the ‘Linear E-mark Cap’ – sold separately.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

Product features:

• Flexible mounting options – anti-theft side mounting brackets included
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• Dual-output mode allows the light to be operated at a lower UNECE E-mark reference (requires Linear E-Mark Cap – sold separately)
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
• UNECE approved Reg 10
• IP67 watertight
• 5 year warranty
• Designed and manufactured in UK

Technical Specifications:

• Voltage Range: 10-32V
• Weight: 2000 gr
• Total luminous Flux: 18000 lm
• Power Consumption: 188 Watts
• Number of High Output LEDs:  24

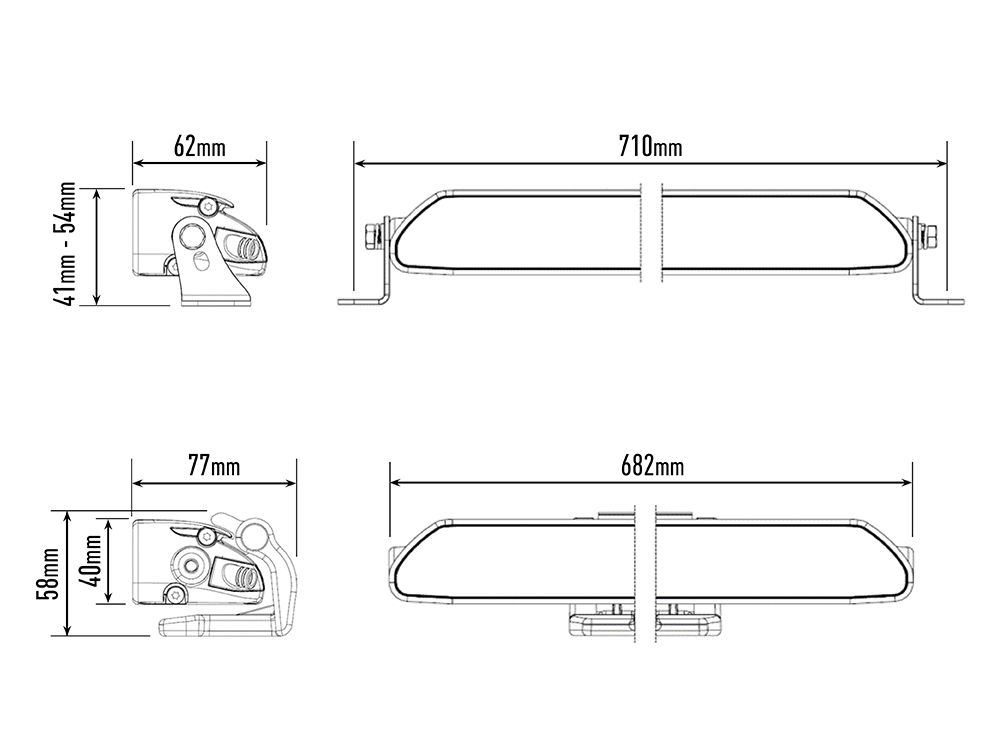

DIMENSIONS:

• Width: 682 mm
• Depth: 62 mm
• Height: 40 mm

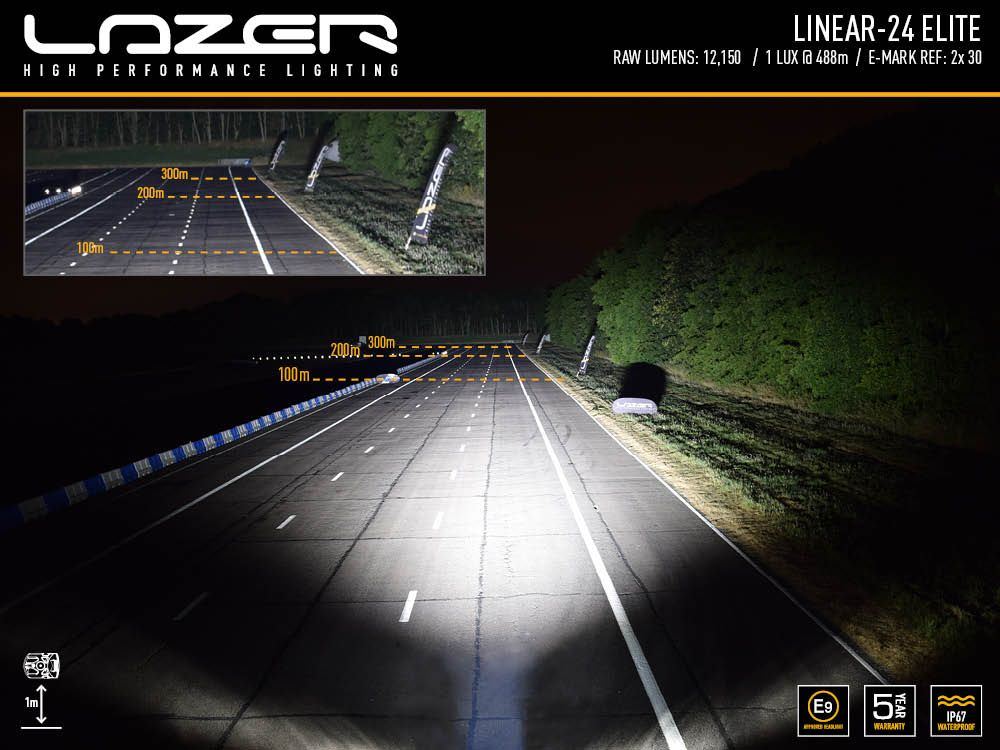

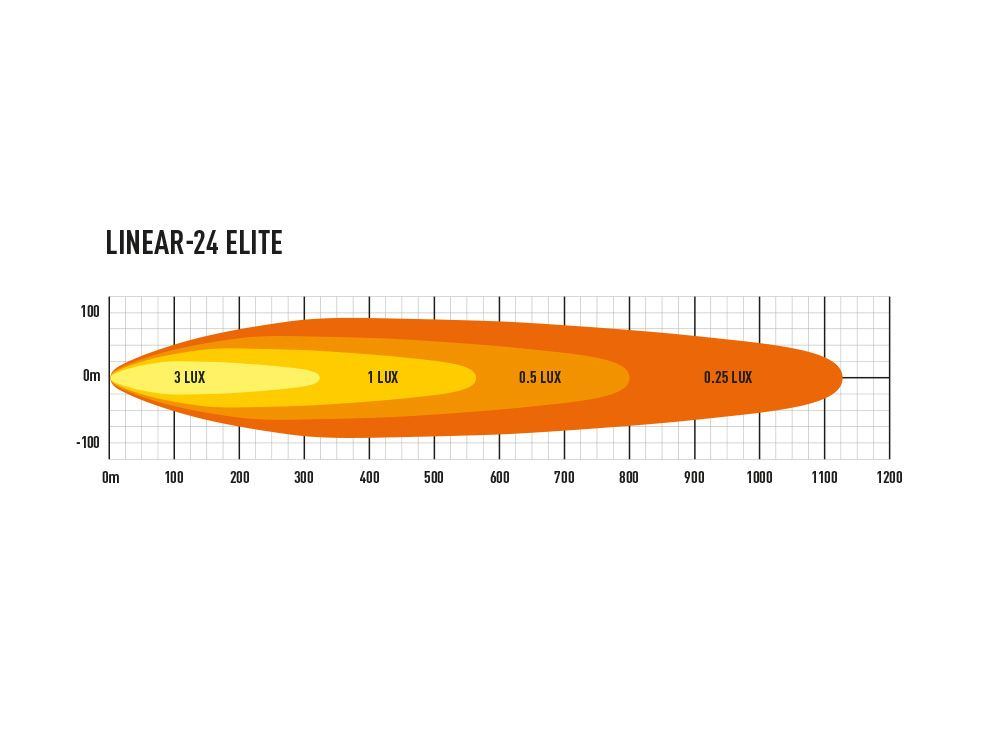

PHOTOMETRIC DATA:

• Horizontal Beam Angle: 64 Degrees
• 0.25 lx Line: 1126 metres
• 0.5 lx Line: 796 metres
• 1 lx Line: 563 metres
• 3 lx Line: 325 metres

CERTIFICATION:

• High Beam ECE R112
• ECE Reference: 2×30, (2x 17.5 – With E-Mark Cap)

What’s included:

• Linear-24 Elite
• Anti-theft side mount
• Installation instructions
