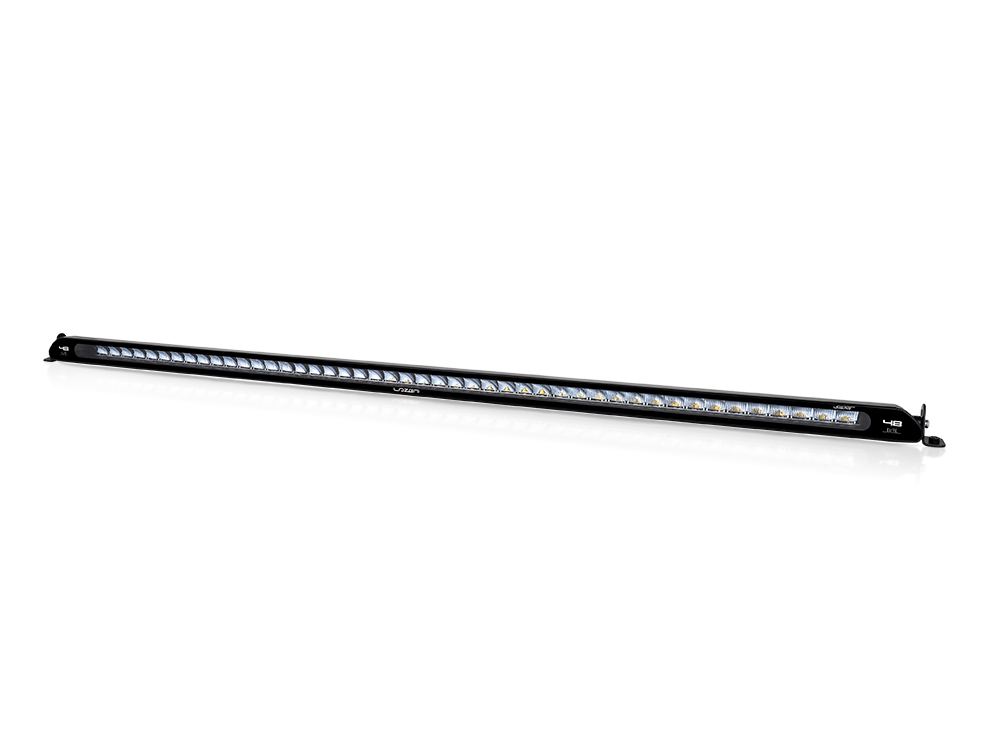

Lazer Linear 48 Elite

Description

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

The products of the Linear series are particularly suitable for installation on the roof, because the aerodynamic structure of their stylish aluminum housing eliminates almost all noise caused by the wind.

All Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use), (with the exception of: Linear-48, Linear-36 Elite, Linear-42 Elite and Linear-48 Elite). Elite level products boasting twice the light output compared to the equivalent Standard version.

Product features:

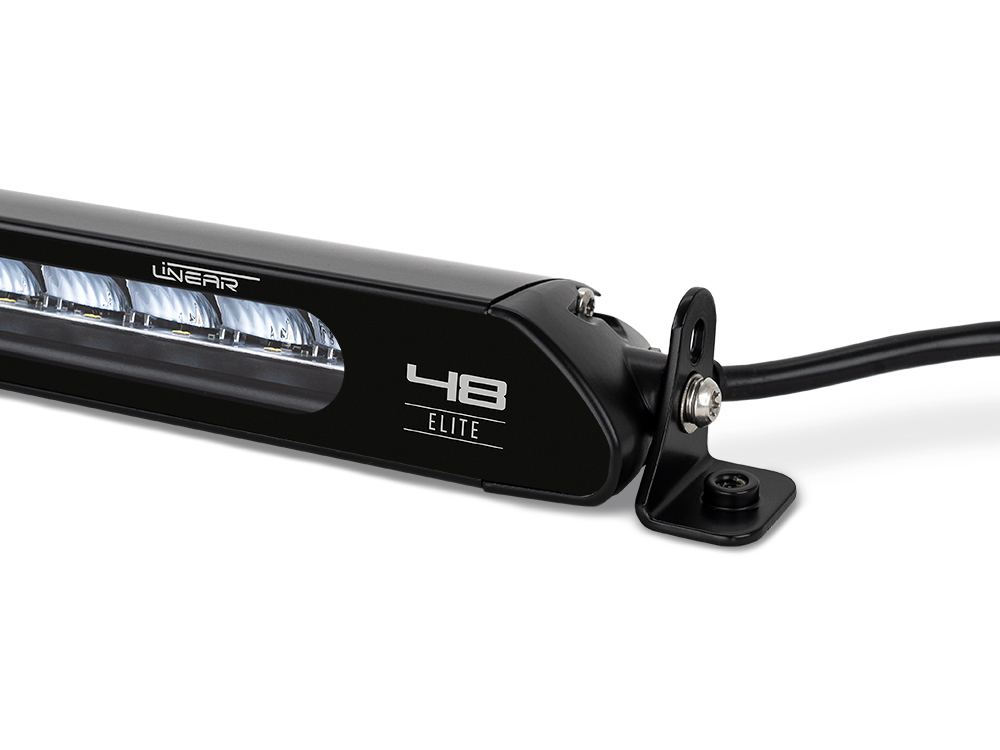

• Flexible mounting options – anti-theft side mounting brackets included
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 10
• IP67 watertight
• 5 year warranty
• Designed and manufactured in UK

Technical Specifications:

• Voltage Range: 10-32V
• Weight: 4 kg
• Total luminous Flux: 34800 Lm
• Total Driver ”FOV” Flux: 24986 Lm
• Color temperature: 5000K
• Number of high output LEDs: 96
• Power Consumption: 364 W
• Current Draw (at 14.4V): 25.3 Amps

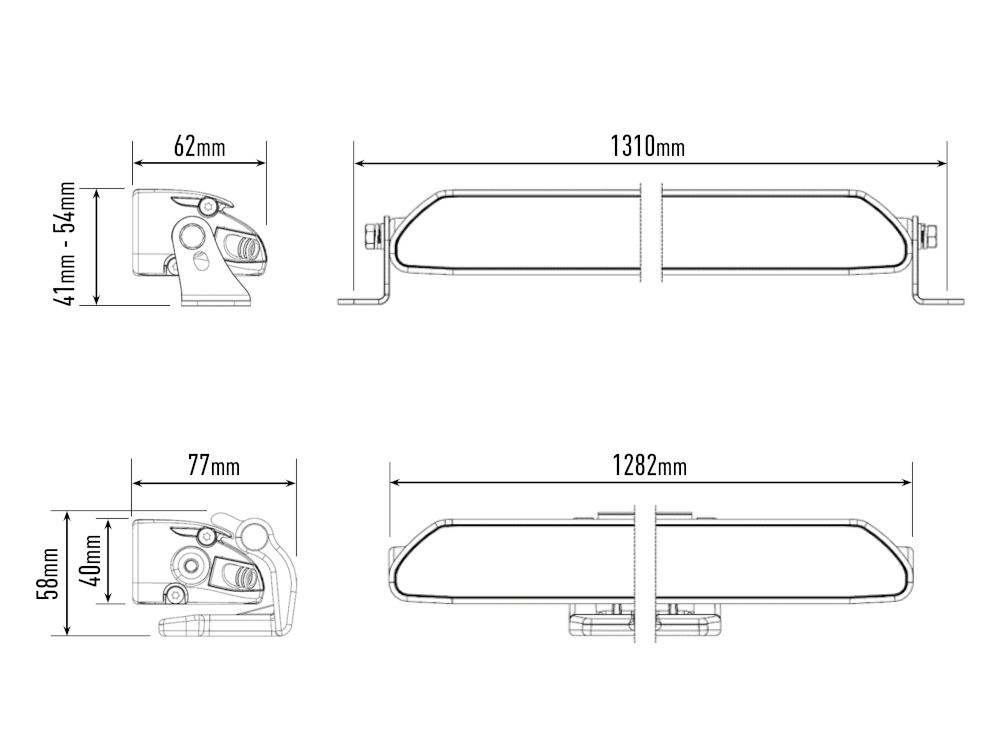

Dimensions:

• Width: 1282 mm
• Depth: 62 mm
• Height: 40 mm

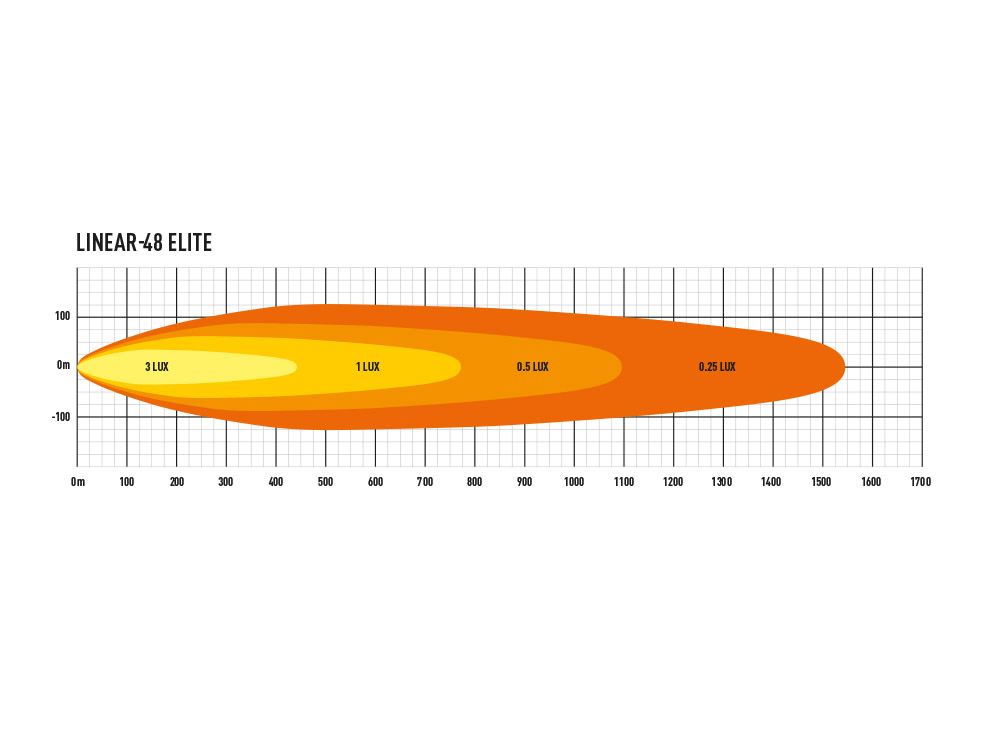

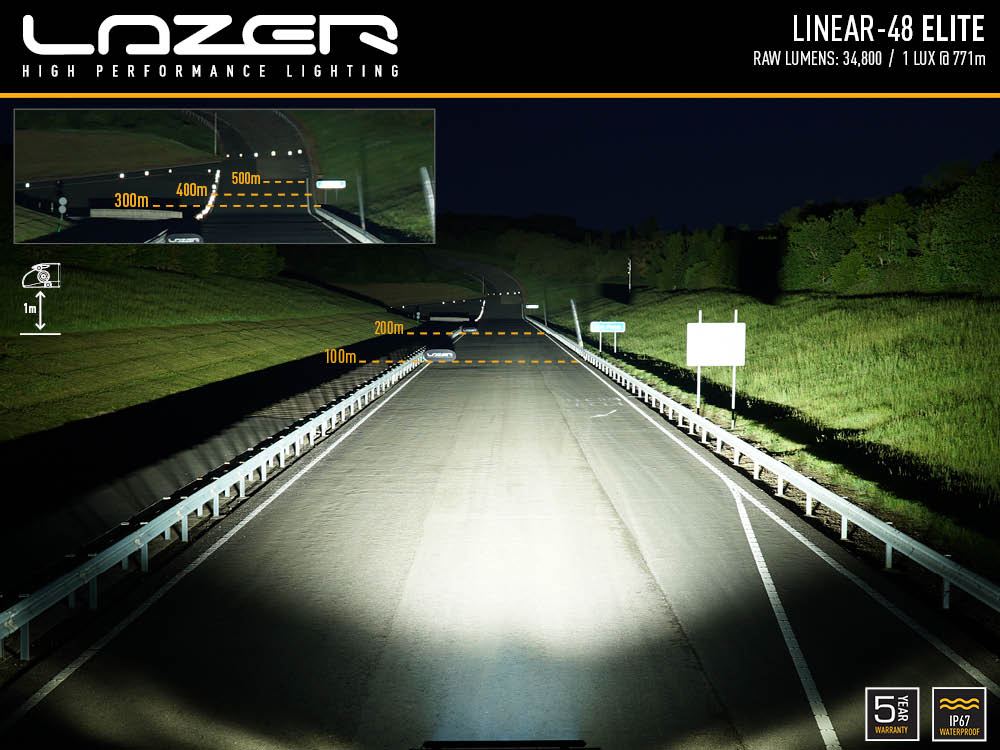

Photometric Data:

• Horizontal Beam Angle: 60
• 0.25 lx Line: 1543m
• 0.5 lx Line: 1091m
• 1 lx Line: 771m
• 3 lx Line: 445m

Whats Included:

•     Linear 48 Elite LED Lamp
•     Anti-Thef Side Mount
•     Single-Lamps Wiring Harness
•     Installation Instructions
