Description
Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.
Product features:
- Flexible mounting options – anti-theft side mounting brackets included
- Electronic thermal management system optimises light output to preserve longevity of the LEDs
- Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
- CAE optimised heatsink offers improved thermal dynamics
- Over voltage protected
- Reverse polarity protected
- ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
- UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
- UNECE approved Reg 10
- IP67 watertight
- 5 year warranty
- Designed and manufactured in UK
Technical Specifications:
- Voltage Range: 10-32V
- Weight: 2700 gr
- Total luminous Flux: 13500 lm
- Power Consumption: 126 Watts
- Number of High Output LEDs: 36

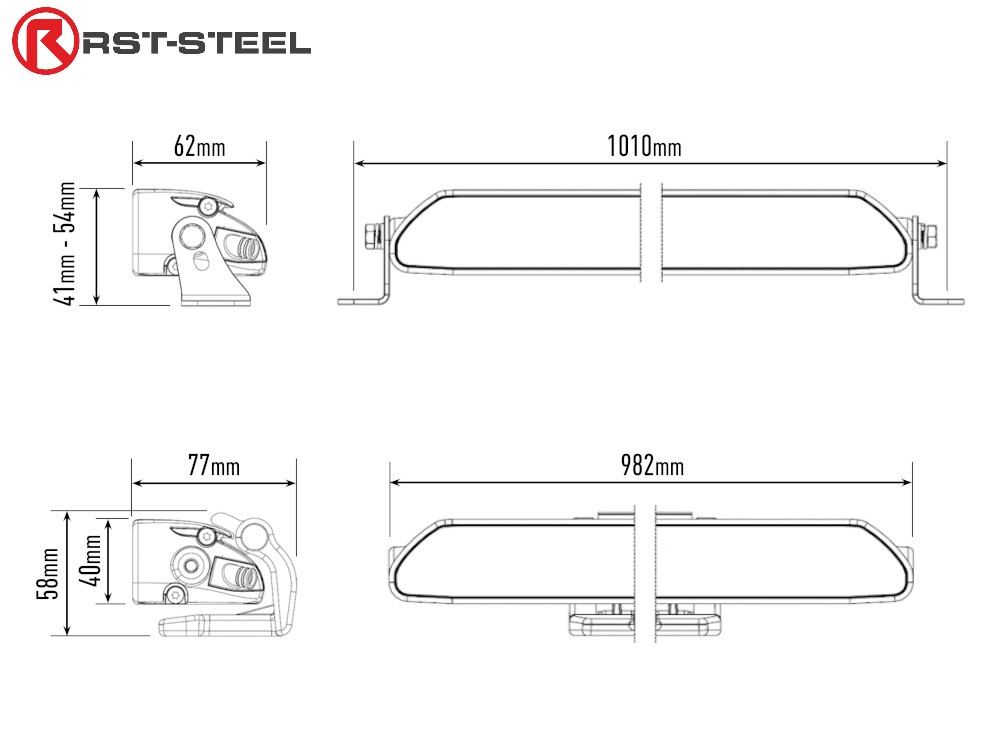

DIMENSIONS:
- Width: 986 mm
- Depth: 62 mm
- Height: 40 mm

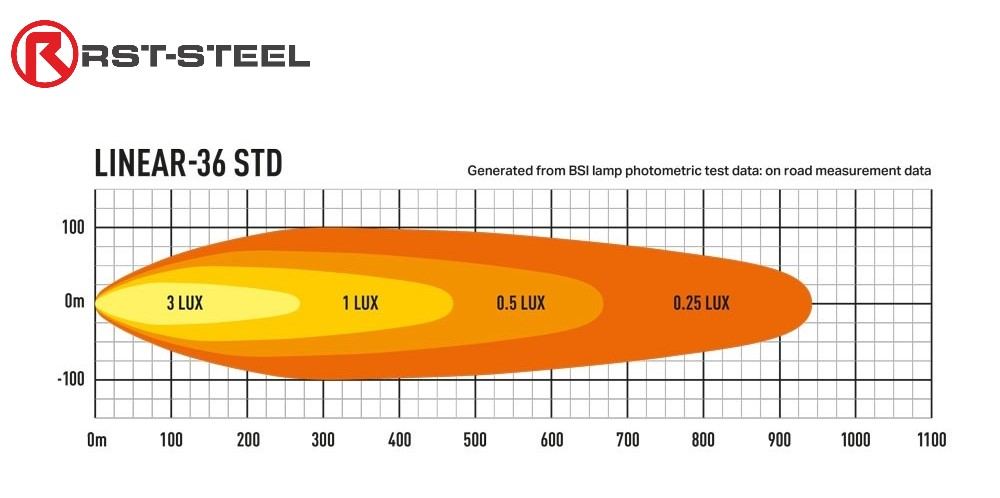

PHOTOMETRIC DATA:

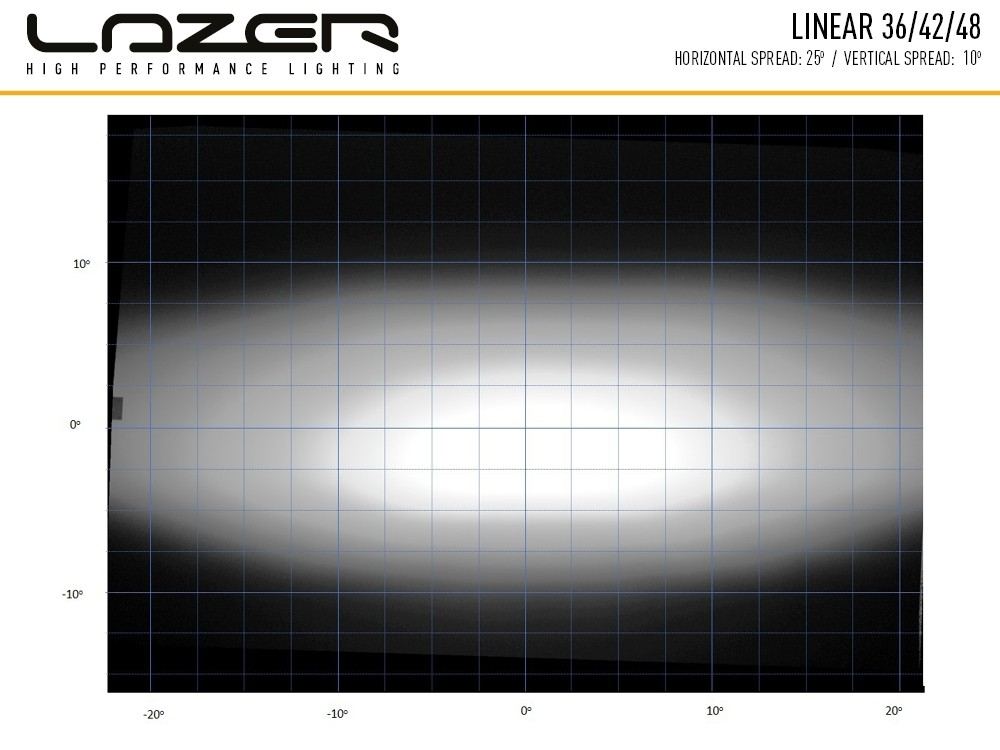

- Horizontal Beam Angle: 50 Degrees
- 0.25 lx Line: 940 metres
- 0.5 lx Line: 665 metres
- 1 lx Line: 470 metres
- 3 lx Line: 271 metres
CERTIFICATION:
- High Beam ECE R112
- ECE Reference: 2 x 30
What’s included:
- Linear-36 Elite LED Lamp
- Anti-theft side mount
- Installation instructions
Vehicle compatibility
Lazer Linear 36 STD fits the following brands/models:
Fits all vehicles and models.
