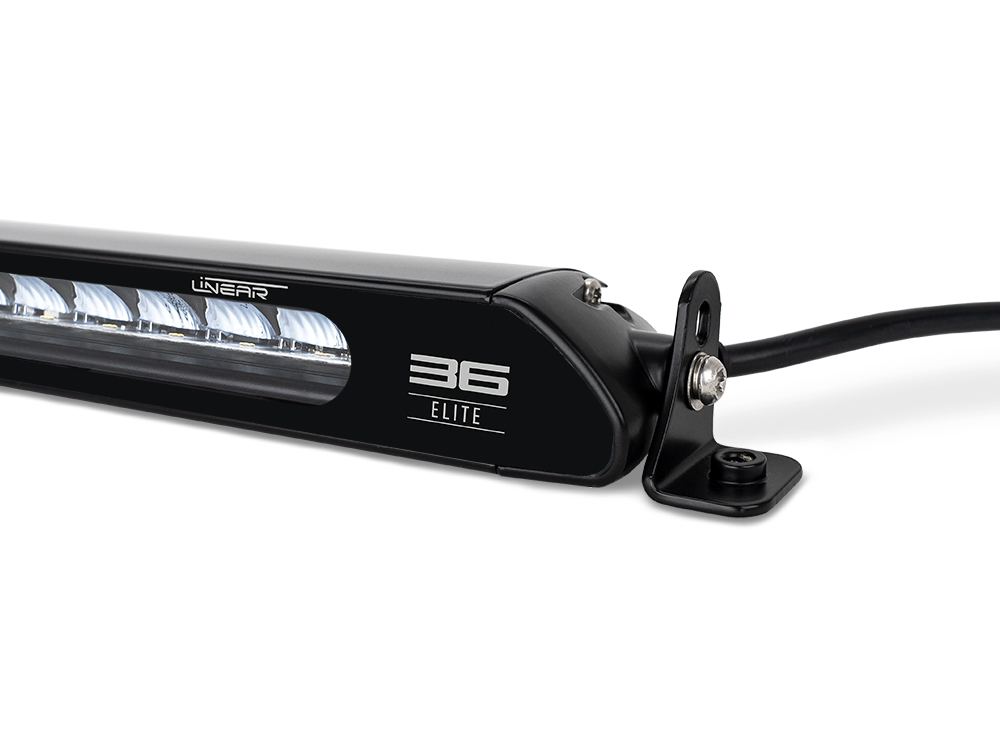

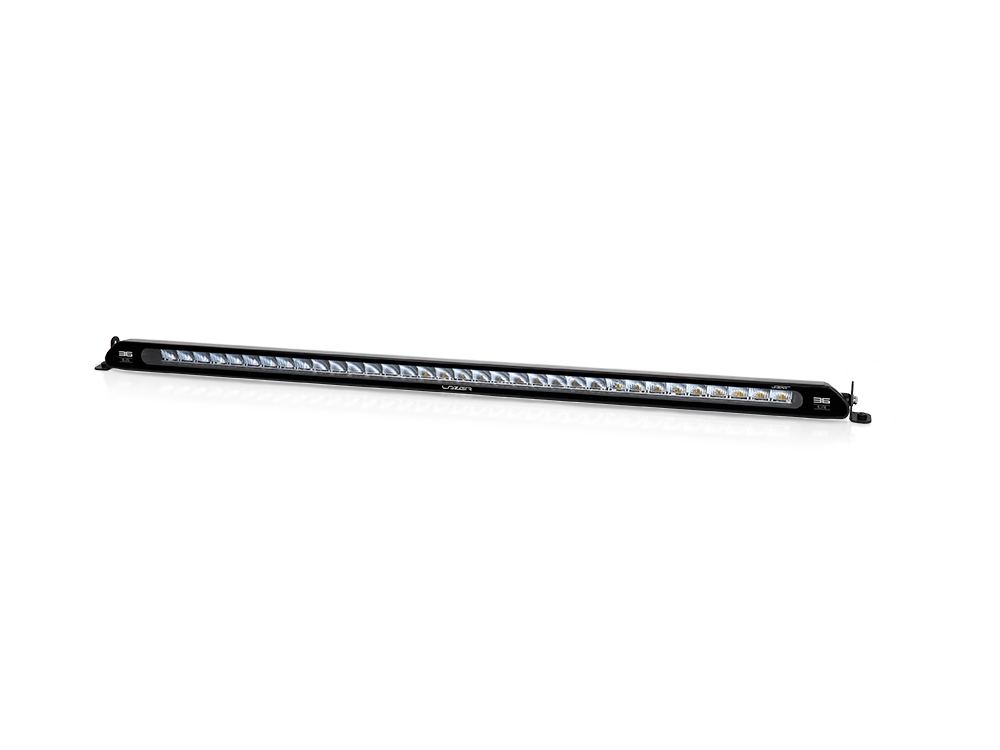

Lazer Linear 36 Elite

Description

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

All Linear Standard grade products are fully UNECE certified to Regulation 112 as Class B Driving lights for on-road use (with the exception of: Linear-48, Linear-36 Elite, Linear-42 Elite and Linear-48 Elite).

Product features:

• Flexible mounting options – anti-theft side mounting brackets included
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 10
• IP67 watertight
• 5 year warranty
• Designed and manufactured in UK

Technical Specifications:

• Voltage Range: 10-32V
• Weight: 3,5 kg
• Total luminous Flux: 29700 Lm
• Total Driver ”FOV” Flux: 21325 Lm
• Color temperature: 5000K
• Number of high output LEDs: 72
• Power Consumption: 308 W
• Current Draw (at 14.4V): 21.4 Amps

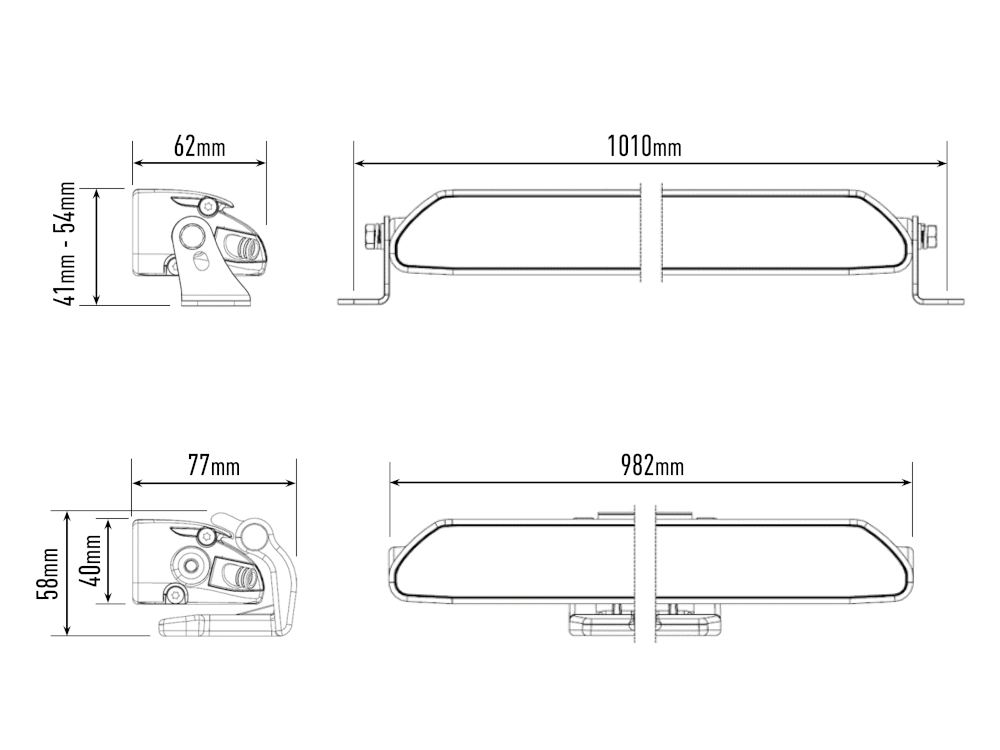

Dimensions:

• Width: 982 mm
• Depth: 62 mm
• Height: 40 mm

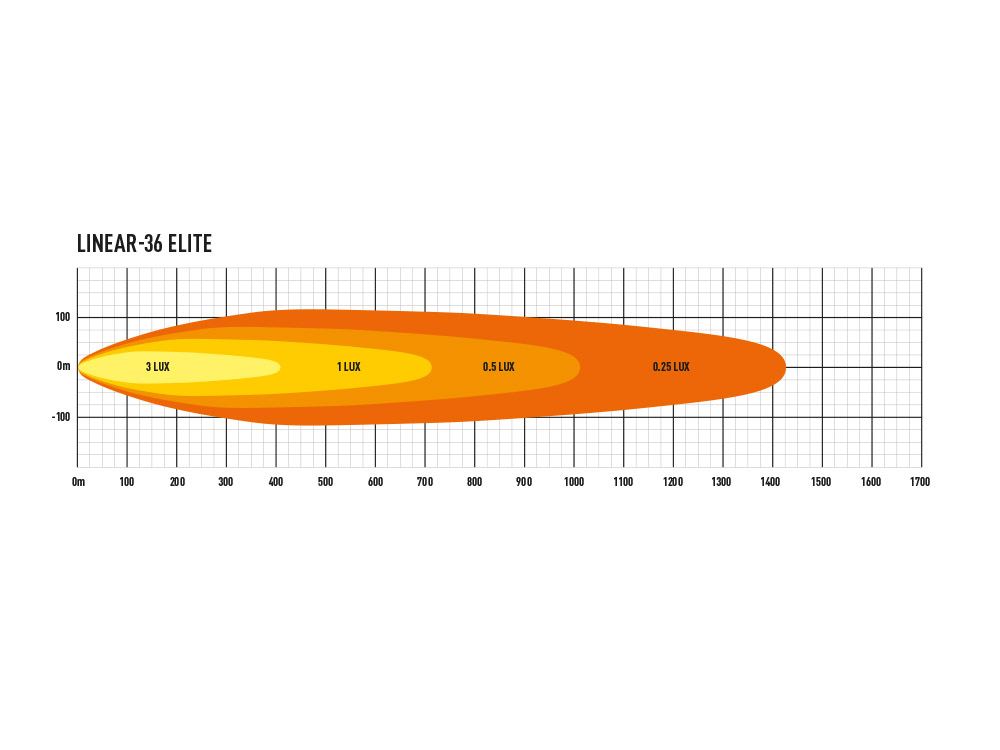

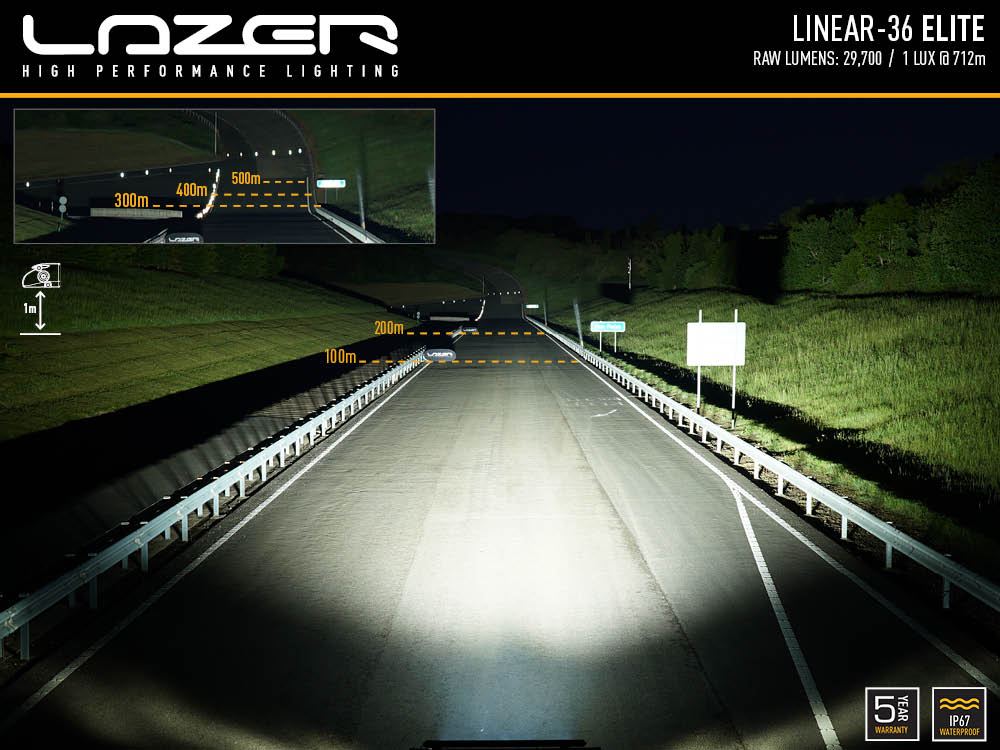

Photometric Data:

• Horizontal Beam Angle: 60
• 0.25 lx Line: 1423 m
• 0.5 lx Line: 1006 m
• 1 lx Line: 712 m
• 3 lx Line: 411 m

Whats Included:

•     Linear 36 Elite LED Lamp
•     Anti-Thef Side Mount
•     Single-Lamps Wiring Harness
•     Installation Instructions
