Auxiliary Light OZZ Square 3″

Description

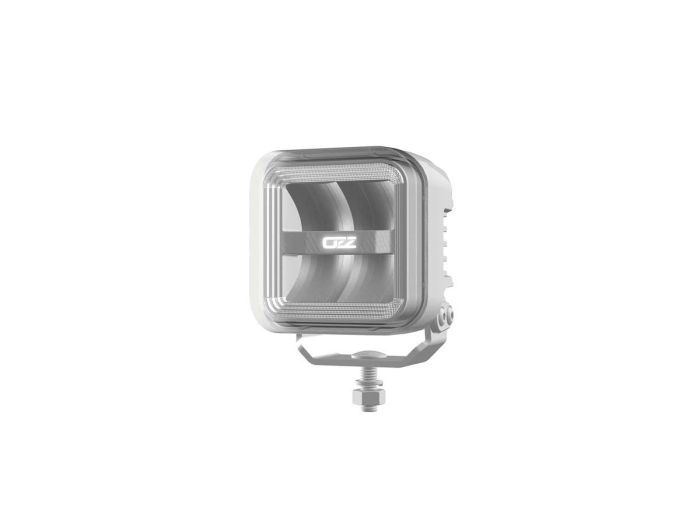

Auxiliary Light OZZ Square 3″

Designed to deliver top performance in a compact size, the SQR 3’’ features a dynamic start-up position light in both white and amber, adding a premium visual signature to any vehicle.

Despite its small size, it produces an impressive 3500 lumens with a bright and comfortable 5000 K color temperature for optimal visibility. In boost mode, the light reaches 1 lux at 375 meters — proving that performance is not limited by size.

Technical Specifications:

• Operating voltage: 10–32 V
• Actual power 12 V: 50 W
• Actual power 24 V: 46.6 W
• Measured luminous flux: 3500 lm

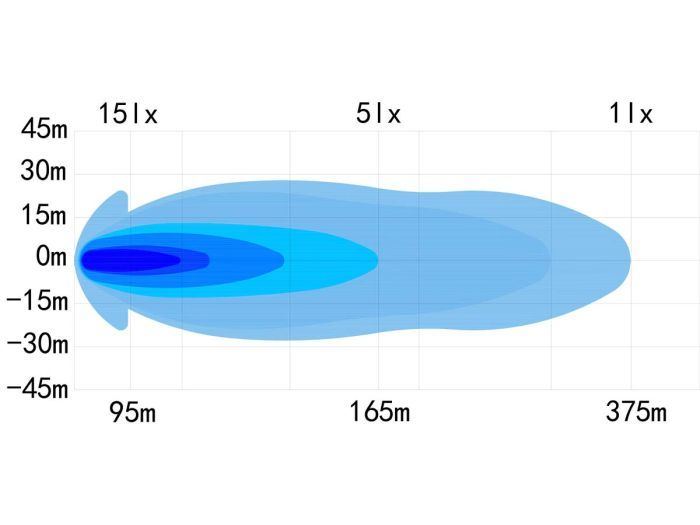

• Light output: 1 lux @ 375 m
• Color temperature: 5000 K
• IP rating: IP68 / IP69K
• Connector and cable: 4-pin DT cable, 1000 mm
• Reference number: 25
• Approvals: ECE R149 (R112), R148, R10

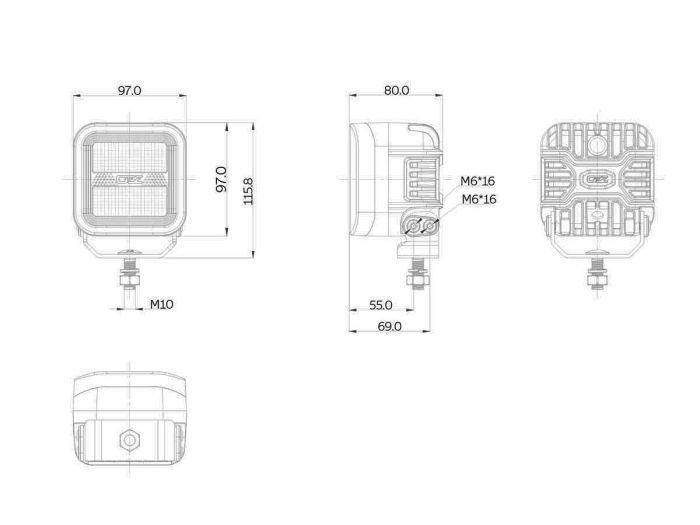

Dimensions:

• Height: 115.8 mm
• Width: 97 mm
• Depth: 50 mm
