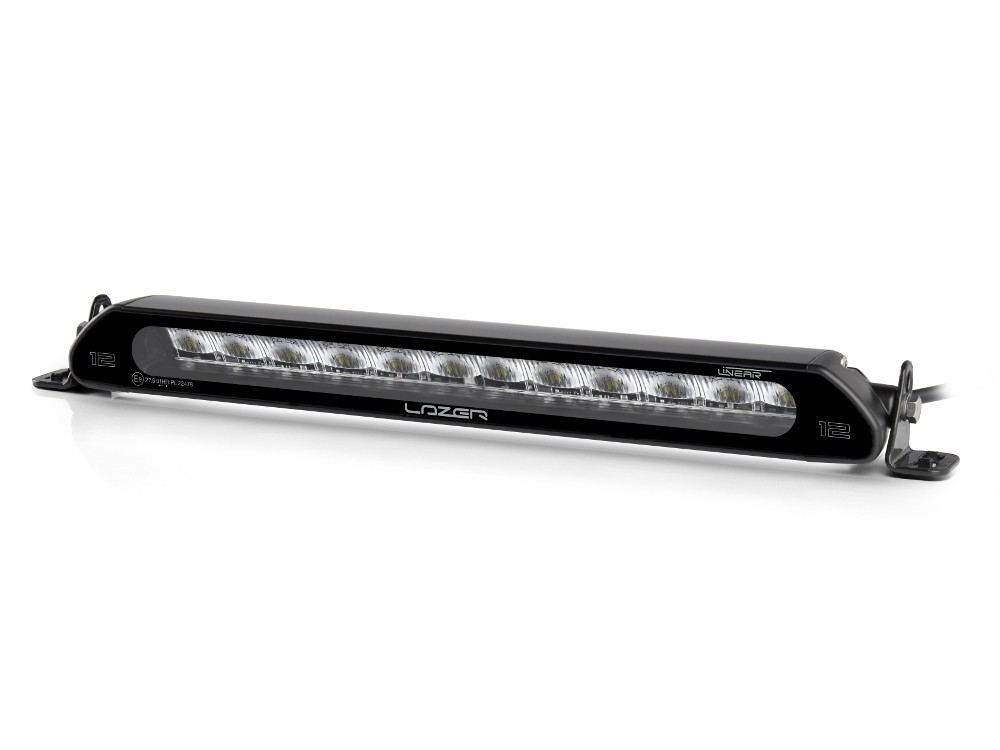

Lazer Linear 12 STD Auxiliary Light Bar

Description

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

Product features:

• Flexible mounting options – anti-theft side mounting brackets included
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
• UNECE approved Reg 10
• IP67 watertight
• 5 year warranty
• Designed and manufactured in UK

Technical Specifications:

• Voltage Range (DC): 10-32V
• Weight: 800 gr
• Total Luminous Flux: 4500 lm
• Colour Temperature: 5000k
• Number of High Output LEDs: 12
• Power Consumption:  42 W
• Current Draw (at 14.4V): 2.92  Amps
• IP67 watertight
• 5-year warranty

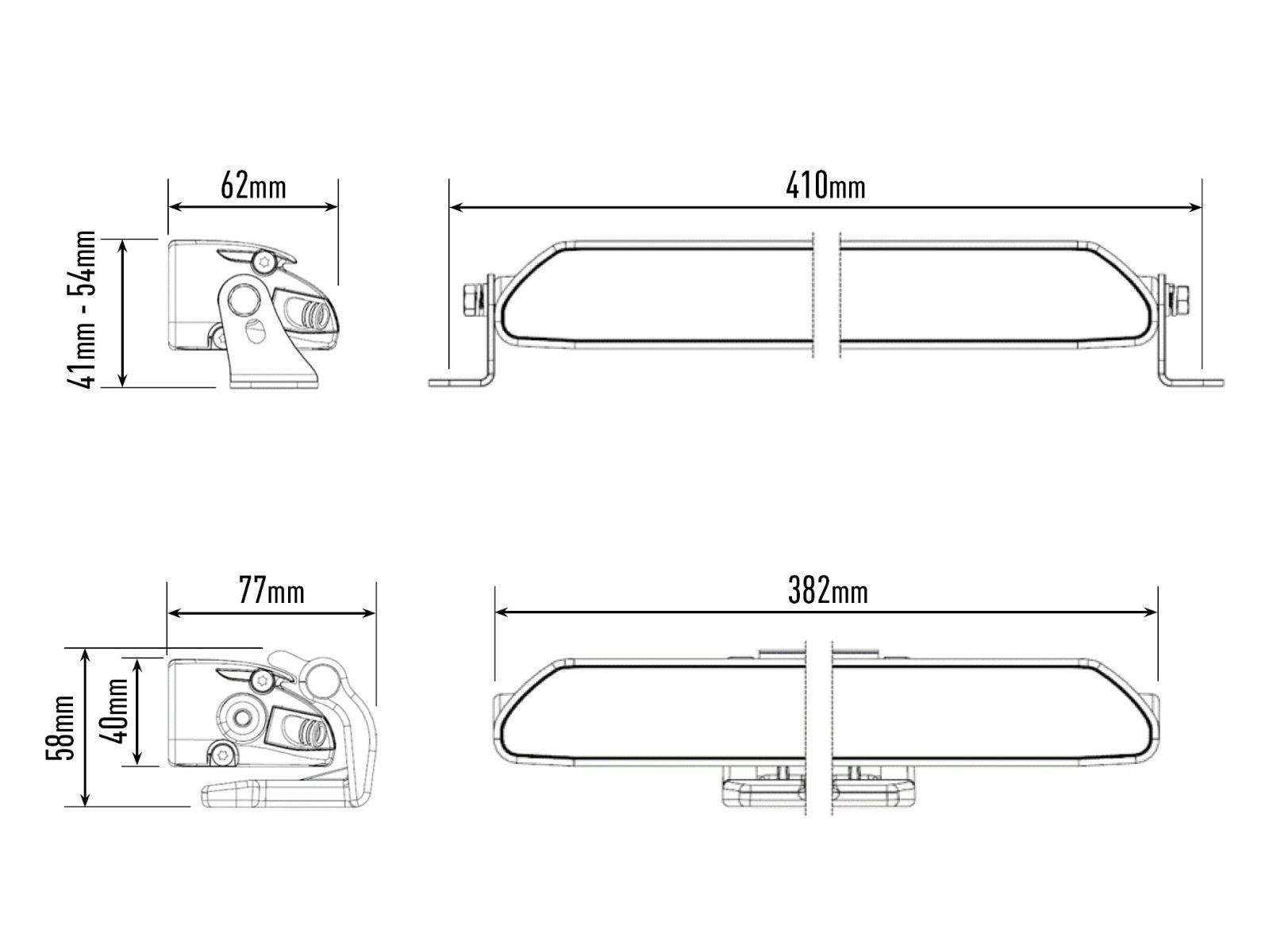

DIMENSIONS:

• Width: 382 mm
• Depth: 62 mm
• Height: 40 mm

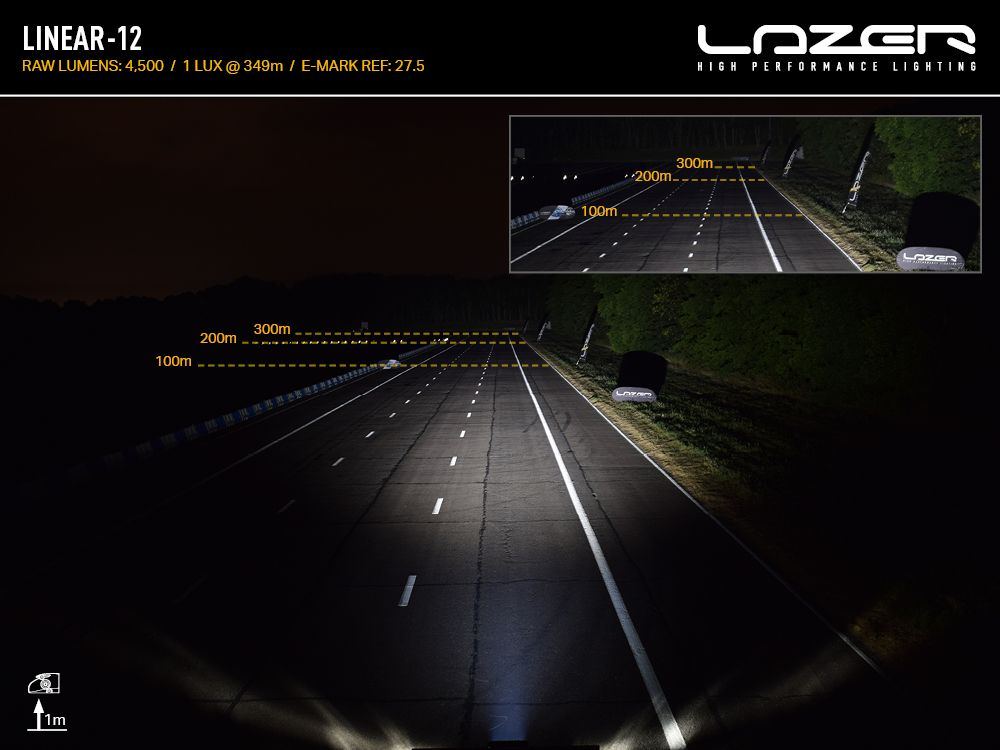

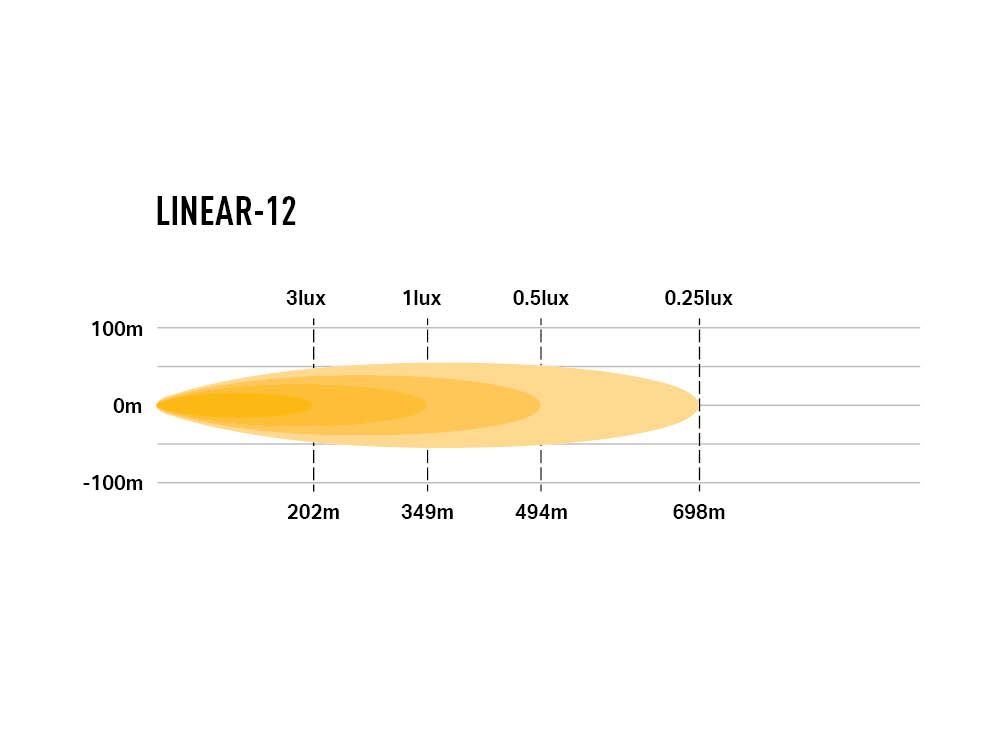

PHOTOMETRIC DATA:

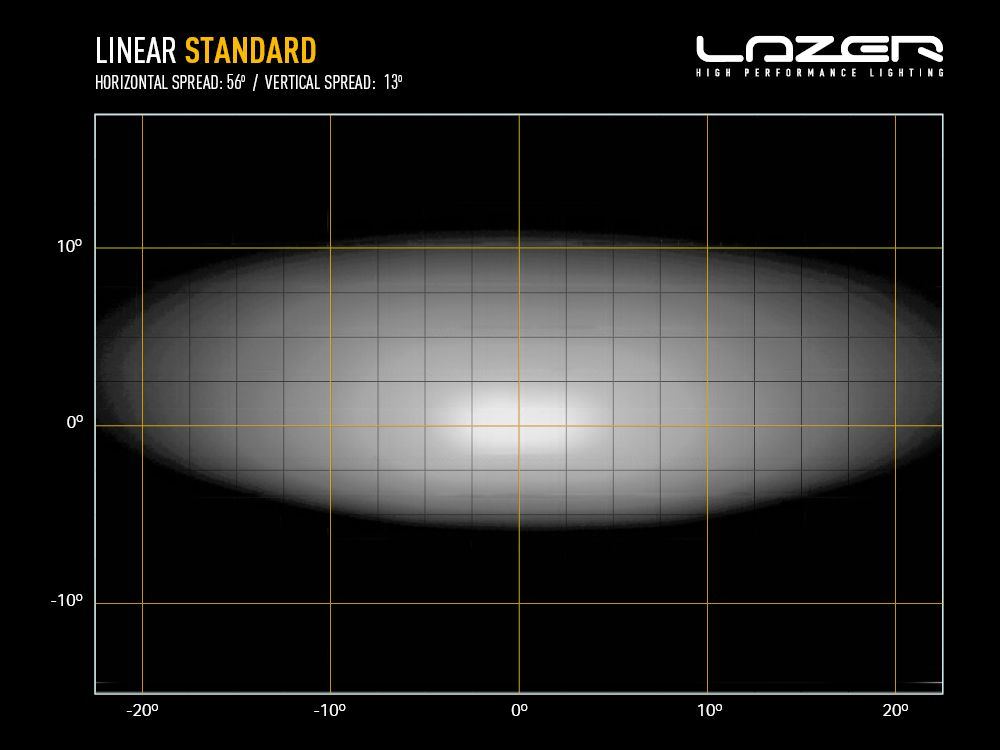

• Horizontal Beam Angle: 56 Deg
• 0.25 lx Line: 698 m
• 0.5 lx Line:  494 m
• 1 lx Line:  349 m
• 3 lx Line: 202 m

CERTIFICATION:

• High Beam: ECE R112
• ECE Reference: 27.5

Whats included:

• Linear 12 STD LED Lamp
• Side Mount
• Installation Instructions
• Supplied with pre-wired male/female 2-pin Superseal connectors
