OZZ SQR 3″ Work Light

Description

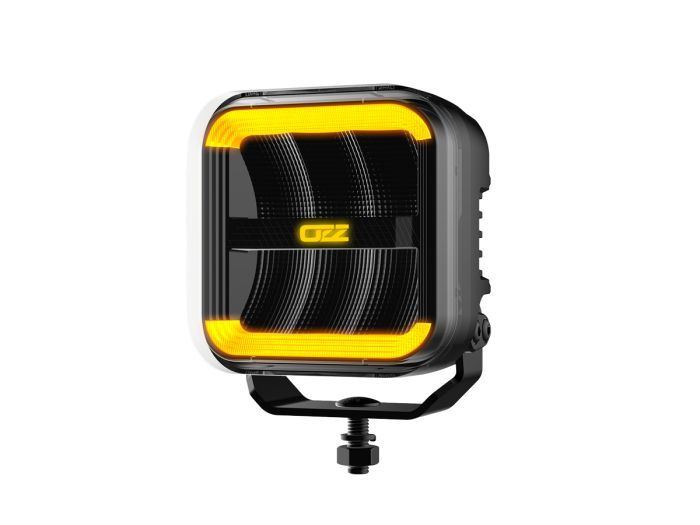

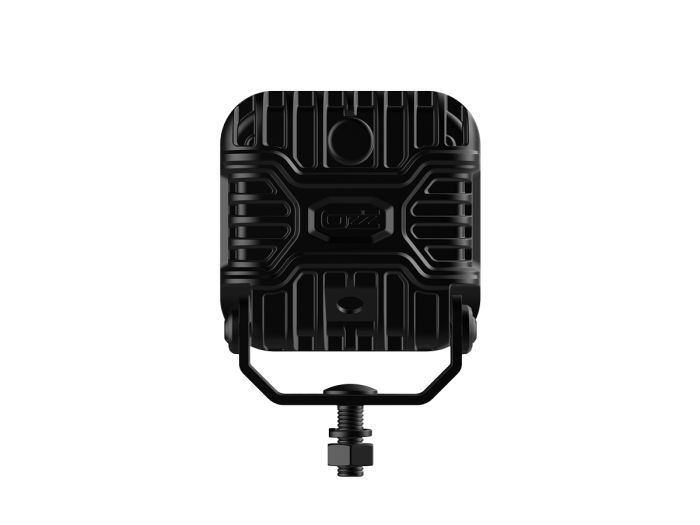

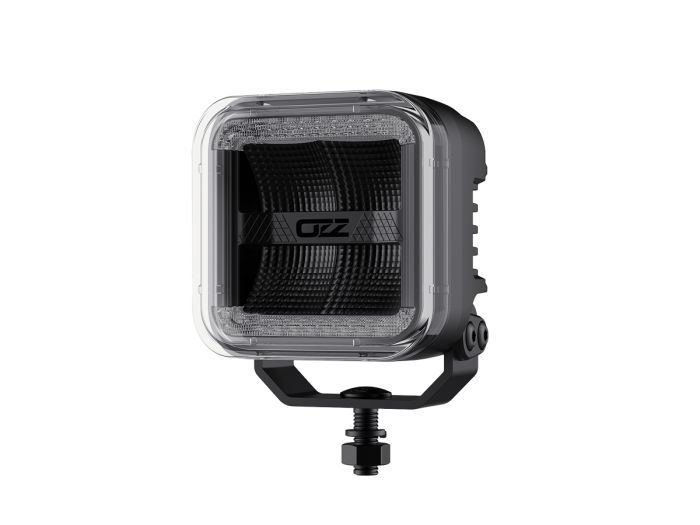

OZZ SQR 3″ Work Light

The OZZ SQR 3’’ work light is the next step in the evolution of the SQR series, combining the signature squared design with powerful performance in a compact and efficient light.

It provides bright and comfortable illumination that helps improve visibility in demanding work environments. The wide and even beam pattern makes it ideal for close-range tasks, job sites, machinery lighting, and general work-area illumination.

The SQR 3’’ also functions as a warning light, increasing visibility and safety during roadside operations, construction work, and other low-light situations. Its built-in flash function helps ensure that the vehicle or equipment is clearly seen when it matters most.

Key Features:

• Dual Function: Work & Warning Light
• 1 lux at 75 m
• E-approved
• Wide Flood Beam
• A new shape in lighting

Technical Specifications

• Voltage: 10-32V DC
• Functions: Work light, warning light
• Theoretical effect: 60 W
• Actual effect (W) 12V: 50 W
• Actual effect (W) 24V: 46,6 W
• Nominal current at 12 V: 4,18 A
• Nominal current at 24 V: 1,94 A
• Theoretical lumen (Lm): 4800
• Actual lumen (Lm): 3500
• Kelvin (K): 5000
• Beam pattern: Flood beam

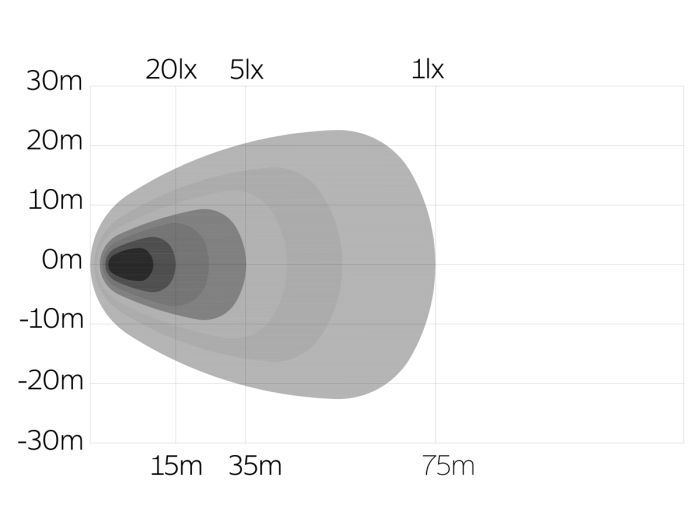

• 1 lux @ (m): 75 m
• Position light: White and amber
• Flash light patterns: Double flash
• IP-class (IP): IP68/IP69K
• Connection: 4-pin DT male + female
• Cable length: 1000 mm
• Material lens: Polycarbonate
• Material chassi: Aluminum
• Material bracket: Stainless steel

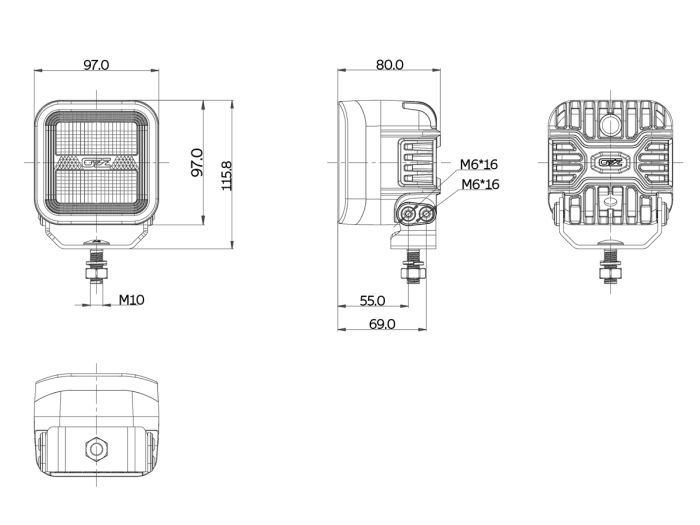

• LxDxH (mm): 97x50x97/115,81
• Operating temperature: -40°C – +60°C
• E-mark approval: ECE R23, R65 class 2
• EMC: ECE R10
• Ref. no.: 50
• Warranty: 3 years
